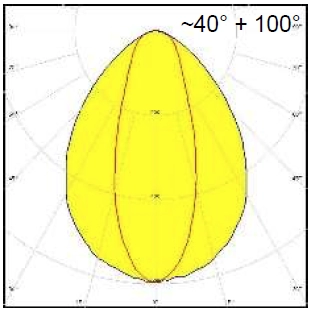

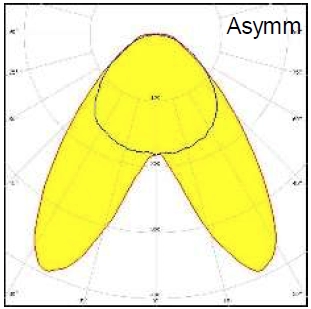

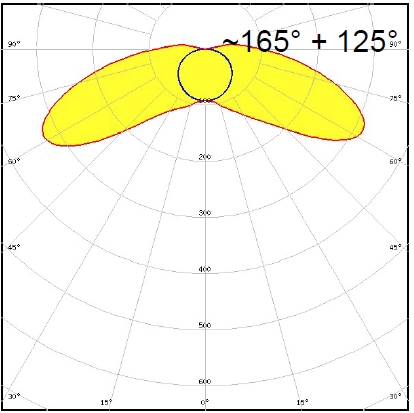

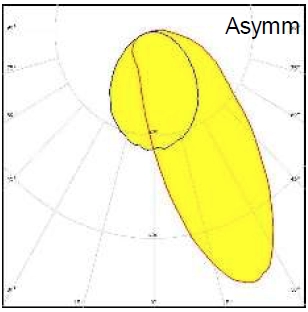

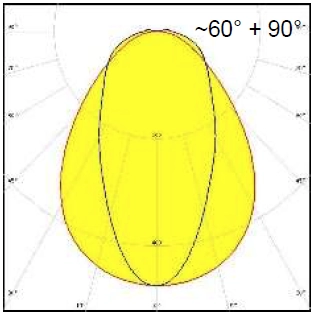

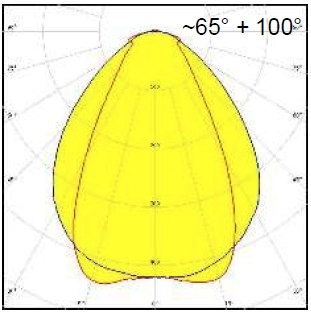

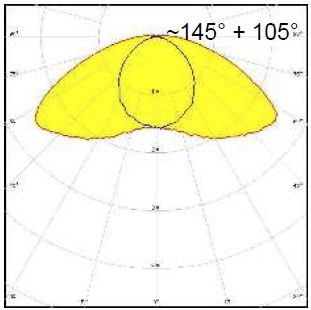

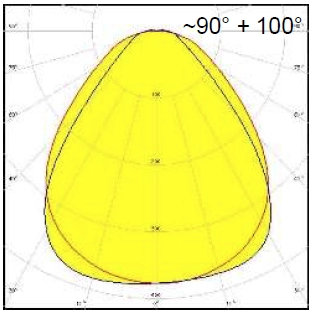

Optics by LEDiL LINDA-24linear lens
AL housing for better heat dissipation
Enhance 2835 LED inside

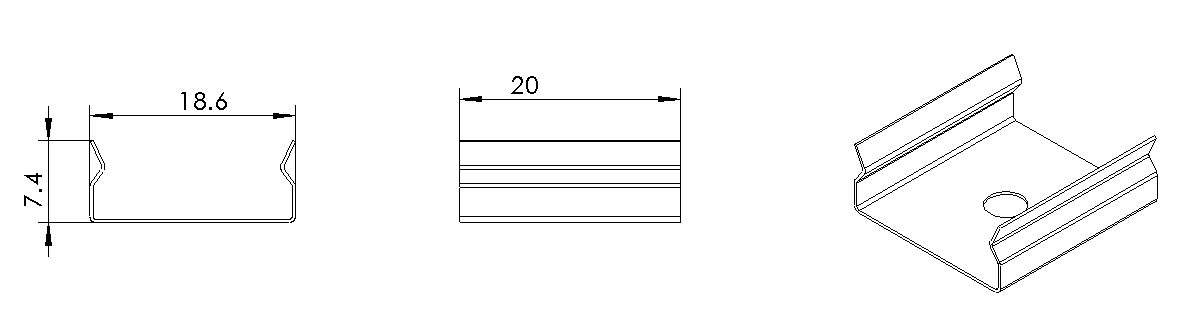

Hidden steel clips for installation
Standard length 1015mm
Max.36W/m, 100lm/W @4000K Ra80
Indoor linear lighting
Indoor wall washer
Industrial lighting
Retail lighting
Notes:
1.Unit: mm
2.Max. Length 3meters
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP20 |
| Item | PV2717L-LINDA24 |
| Supply voltage range | 24.0 ± 1.0 VDC |
| Supply Current range (per meter) | Typ. 1500mA |
| Power range (per meter) | Typ. 36W |
| ESD protection | Contact 4KV, Air 8KV |
| LED Qty | 140 LEDs/m |
| Cutting pitch | 50mm |
| Part No. | Colorimetric Parameters | Typ. Lumen (lm/m) | CRI | |
| Color | Value | |||
| PV2717L-LINDA24 | White | 6500K | 3600 | 80 |
| White | 4000K | 3600 | 80 | |
| White | 3000K | 3400 | 80 | |
| White | 2700K | 3200 | 80 | |
