Continue Linear lens
Enhance 2835 LED inside
AL base+ PMMA Lens
Max. 36W/ml
IP40 protection

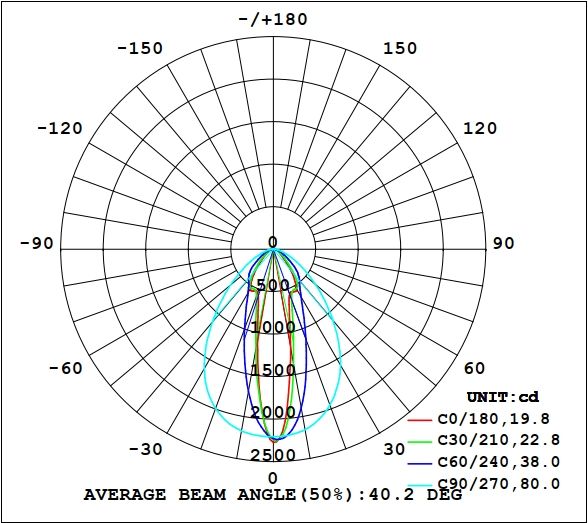

Beam angle 20°x80°
L70B50 > 50,000hrs
High class cove lighting
Indoor wall washer lighting
Notes:

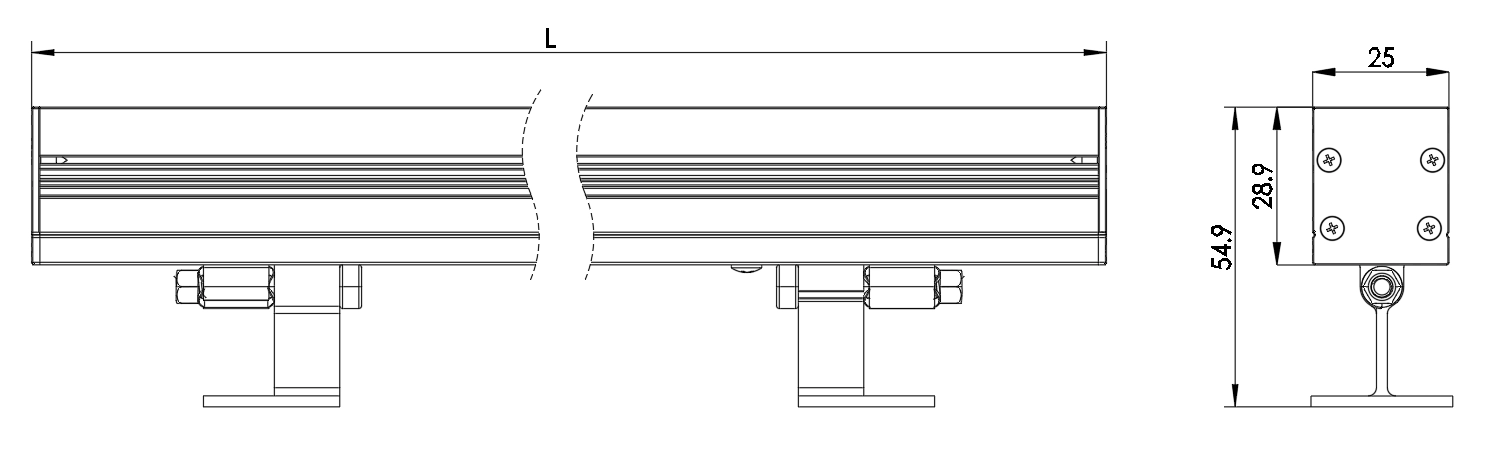

1.Unit: mm
2.L = Max. 3 meters for 24V products in standard configuration
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP40 |
| Item | NW2925L |
| Supply voltage range | 24.0 ± 1.0 VDC |
| Supply Current range (per meter) | Typ. 1500mA |
| Power range (per meter) | Typ. 36W |
| ESD protection | Contact 4KV, Air 8KV |
| LED Qty | 120 LEDs/m |
| Part No. | Colorimetric Parameters | Typ. Lumen (lm/m) | CRI | |
|---|---|---|---|---|
| Color | Value | |||
| NW2925L | White | 6500K | 2200 | 90 |
| White | 4000K | 2200 | 90 | |
| White | 3000K | 2100 | 90 | |
| White | 2700K | 2000 | 90 | |
