Enhanced 5050 LED inside
AL housing for better heat dissipation
Silicone diffuser for better uniformity
Max. 24W/M
L70B50 > 50,000hrs

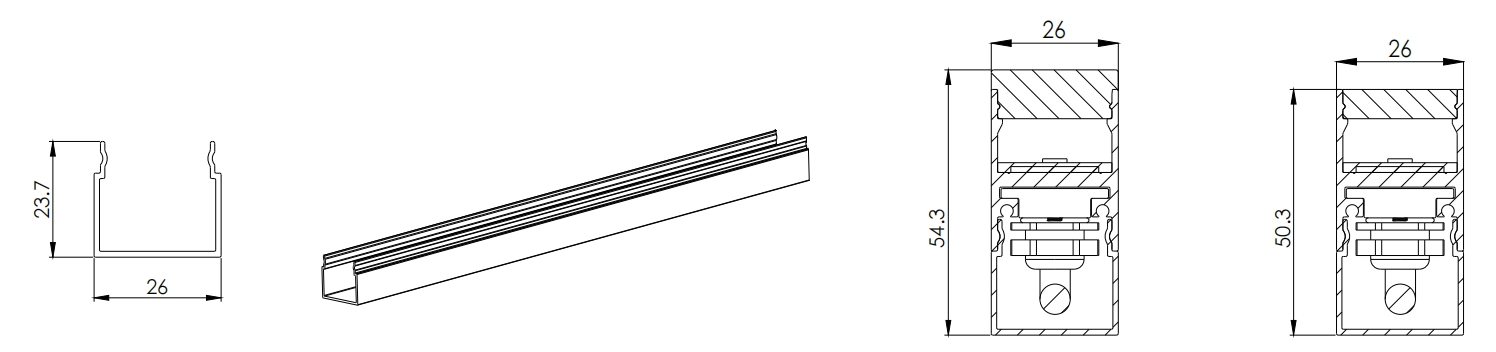

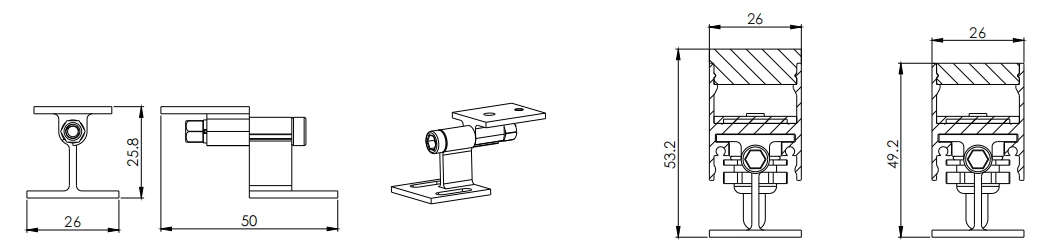

Easy installation accessories
Building and sign outline lighting
Building facade lighting
Notes:

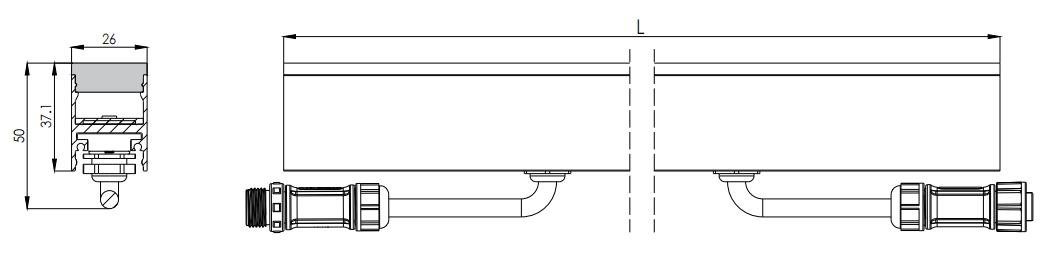

1.Unit: mm
2.Weight: 900g/m
Notes:

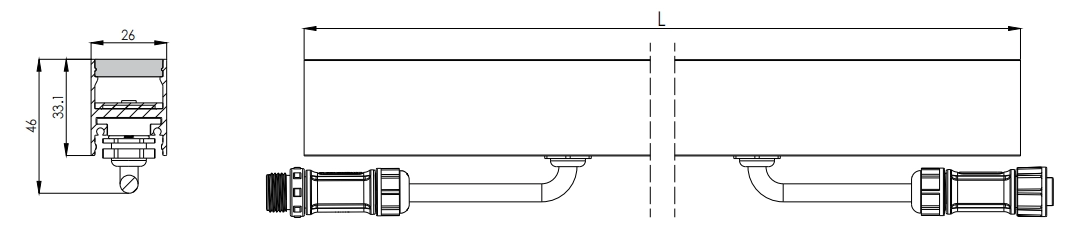

1.Unit: mm
2.Weight: 1000g/m
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP66 |
| Item | White | RGB | DMX RGB | RGBW | DMX RGBW |
| Supply voltage range (Vdc) | 24 ± 1 | 24 ± 1 | 24 ± 1 | 24 ± 1 | 24 ± 1 |
| Typ. Power per meter (W) | 24 | 24 | 24 | 24 | 24 |
| Power range per meter(W) | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 |
| ESD protection | Contact 4KV, Air 8KV | ||||
| Max. length for single end power-in(m) | 5 | 5 | 5 | 5 | 5 |
| Max. length for two ends power-in (m) | 10 | 10 | 10 | 10 | 10 |
| LED qty per meter (pcs) | 84 | 84 | 84 | 84 | 84 |
| Pixel per meter | / | / | 12 | / | 12 |
| IC Type | / | / | SM18522 | / | SM18522 |
| PV5025L-T | ||||||
| Part No. | Colorimetric Parameters | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |||
| Color | Value | Value range | CRI | |||
| Single White | White | 6500K | 6000~7000K | >80 | 987 | 41 |
| White | 5000K | 4800~5300K | >80 | 987 | 41 | |
| White | 4000K | 3800~4150K | >80 | 987 | 41 | |
| White | 3000K | 2950~3150K | >80 | 940 | 39 | |
| White | 2700K | 2650~2850K | >80 | 893 | 37 | |
| White | 6500K | 6000~7000K | >90 | 839 | 35 | |
| White | 5000K | 4800~5300K | >90 | 839 | 35 | |
| White | 4000K | 3800~4150K | >90 | 839 | 35 | |
| White | 3000K | 2950~3150K | >90 | 799 | 33 | |
| White | 2700K | 2650~2850K | >90 | 759 | 32 | |
| RGB | Red | 622.5nm | 620~630nm | / | 104 | 13 |
| Green | 525nm | 520~530nm | / | 247 | 31 | |
| Blue | 467.5nm | 465~475nm | / | 58 | 7 | |
| All on | / | / | / | 408 | 17 | |
| DMX RGB | Red | 622.5nm | 620~630nm | / | 86 | 8 |
| Green | 525nm | 520~530nm | / | 207 | 21 | |
| Blue | 467.5nm | 465~475nm | / | 48 | 5 | |
| All on | / | / | / | 342 | 14 | |
| RGBW | Red | 622.5nm | 620~630nm | / | 77 | 13 |
| Green | 525nm | 520~530nm | / | 184 | 31 | |
| Blue | 467.5nm | 465~475nm | / | 44 | 7 | |
| White | 3000K | 2950~3150K | >80 | 237 | 39 | |
| All on | / | / | / | 542 | 23 | |
| DMX RGBW | Red | 622.5nm | 620~630nm | / | 69 | 8 |
| Green | 525nm | 520~530nm | / | 167 | 20 | |
| Blue | 467.5nm | 465~475nm | / | 39 | 5 | |
| White | 3000K | 2950~3150K | >80 | 213 | 24 | |
| All on | / | / | / | 488 | 21 | |
| PV5025L-A | ||||||
| Part No. | Colorimetric Parameters | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |||
| Color | Value | Value range | CRI | |||
| Single White | White | 6500K | 6000~7000K | >80 | 714 | 30 |
| White | 5000K | 4800~5300K | >80 | 714 | 30 | |
| White | 4000K | 3800~4150K | >80 | 714 | 30 | |
| White | 3000K | 2950~3150K | >80 | 680 | 28 | |
| White | 2700K | 2650~2850K | >80 | 646 | 27 | |
| White | 6500K | 6000~7000K | >90 | 607 | 25 | |
| White | 5000K | 4800~5300K | >90 | 607 | 25 | |
| White | 4000K | 3800~4150K | >90 | 607 | 25 | |
| White | 3000K | 2950~3150K | >90 | 578 | 24 | |
| White | 2700K | 2650~2850K | >90 | 549 | 23 | |
| RGB | Red | 622.5nm | 620~630nm | / | 75 | 9 |
| Green | 525nm | 520~530nm | / | 178 | 22 | |
| Blue | 467.5nm | 465~475nm | / | 41 | 6 | |
| All on | / | / | / | 294 | 13 | |
| DMX RGB | Red | 622.5nm | 620~630nm | / | 63 | 6 |
| Green | 525nm | 520~530nm | / | 150 | 15 | |
| Blue | 467.5nm | 465~475nm | / | 35 | 3 | |
| All on | / | / | / | 247 | 10 | |
| RGBW | Red | 622.5nm | 620~630nm | / | 56 | 9 |
| Green | 525nm | 520~530nm | / | 135 | 23 | |
| Blue | 467.5nm | 465~475nm | / | 32 | 6 | |
| White | 3000K | 2950~3150K | >80 | 173 | 29 | |
| All on | / | / | / | 396 | 16 | |
| DMX RGBW | Red | 622.5nm | 620~630nm | / | 49 | 6 |
| Green | 525nm | 520~530nm | / | 118 | 14 | |
| Blue | 467.5nm | 465~475nm | / | 28 | 3 | |
| White | 3000K | 2950~3150K | >80 | 153 | 17 | |
| All on | / | / | / | 348 | 15 | |
