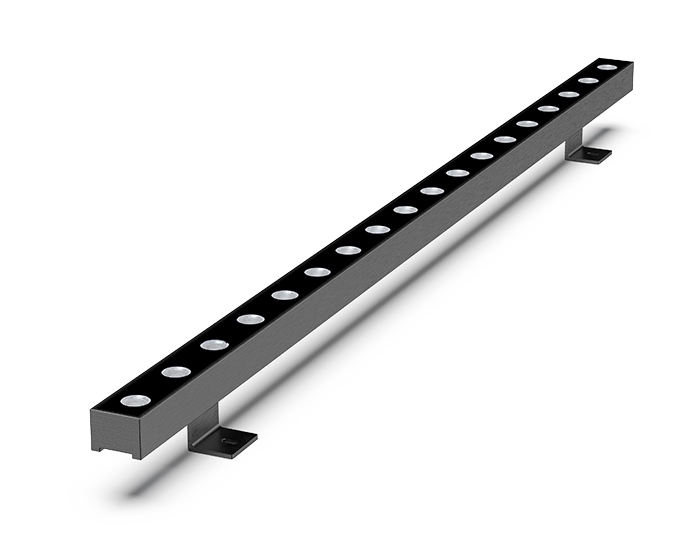

NW3633L LED Linear Wall Washer
NW3633L LED Linear Wall Washer

NW3633L LED Linear Wall Washer

AL 6063 extrusion housing with powder coating,PMMA Lens for better efficiency,OSRAM LED inside,UV and yellowish resistant,IP66 and salt-mist proof,L70B50 > 50,000hrs,On/off PWM compatible,
Online consultation Download

Feature

AL 6063 extrusion housing with powder coating

PMMA Lens for better efficiency

OSRAM LED inside

UV and yellowish resistant

IP66 and salt-mist proof

L70B50 > 50,000hrs

On/off PWM compatible

Optional beam angles:  15×45°，20×45 °，8°，10 °，15 °，20°，30 °，45°，60°

Application

Outdoor and indoor wall washer lighting

Façade lighting

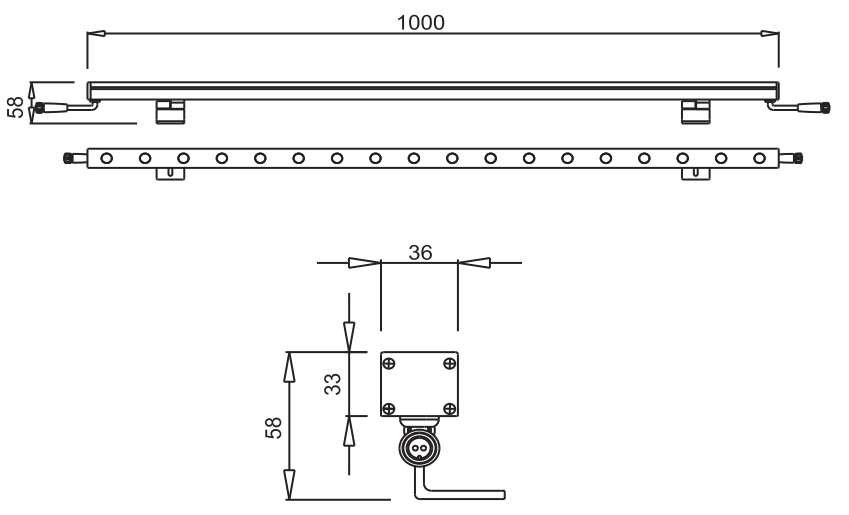

Dimensions and Weight

Dimensions and Weight

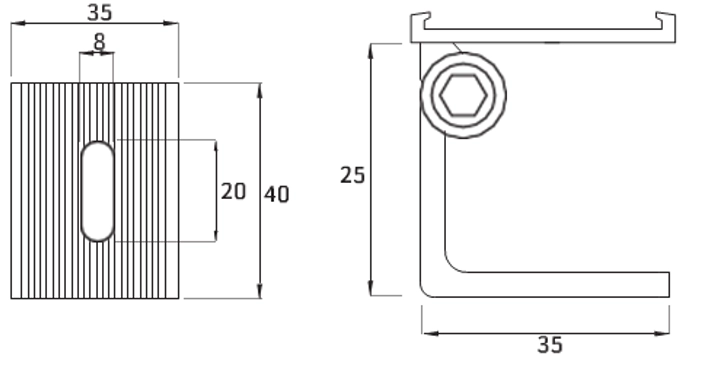

Dimension of Bracke

Dimensions and Weight

Notes:

1.Unit: mm

Environmental and Application Conditions

Ambient temperature range (Ta on free air)-20℃ ~ +45℃
Operating (case) temperature range (Tc)-20℃ ~ +85℃
Storage temperature range-40℃ ~ +85℃
IP ratingIP66

Electrical parameters

ItemWorking MethodTypical Voltage (V)Typical Current (A)Typical Power (W)LED QtyMax Length for single feed (m)
NW3633L-18WON/OFF24VDC0.7518187
NW3633L-24WON/OFF24VDC124246
NW3633L-36WON/OFF24VDC1.536364
NW3633L-DMX-White-24WDMX512 4 pixel/m24VDC124246
NW3633L-DMX-RGB-24WDMX512 4 pixel/m24VDC0.7524246
NW3633L-DMX-RGB-36WDMX512 4 pixel/m24VDC126244
NW3633L-DMX-RGBW-24WDMX512 4 pixel/m24VDC0.7524246
NW3633L-DMX-RGBW-36WDMX512 4 pixel/m24VDC126244

Optical parameters (ta=25℃)

ItemColorValueTyp. Lumen (lm/m)CRI
NW3633L-18WWhite2700K180080
White3000K190880
White4000K196280
White5000K196280
NW3633L-24WWhite2700K240080
White3000K254480
White4000K261680
White5000K261680
NW3633L-36WWhite2700K360080
White3000K381680
White4000K392480
White5000K392480
NW3633L-DMX-White-24WWhite2700K216080
White3000K228980
White4000K235080
White5000K235080
NW3633L-DMX-RGB-24WR622nm151NA
G520nm267NA
B465nm61.5NA
NW3633L-DMX-RGB-36WR622nm226.5NA
G520nm400NA
B465nm92NA
NW3633L-DMX-RGBW-24WWhite3000K/4000K30080
R622nm114NA
G520nm200NA
B465nm46NA
NW3633L-DMX-RGBW-36WWhite3000K/4000K45080
R622nm170NA
G520nm300NA
B465nm70NA

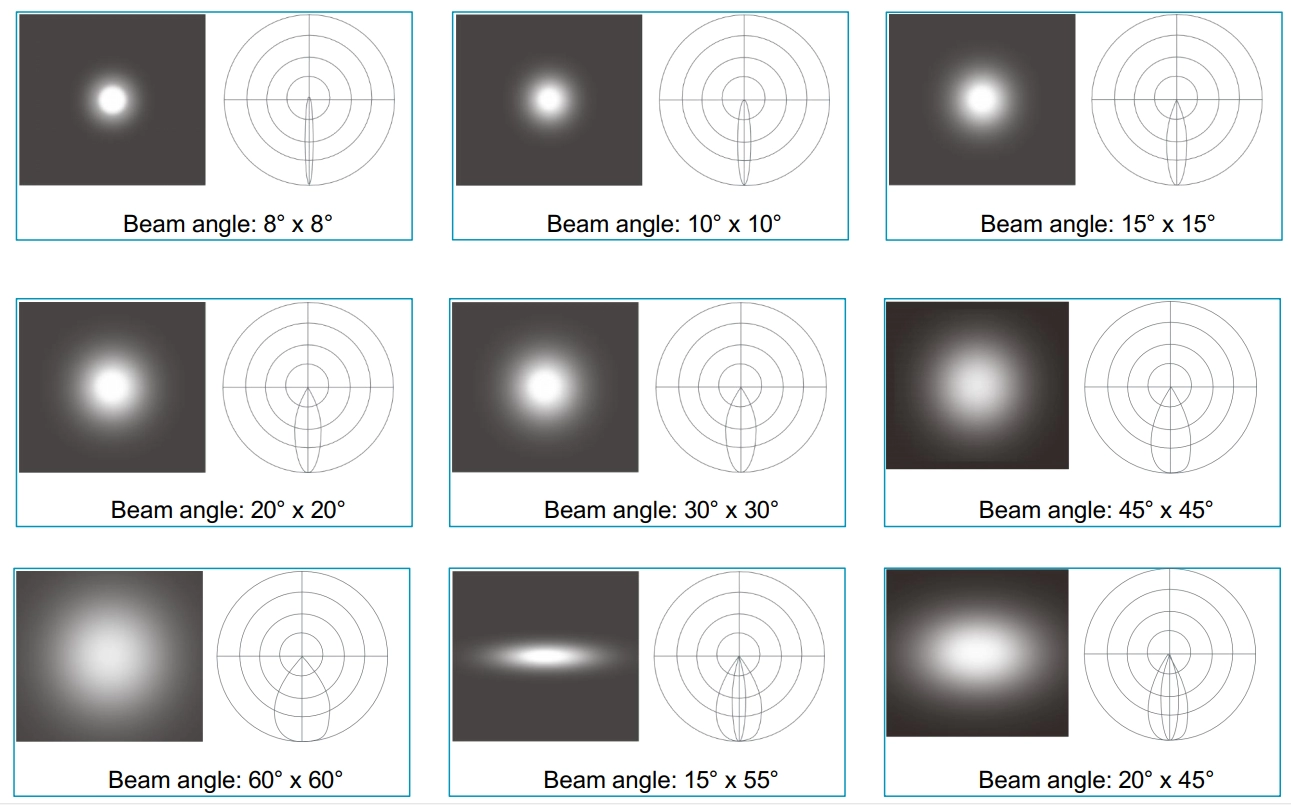

Optional Beam angles:

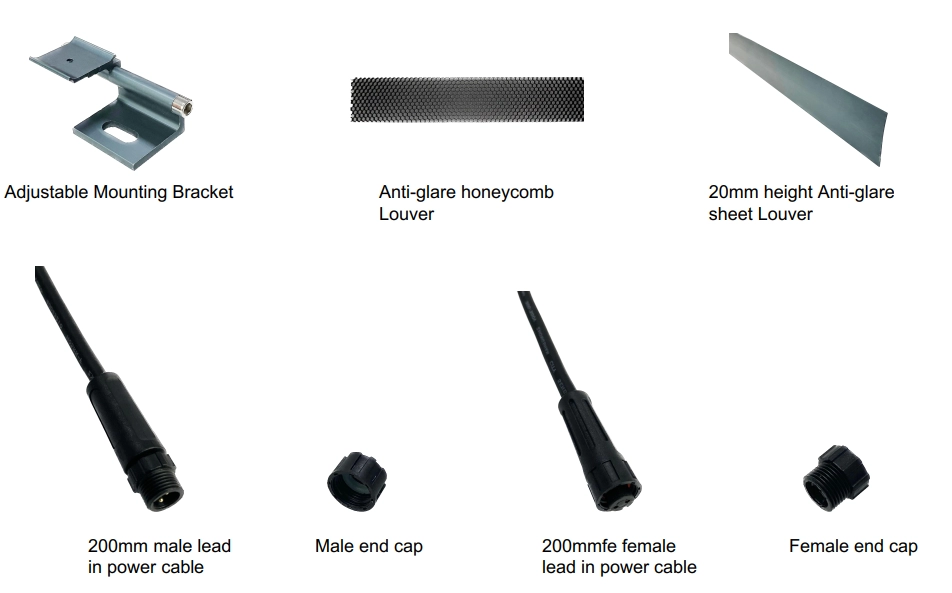

Installation accessories

Wire connection

Single color connection: Brown DC24V+, Blue DC24V-
Single color connection: Brown DC24V+, Blue DC24V-

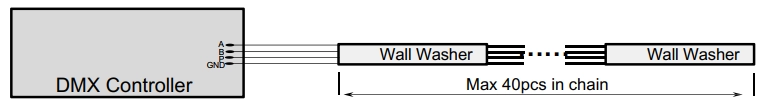

DMX512 connection: Red DC24V+, Black DC24V-, Yellow A/D+, Blue B/D-, Green P
DMX512 connection: Red DC24V+, Black DC24V-, Yellow A/D+, Blue B/D-, Green P

Related Products

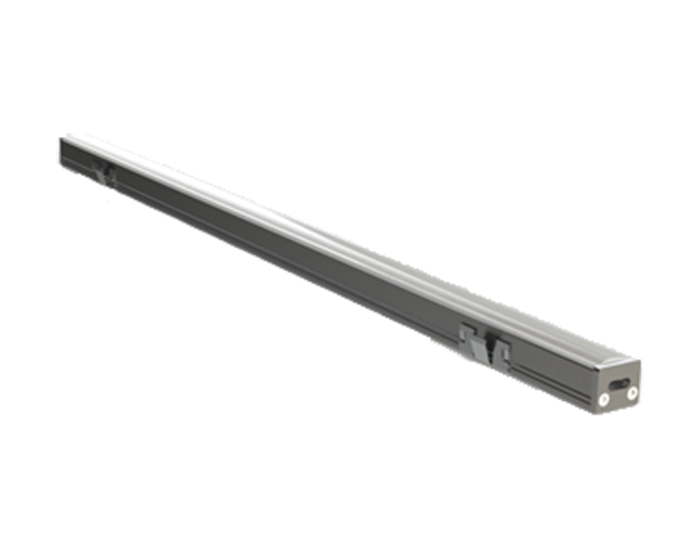

PV1311L-LINDA 10 The Reliable LED rigid light bar

PV1311L-LINDA 10 The Reliable LED rigid light bar
Show product →

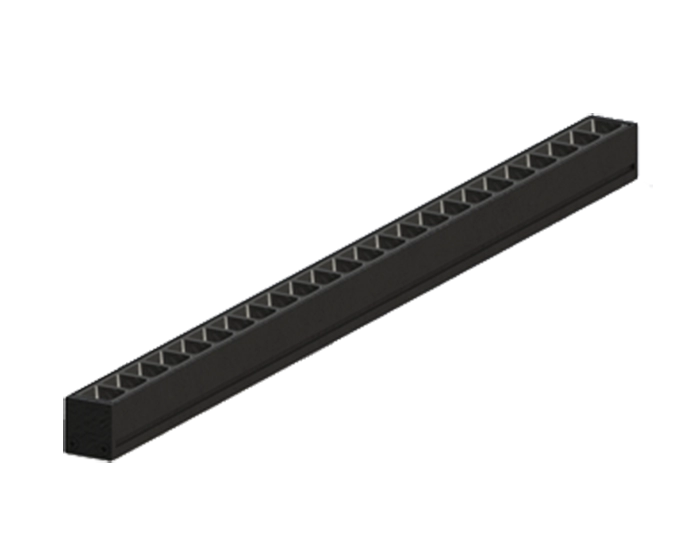

PV1516L-DALINE 10 The Reliable LED rigid light bar

PV1516L-DALINE 10 The Reliable LED rigid light bar
Show product →

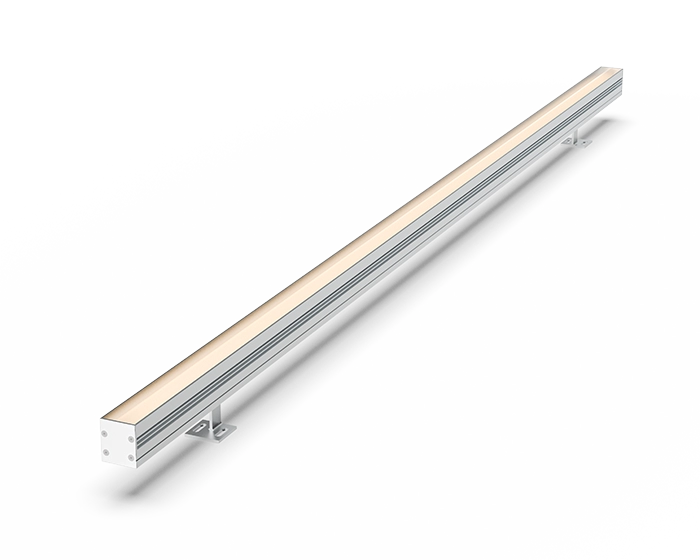

NW2925L LED Wall Washer

NW2925L LED Wall Washer
Show product →

PV5045L The reliable LED linear neon solution

PV5045L The reliable LED linear neon solution
Show product →

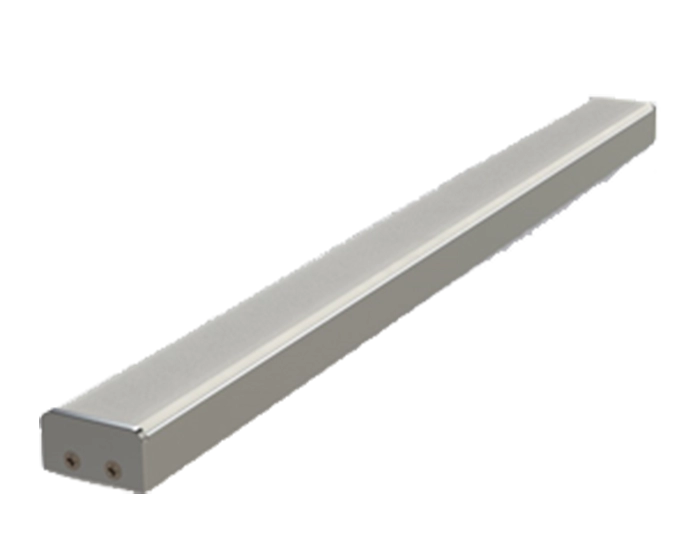

PV2717L-LINDA24 The Reliable LED rigid light bar
