Optics by LEDiL LIANNA lens
AL housing for better heat dissipation
Enhance 3030 LED inside
Steel clips for installation
Standard length 285mm/pcs
Max.20W/pcs, 120lm/W @4000K Ra80
IP65 optional
Indoor linear lighting
Retail lighting
Industrial lighting
Low-bay applications
Halls lighting

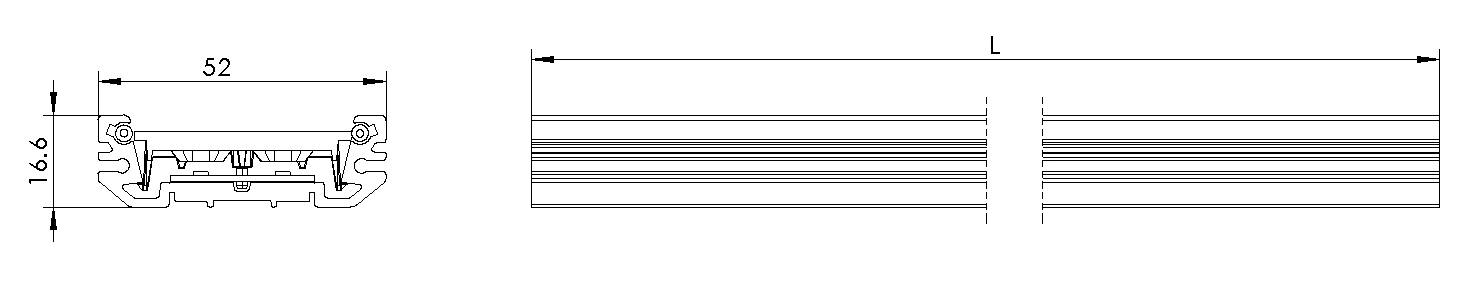

Notes:
1.Unit: mm
2.L=285mm or 565mm or 845mm or 1125mm or 1405mm or 1685mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP20 |
| Item | PV5520L-LIANNA-CV | PV5520L-LIANNA-CC |
| Power supply model | Constant voltage | Constant current |
| Supply voltage range per ft | 24.0 ± 1.0 VDC | 30~38 VDC |
| Supply Current range per ft | Typ. 833mA | 600mA |
| Power range per ft | Typ. 20W | Typ. 20W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| LED Qty per ft | 36 LEDs | 36 LEDs |
| Part No. | Colorimetric Parameters | Typ. Lumen (lm/ft) | CRI | |
| Color | Value | |||
| PV5520L-LIANNA-CV | White | 6500K | 1700 | 80 |
| White | 4000K | 1700 | 80 | |
| White | 3000K | 1615 | 80 | |
| White | 2700K | 1535 | 80 | |
| PV5520L-LIANNA-CC | White | 6500K | 2400 | 80 |
| White | 4000K | 2400 | 80 | |
| White | 3000K | 2280 | 80 | |
| White | 2700K | 2165 | 80 | |
