Top bending and top lighting product
Enhance 3535 4-in 1 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 15 cm
Complex Curved Surfaces wall washer
Lighting engine for special linear luminaries
Building wall washer
Exhibition halls
Entertainment plazas and bridges.
Big lighting box side lighting

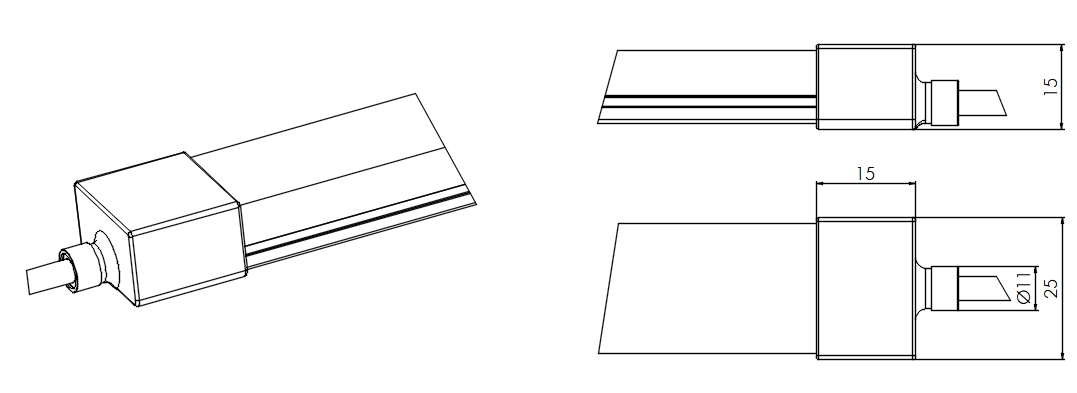

Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NW2414T-24V |
|---|---|
| Supply voltage range | 24.0 ± 1.0 VDC |
| Supply Current range (per meter) | Typ. 833mA |
| Power range (per meter) | Typ. 20W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters |
| Max. length for two ends power-in | 10 meters |
| LED Qty and pitch | 24 LEDs/m, P: 41.67mm |
| Cutting unit length | 125mm (3 LEDs) |
| Part No. | Colorimetric Parameters | Typ. Lumen | Total Lumen | |
|---|---|---|---|---|
| Color | Value | |||
| NW2414T | White | 5000K | 1800lm/m | 80 |
| White | 4000K | 1700lm/m | 80 | |
| White | 3000K | 1610lm/m | 80 | |
| White | 2700K | 1610lm/m | 80 | |
| Red | 620~625nm | TBD | / | |
| Green | 520~525nm | TBD | / | |
| Blue | 465~470nm | TBD | / | |
