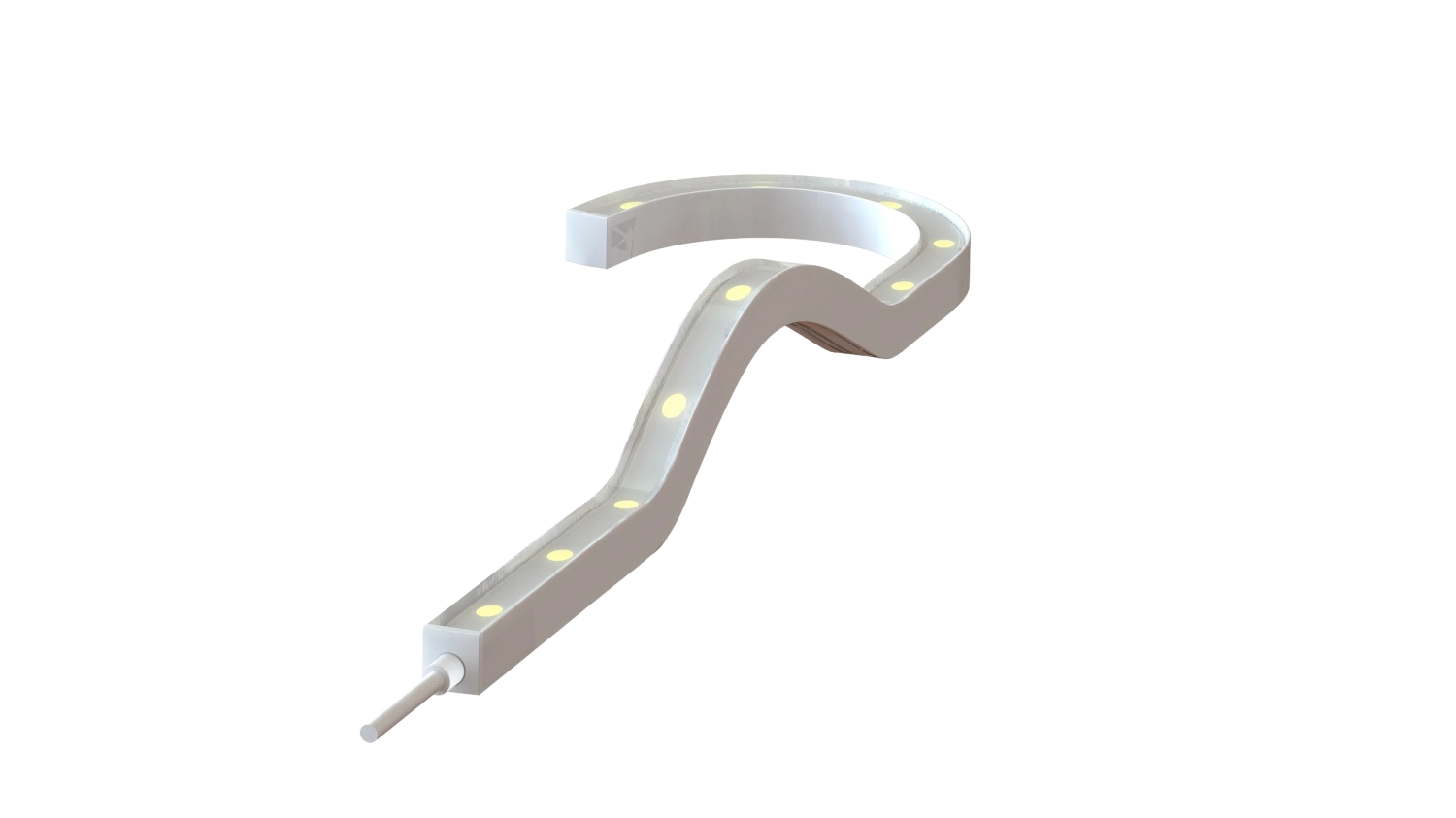

3D bending and top lighting product
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
Min. top bending radius 10 cm
Min. side bending radius 25cm

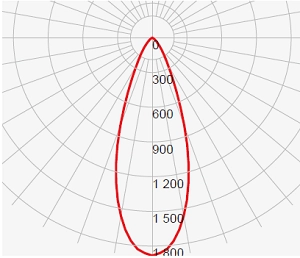

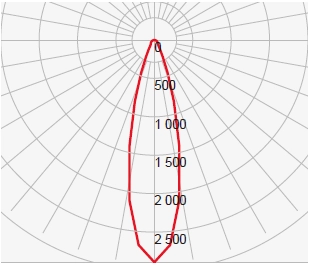

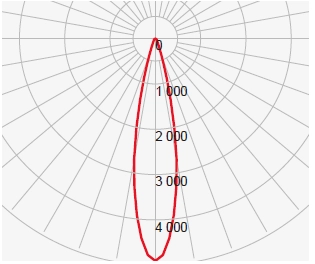

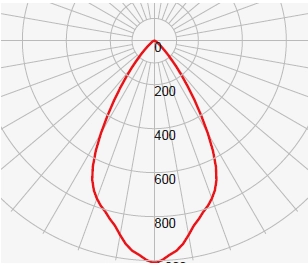

Beam angles 15°,20°，25°，38°,60°,20°X40°optional
Lighting engine for special linear luminaries
Building wall washer
Exhibition halls
Entertainment plazas and bridges.
Big lighting box side lighting
Notes:

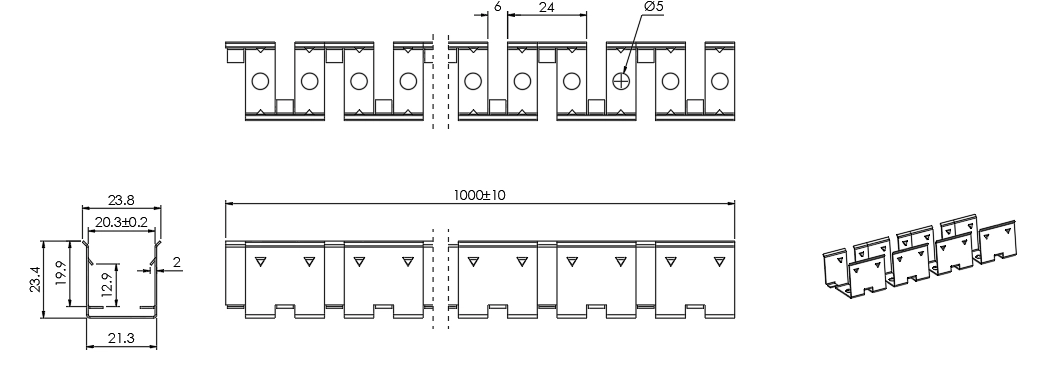

1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NW2020TS-White | NW2020TS-RGBW | NW2020TS-SPI-RGBW |
|---|---|---|---|
| Supply voltage range | 24.0±1.0 VDC | 24.0±1.0 VDC | 24.0±1.0 VDC |
| Typ. Power (per meter) | Typ.18W | Typ.23W | Typ.23 |
| Power range (per meter) | 16.2~19.8W | 20.7~25.3 W | 20.7~25.3 W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters | 5 meters | 5 meters |
| Max. length for two ends power-in | 10 meters | 10 meters | 10 meters |
| LED qty | 24 LEDs/m | 24 LEDs/m | 24 LEDs/m |
| Cutting unit length | 250mm | 250mm | 250mm |
| Pixel per meter | / | / | 4 |
| IC Type | / | / | UCS8904 |
| Part No. | Colorimetric Parameters | CRI | Typ. Flux (lm/m) | Min Efficacy (lm/W) | ||
|---|---|---|---|---|---|---|
| Color | Value | Value range | ||||
| NW2020TS-White | White | 5000K | 4800~5300K | 80 | 1200 | / |
| White | 4000K | 3800~4150K | 80 | 1200 | / | |
| White | 3500K | 3350~3600K | 80 | 1150 | / | |
| White | 3000K | 2950~3150K | 80 | 1150 | / | |
| White | 2700K | 2650~2850K | 80 | 1090 | / | |
| NW2020TS-RGBW | Red | 625nm | 620~630nm | / | 170 | 1080 |
| Green | 525nm | 520~530nm | / | 460 | ||
| Blue | 465nm | 460~475nm | / | 145 | ||
| White | 3000K@Ra80 | 2950~3150K | / | 335 | ||
| NW2020TS-SPI-RGBW | Red | 625nm | 620~630nm | / | 165 | 1040 |
| Green | 525nm | 520~530nm | / | 450 | ||
| Blue | 465nm | 460~475nm | / | 140 | ||
| White | 3000K@Ra80 | 2950~3150K | / | 325 | ||
End feed
Bottom feed
Side feed
