Top bending and top lighting product
Enhanced 5050 LED inside
Dual-color silicone extrusion
Continue linear silicone lens
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
Min. bending radius 15 cm

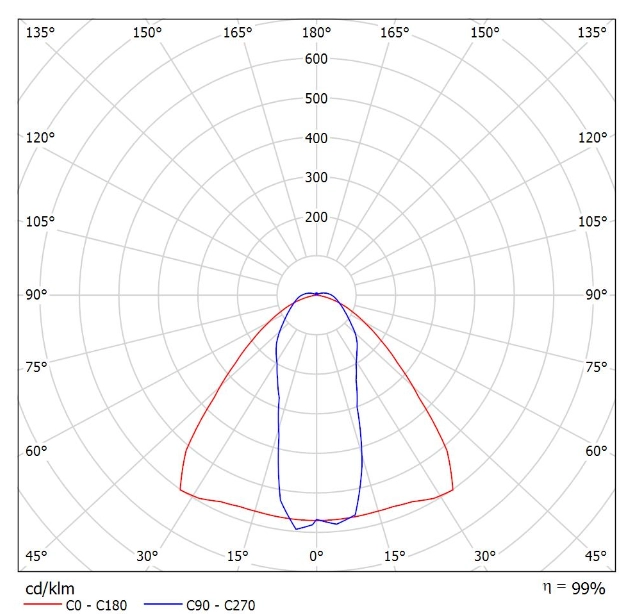

Beam angles 30*100°
Indoor damp condition wall washer lighting
Building wall washer
Exhibition halls
Entertainment plazas and bridges.
Big lighting box side lighting
Notes:
1.Unit: mm
2.Weight: 360g/m
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NW2421T-17.8W | NW2421T-14.2W | NW2421T-10W |
|---|---|---|---|
| Supply voltage range (Vdc) | 24.0±1.0 | 24.0±1.0 | 24.0±1.0 |
| Typ. Power per meter (W) | 17.8 | 14.2 | 10 |
| Power range per meter (W) | 16~19.5 | 12.8~15.6 | 9~11 |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in (m) | 5 | 5 | 5 |
| Max. length for two ends power-in (m) | 10 | 10 | 10 |
| LED qty per pixel (pcs) | 7 | 8 | 24 |
| Cutting unit length (mm) | 100 | 125 | 280 |
| Length per pixel (mm) | 100 | 125 | 280 |
| IC Type | SM18522 | SM18522 | SM18522 |
| Part No. | Colorimetric Parameters | Min Flux (lm/m) | Typ. Flux (lm/m) | Min Efficacy (lm/W) | Typ. Efficacy (lm/W) | |||
|---|---|---|---|---|---|---|---|---|
| Color | Value | Value range | CRI | |||||
| NW2412T-17.8W | Red | 622.5nm | 620~630nm | / | 99 | 110 | 17 | 19 |
| Green | 525nm | 520~530nm | / | 281 | 312 | 49 | 54 | |
| Blue | 467.5nm | 465~475nm | / | 63 | 70 | 11 | 12 | |
| White | 3000K | 2950~3150K | >80 | 295 | 328 | 51 | 57 | |
| All on | / | / | / | 738 | 820 | 42 | 46 | |
| NW2412T-14.2W | Red | 622.5nm | 620~630nm | / | 57 | 63 | 12 | 14 |
| Green | 525nm | 520~530nm | / | 160 | 178 | 35 | 39 | |
| Blue | 467.5nm | 465~475nm | / | 36 | 40 | 8 | 9 | |
| White | 3000K | 2950~3150K | >80 | 169 | 188 | 37 | 41 | |
| All on | / | / | / | 422 | 469 | 30 | 33 | |
| NW2421T-10W | Red | 622.5nm | 620~630nm | / | 50 | 56 | 16 | 18 |
| Green | 525nm | 520~530nm | / | 145 | 161 | 46 | 51 | |
| Blue | 467.5nm | 465~475nm | / | 32 | 36 | 10 | 11 | |
| White | 3000K | 2950~3150K | >80 | 152 | 169 | 48 | 54 | |
| All on | / | / | / | 380 | 422 | 38 | 42 | |

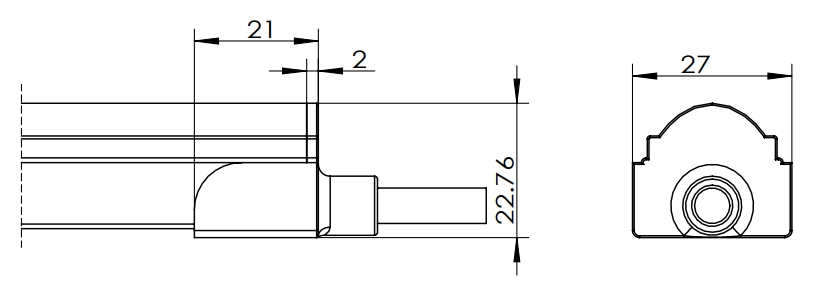

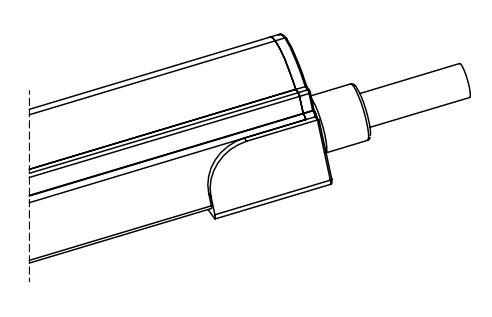

End feed

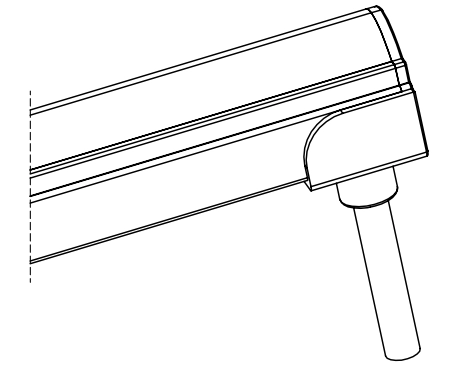

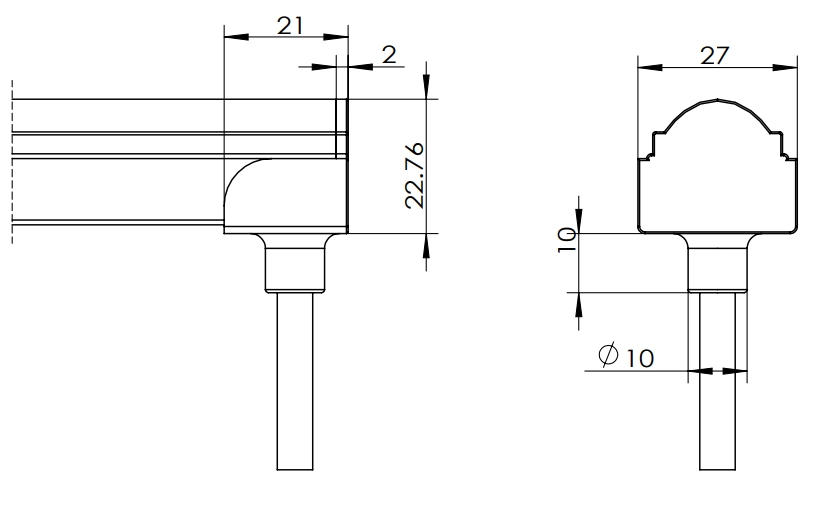

Bottom feed

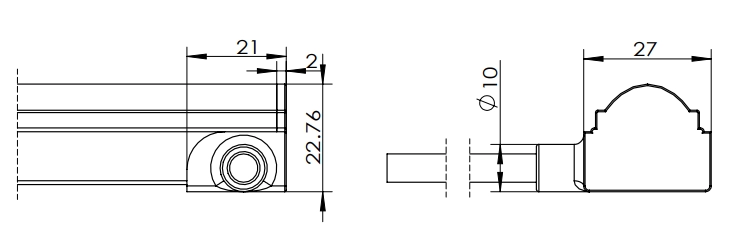

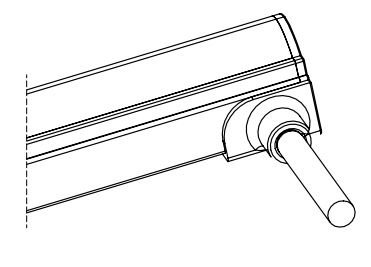

Side feed
