NW2716TS The Reliable LED Flexible Wall Washer Solution
NW2716TS The Reliable LED Flexible Wall Washer Solution

NW2716TS The Reliable LED Flexible Wall Washer Solution

3D bending and top lighting,Brand LED optional,Dual-color silicone extrusion,UV and yellowish resistant,IP67 and salt-mist proof,L70B50 > 50,000hrs,UL 94 V-0,Easy installation and re-connect accessories,Min. top bending radius 15 cm,Min side bending radius 40cm
Online consultation Download

Feature

3D bending and top lighting

Brand LED optional

Dual-color silicone extrusion

UV and yellowish resistant

IP67 and salt-mist proof

L70B50 > 50,000hrs

UL 94 V-0

Easy installation and re-connect accessories

Min. top bending radius 15 cm

Min side bending radius 40cm

Application

Lighting engine for special linear luminaries

Building wall washer

Exhibition halls

Entertainment plazas and bridges.

Big lighting box side lighting

Dimensions and Weight

Dimensions and Weight

Notes:

1.Unit: mm

Environmental and Application Conditions

Ambient temperature range (Ta on free air)-40℃ ~ +55℃
Operating (case) temperature range (Tc)-40℃ ~ +65℃
Storage temperature range-40℃ ~ +85℃
IP ratingIP67

Electrical parameters

ItemNW2716TS-24VNW2716TS-TW
Supply voltage range24.0 ± 1.0 VDC24.0 ± 1.0 VDC
Supply Current range (per meter)Typ. 1000mAWarm white: 666mA
Cool white: 666mA
Power range (per meter)Typ. 24WWarm white: Typ.16W
Cool white: Typ.16W
ESD protectionContact 4KV, Air 8KVContact 4KV, Air 8KV
Max. length for single end power-in5 meters5 meters
Max. length for two ends power-in10 meters10 meters
LED Qty and pitch60 LEDs/m, P: 16.6mm60 LEDs/m, P: 16.6mm
Cutting unit length5 cm (3 LEDs)5 cm (3 LEDs)

Optical parameters (ta=25℃)

Part No.Colorimetric ParametersTyp. Lumen per meter (lm/m)CRI
ColorValue20°30°45°60°25×45°
NW2716TSWhite5000K2695264024002400245080
White4000K2530248022502250230080
White3000K2365231521052105215080
White2700K2365231521052105215080
NW2716TSWhite5000K2290224520402040208090
White4000K2150210519151915195590
White3000K2010197017901790182590
White2700K2010197017901790182590
NW2716TS-TWWarm White2700K1425129512001225125080
Cool White6500K1650150013901420145080
Optional Beam angles:

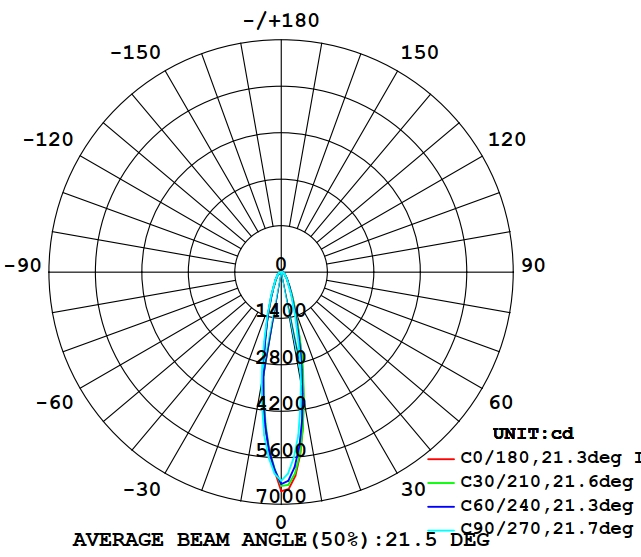

20°

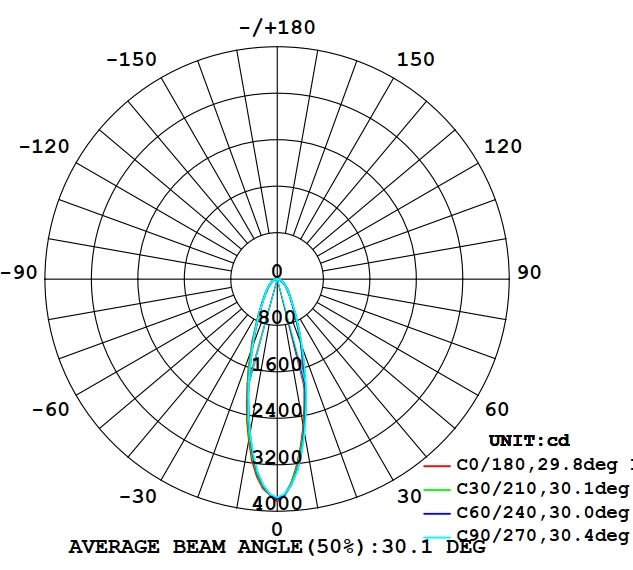

30°

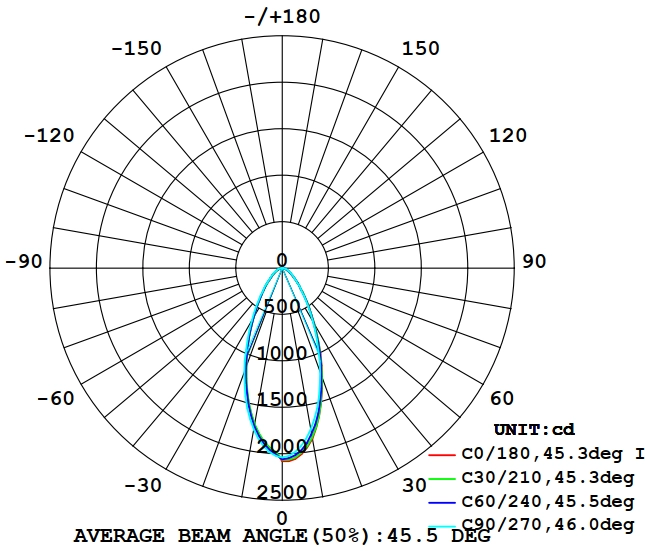

45°

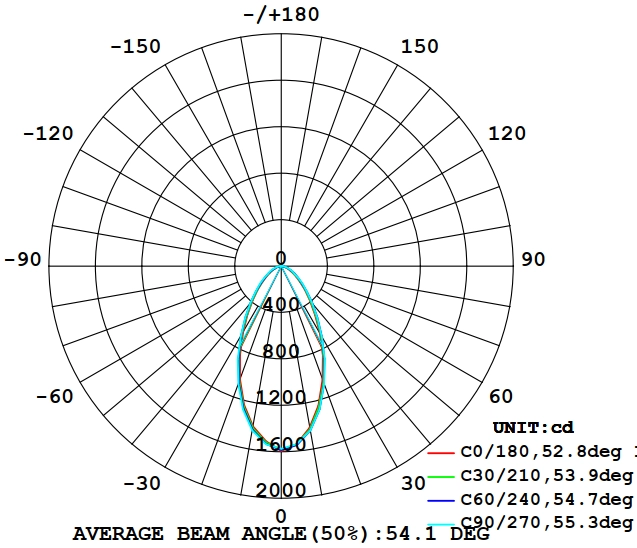

60°

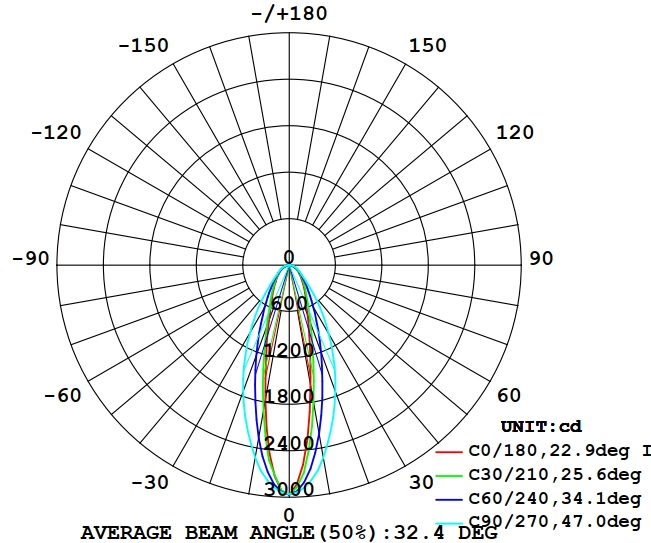

20°x 45°

Connectors

IP67 power feed and end cap by molding

Right feeder


Left feeder


End feeder


Bottom


End cap

Installation accessories

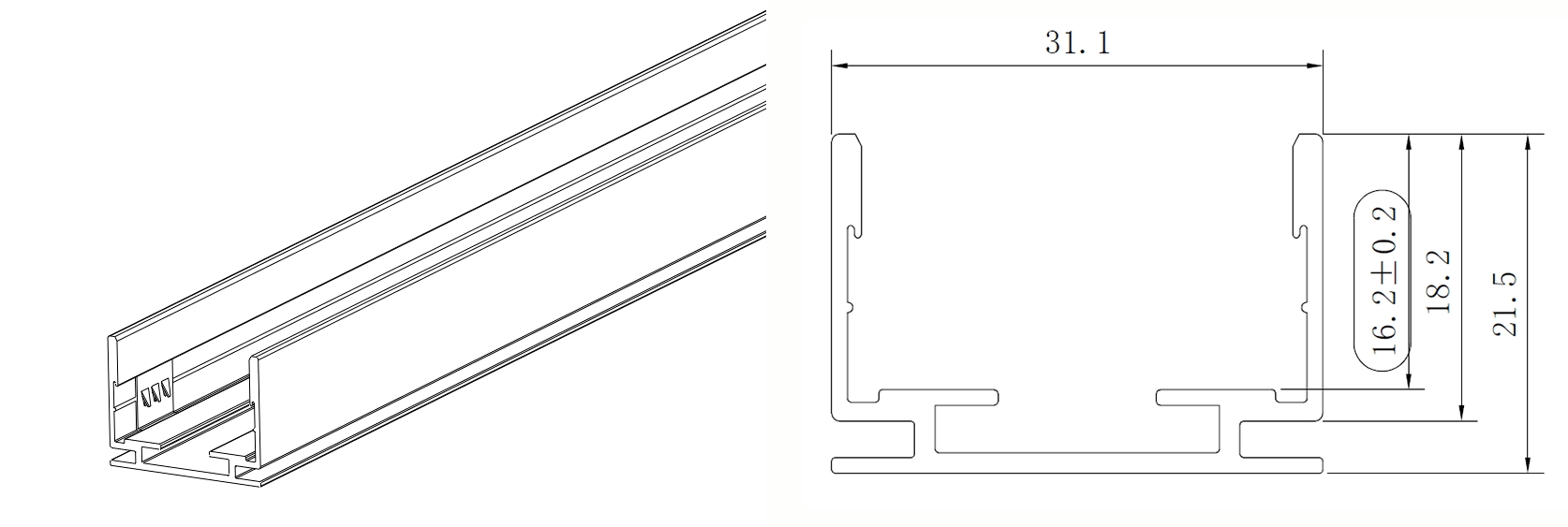

Type 1, AL profile for outdoor application (1meter per pcs, can be cut to certain length needed)
Type 1, AL profile for outdoor application (1meter per pcs, can be cut to certain length needed)

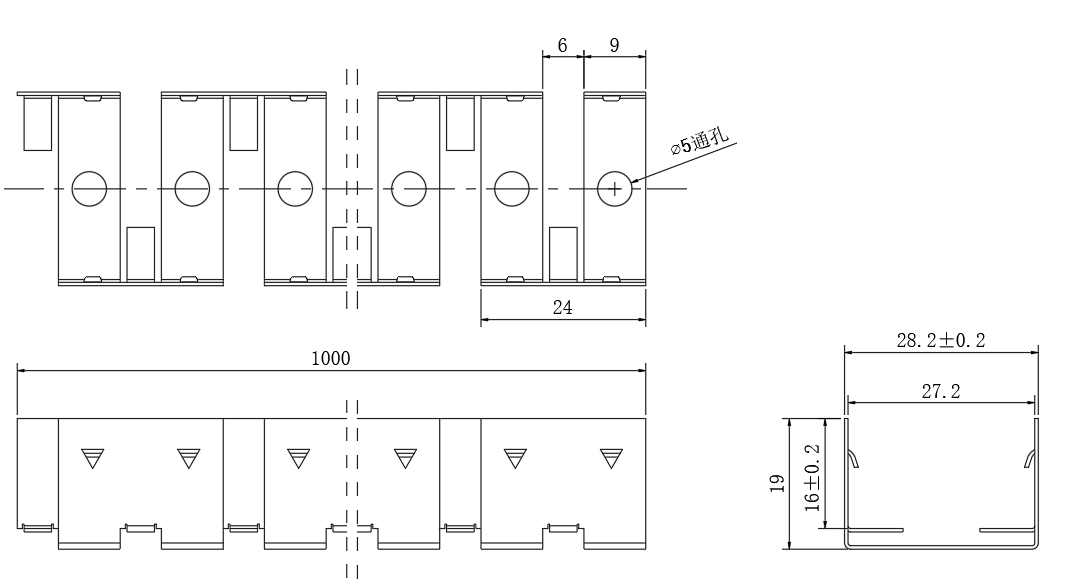

Type 2, Stainless installation chain (1mtr per pcs)
Type 2, Stainless installation chain (1mtr per pcs)

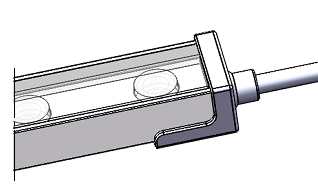

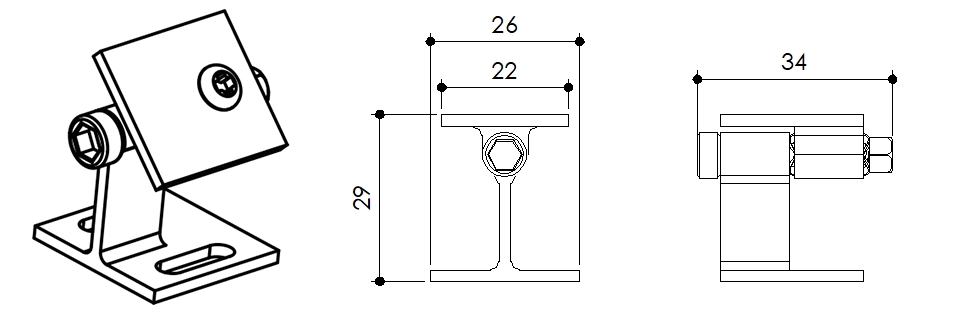

Type3, Rotatable bracket
Type3, Rotatable bracket
