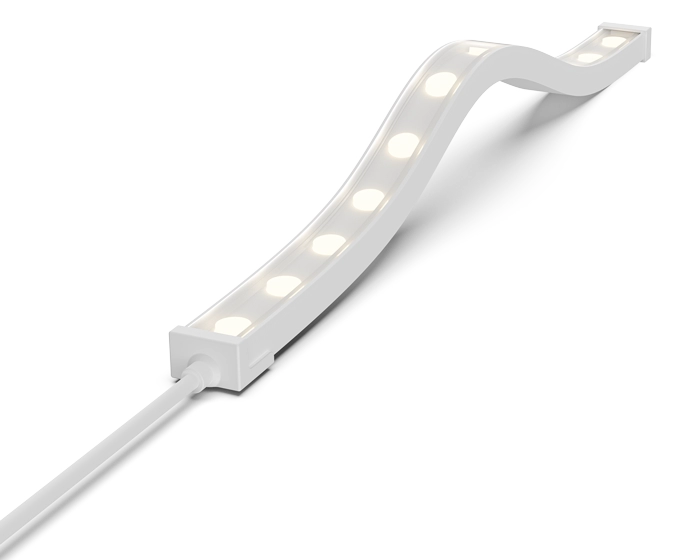

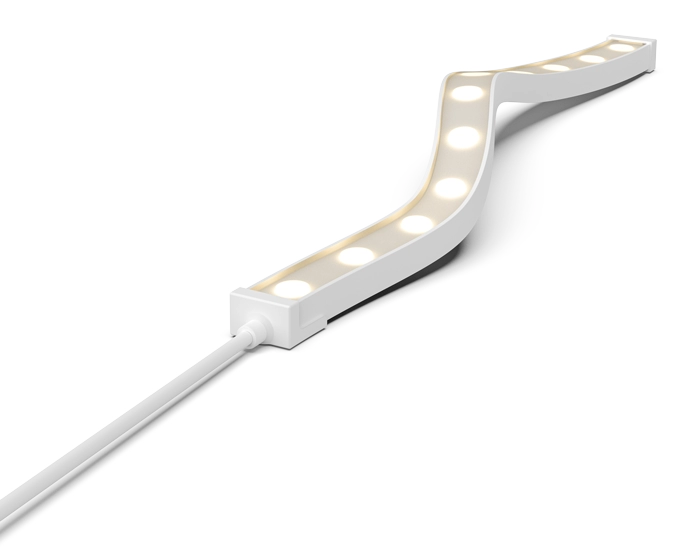

Top bending and top lighting product
Enhance 3030 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0

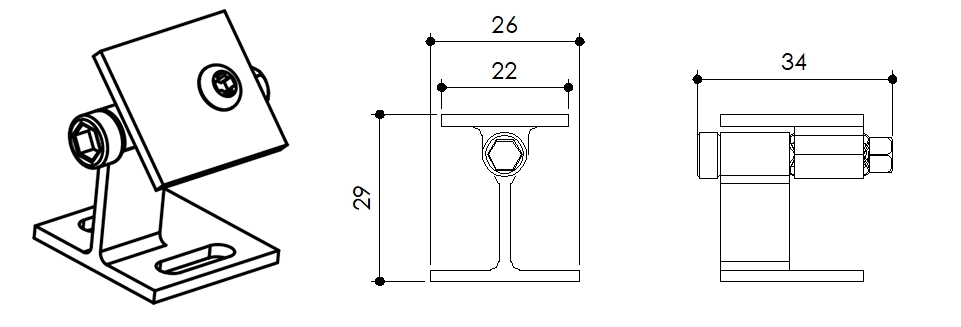

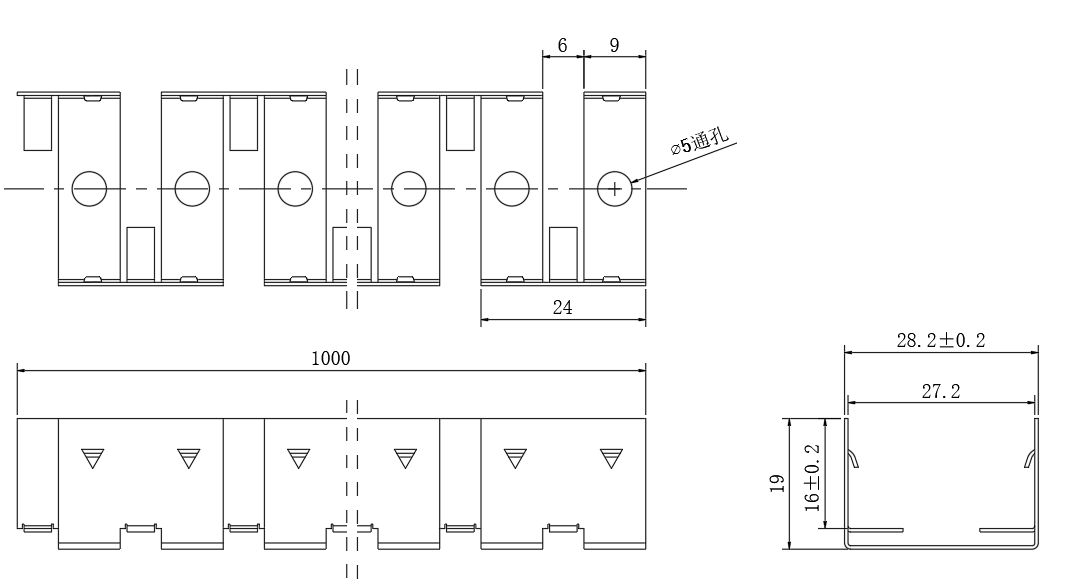

Easy installation and re-connect accessories
Min. bending radius 15 cm
Lighting engine for special linear luminaries
Building wall washer
Exhibition halls
Entertainment plazas and bridges.
Big lighting box side lighting
Notes:
1.Unit: mm
2.L = 5meters for 24V products in standard configuration

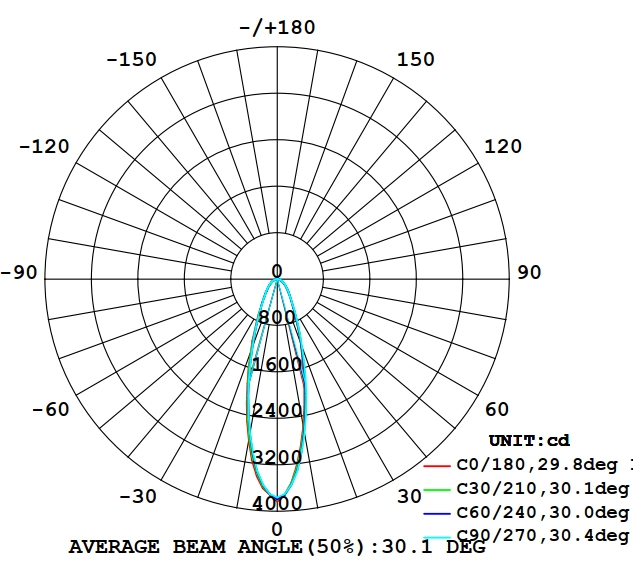

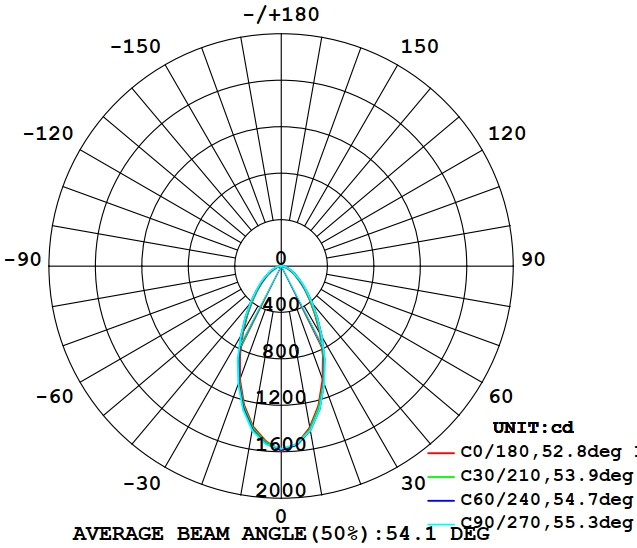

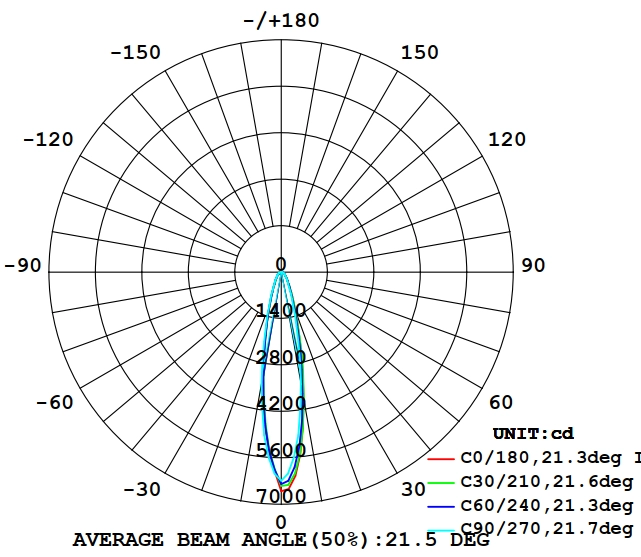

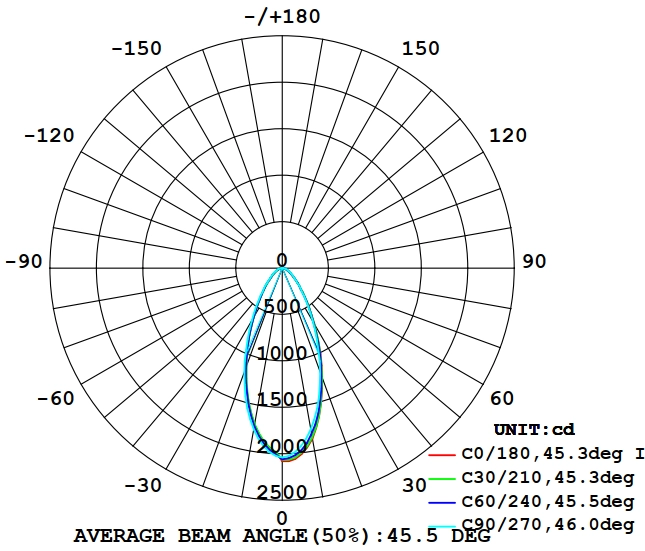

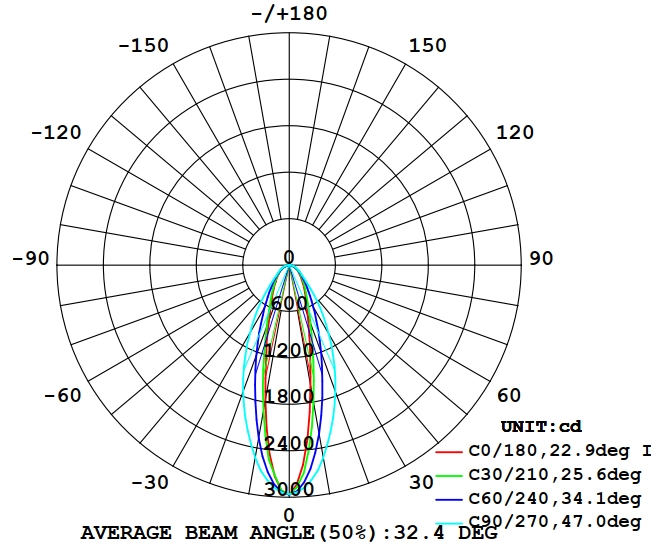

| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NW2716T-24V | NW2716T-24V | NW2716T-TW |
|---|---|---|---|
| Supply voltage range | 24.0 ± 1.0 VDC | 24.0 ± 1.0 VDC | 24.0 ± 1.0 VDC |
| Supply Current range (per meter) | Typ. 1000mA | Typ. 1000mA | Warm white: 666mA Cool white: 666mA |
| Power range (per meter) | Typ. 24W | Typ. 24W | Warm white: Typ. 16W Cool white: Typ. 16W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters | 5 meters | 5 meters |
| Max. length for two ends power-in | 10 meters | 10 meters | 10 meters |
| LED Qty and pitch | 24 LEDs/m, P: 41.67mm | 24 LEDs/m, P: 41.67mm | 24 LEDs/m, P: 41.67mm |
| LED type | EMC3030 | OS P3030 | Ceramic 3535 |
| Cutting unit length | 125mm (3 LEDs) | 250mm (6 LEDs) | 125mm (3 LEDs) |
| Part No. | LED type | Colorimetric Parameters | Typ. Lumen per meter (lm/m) | CRI | |||||
|---|---|---|---|---|---|---|---|---|---|
| Color | Value | 20° | 30° | 45° | 60° | 25×45° | |||
| NW2716T | EMC3030 | White | 5000K | 2695 | 2640 | 2400 | 2400 | 2450 | 80 |
| White | 4000K | 2530 | 2480 | 2250 | 2250 | 2300 | 80 | ||
| White | 3000K | 2365 | 2315 | 2105 | 2105 | 2150 | 80 | ||
| White | 2700K | 2365 | 2315 | 2105 | 2105 | 2150 | 80 | ||
| White | 5000K | 2290 | 2245 | 2040 | 2040 | 2080 | 90 | ||
| White | 4000K | 2150 | 2105 | 1915 | 1915 | 1955 | 90 | ||
| White | 3000K | 2010 | 1970 | 1790 | 1790 | 1825 | 90 | ||
| White | 2700K | 2010 | 1970 | 1790 | 1790 | 1825 | 90 | ||
| NW2716T | OS P3030 | White | 5000K | 2830 | 2775 | 2520 | 2520 | 2575 | 80 |
| White | 4000K | 2660 | 2605 | 2370 | 2370 | 2415 | 80 | ||
| White | 3000K | 2485 | 2435 | 2215 | 2215 | 2260 | 80 | ||
| White | 2700K | 2485 | 2435 | 2215 | 2215 | 2260 | 80 | ||
| NW2716T-TW | Ceramic 3535 | Warm White | 2700K | 1425 | 1295 | 1200 | 1225 | 1250 | 80 |
| Cool White | 6500K | 1650 | 1500 | 1390 | 1420 | 1450 | 80 | ||

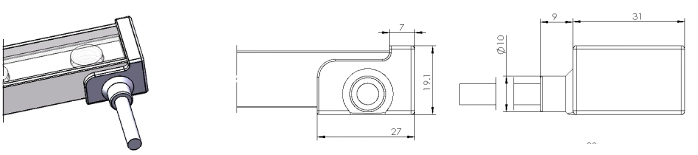

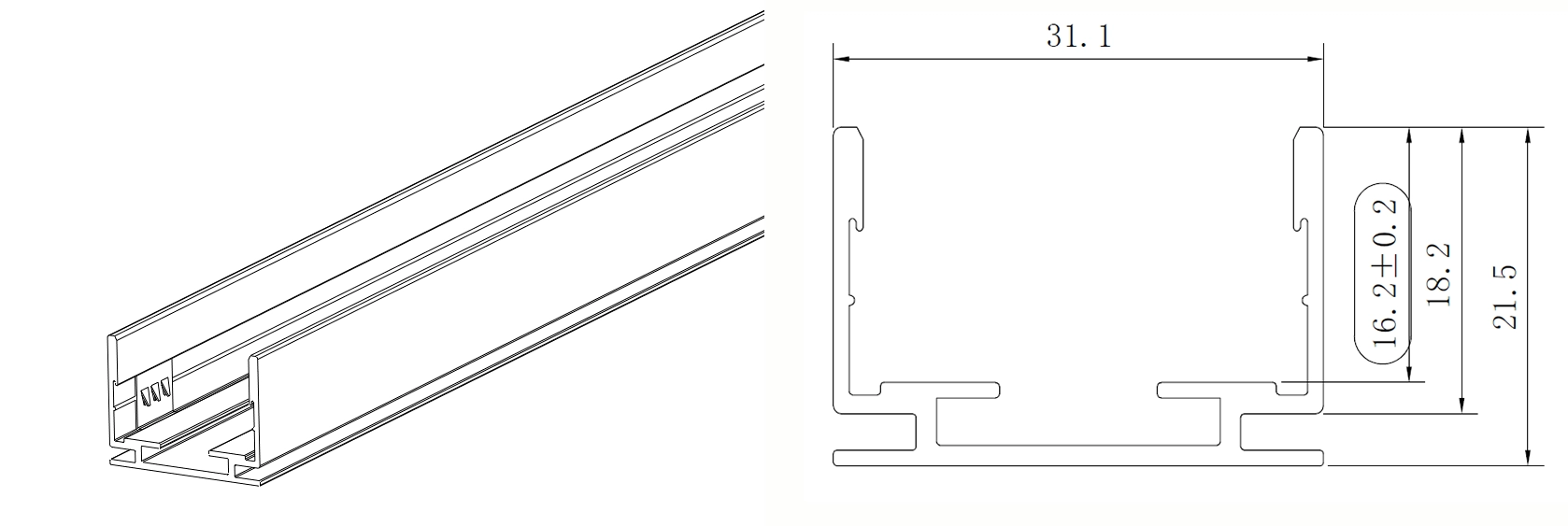

Right feeder
Left feeder

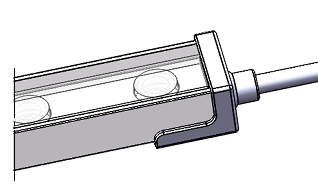

End feeder
Bottom
End cap
