3D bending and top lighting
Brand LED optional
Dual-color silicone extrusion
UV and yellowish resistant
IP65 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0

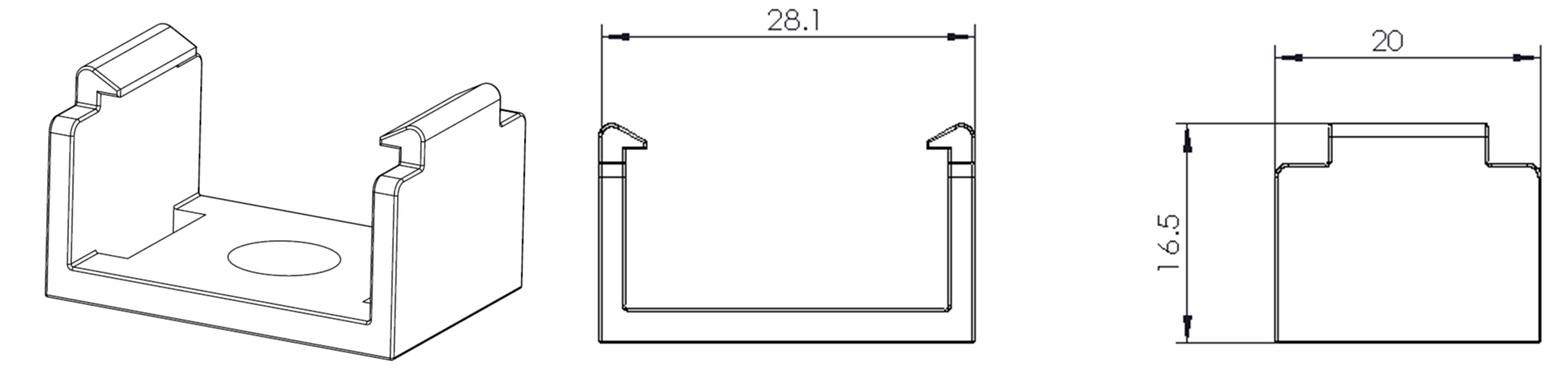

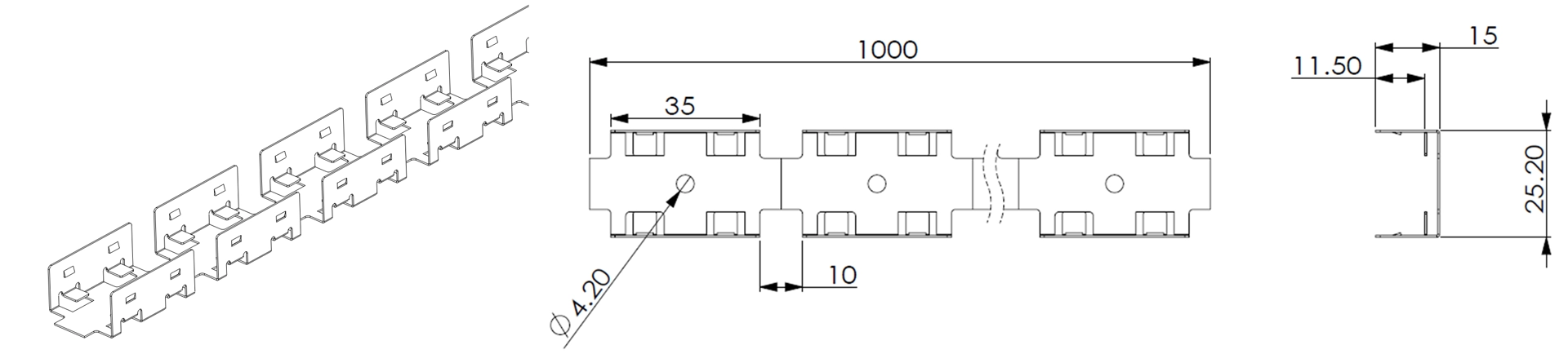

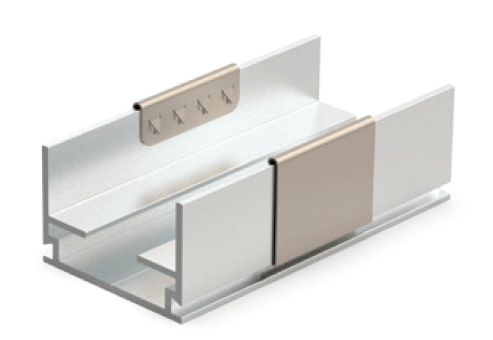

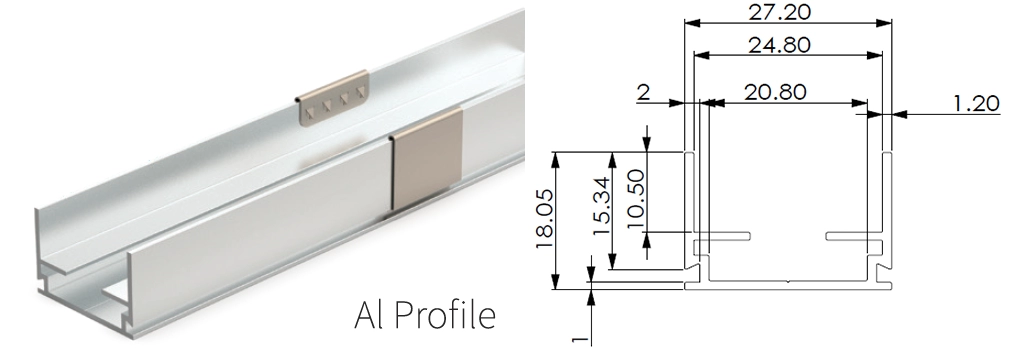

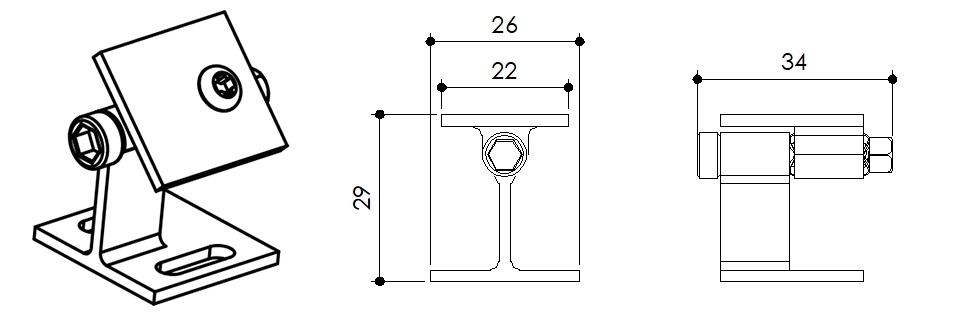

Various accessories for installation
Min. top bending radius 15 cm
Min side bending radius 40cm

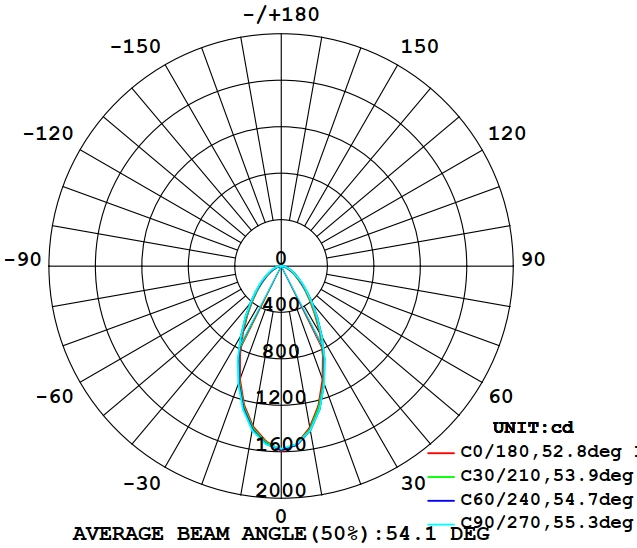

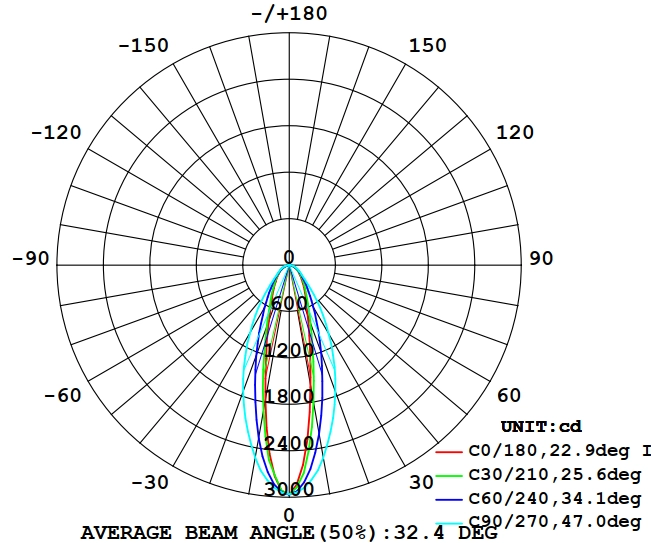

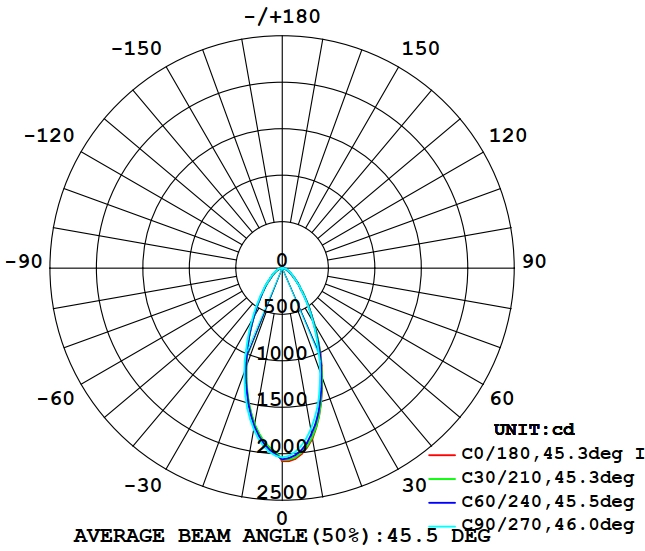

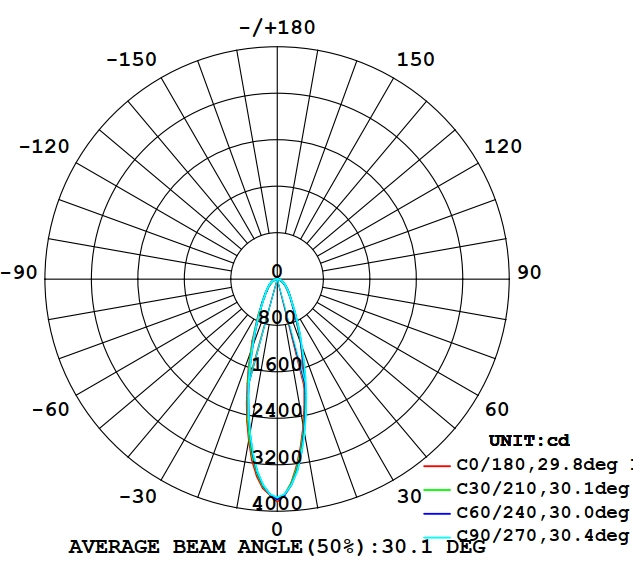

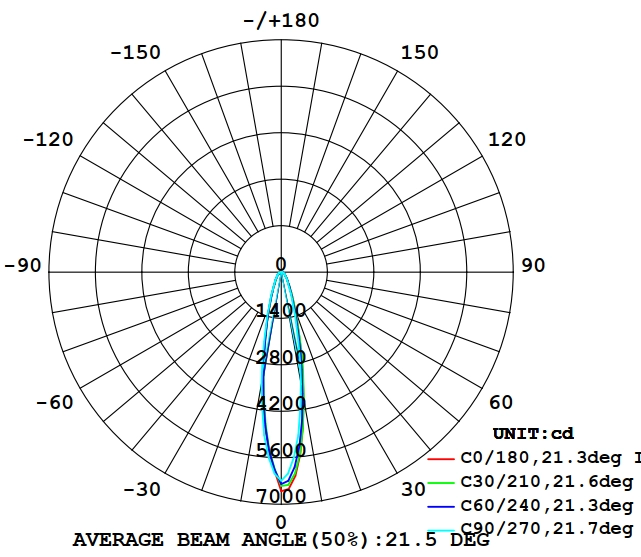

Optional beam angles:
20°，30 ° ，45 ° ，60 ° ，20X45°
Indoor damp condition wall washer lighting
Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP65 |
| Item | NW2417TS-24V | NW2417TS-TW |
|---|---|---|
| Supply voltage range | 24.0 ± 1.0 VDC | 24.0 ± 1.0 VDC |
| Supply Current range (per meter) | Typ. 833mA | Warm white: 833mA Cool white: 833mA |
| Power range (per meter) | Typ. 20W | Warm white: Typ. 20W Cool white: Typ. 20W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters | 5 meters |
| Max. length for two ends power-in | 10 meters | 10 meters |
| LED Qty | 36 LEDs/m | 36 LEDs/m |
| Cutting unit length | 83.3mm | 83.3mm |
| Part No. | Colorimetric Parameters | Typ. Lumen | CRI | |
|---|---|---|---|---|
| Color | Value | 24V | ||
| NW2417TS | White | 5000K | 1800 lm/m | 80 |
| White | 4000K | 1700 lm/m | 80 | |
| White | 3000K | 1610 lm/m | 80 | |
| White | 2700K | 1610 lm/m | 80 | |
| Red | Red (620~625nm) | - | N.A | |
| Green | Green (520~525nm) | - | N.A | |
| Blue | Blue (465~470nm) | - | N.A | |
| NW2417TS-TW | Warm White | 2700K | 1500 lm/m | 80 |
| Cool White | 6500K | 1620 lm/m | 80 | |
