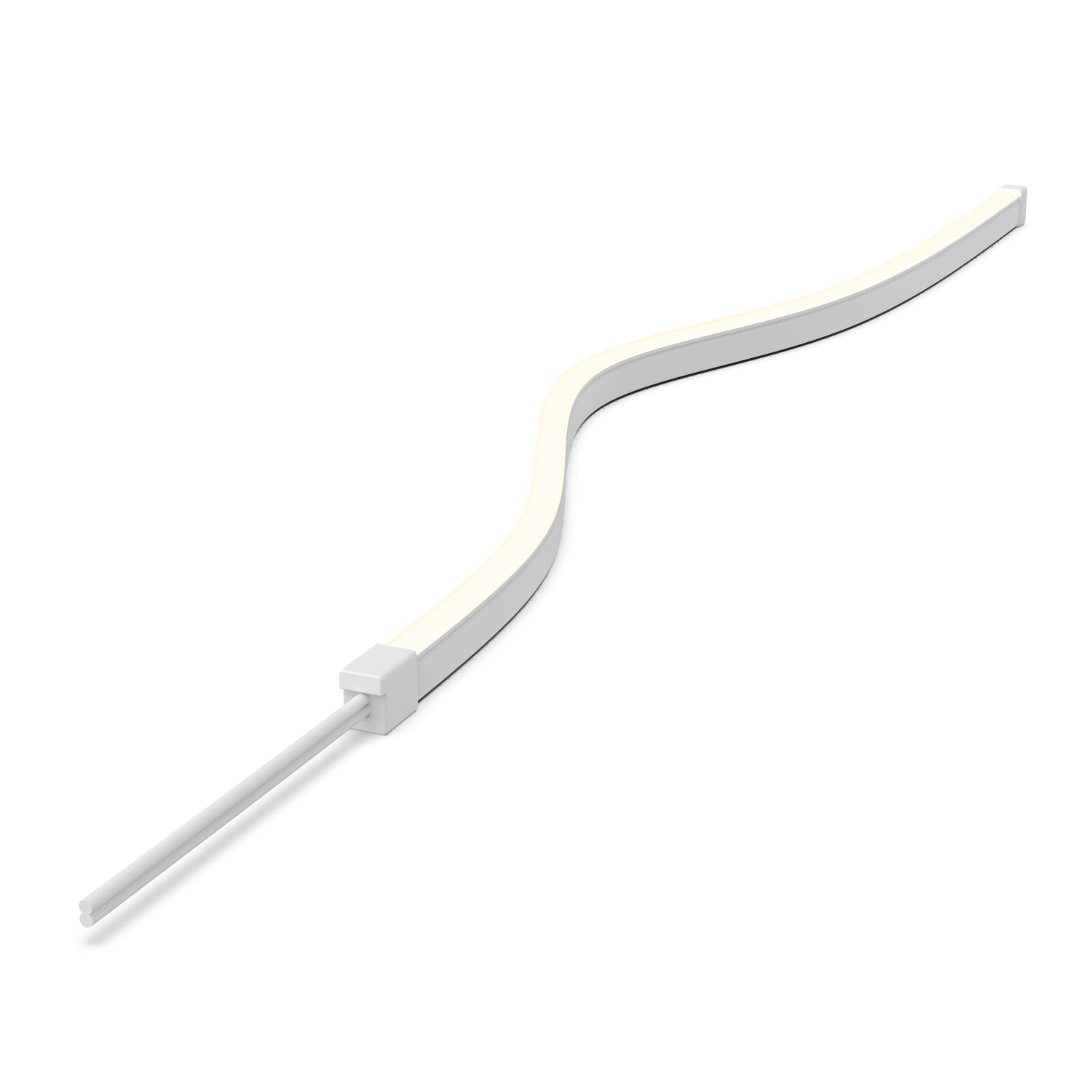

Side bending and Top lighting
Enhanced 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 3cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67/40 |
| Item | NH0712A |
|---|---|
| Supply voltage range(Vdc) | 24.0±1.0 |
| Typ. Power per meter(W) | 9 |
| Power range per meter | 8.1~9.9 |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 |
| Max. length for two ends power-in | 10 |
| LED qty per meter (pcs) | 120 |
| Cutting unit length(mm) | 50 |
| Part No. | Colorimetric Parameters | Product Flux | ||||
|---|---|---|---|---|---|---|
| Color | Value | Value Range | CRI | Typ.Flux(lm/m) | Typ.Efficacy | |
| Single White | White | 6500K | 6000~7000K | >80 | 315 | 35 |
| White | 5500K | 4800~5300K | >80 | 315 | 35 | |
| White | 4300K | 3800~4150K | >80 | 315 | 35 | |
| White | 3000K | 2950~3150K | >80 | 300 | 33 | |
| White | 2700K | 2650~2850K | >80 | 285 | 32 | |
| White | 6500K | 6000~7000K | >90 | 274 | 30 | |
| White | 5500K | 4800~5300K | >90 | 274 | 30 | |
| White | 4300K | 3800~4150K | >90 | 274 | 30 | |
| White | 3000K | 2950~3150K | >90 | 261 | 29 | |
| White | 2700K | 2650~2850K | >90 | 248 | 28 | |
Side feeder
Bootomt feeder
End feeder
