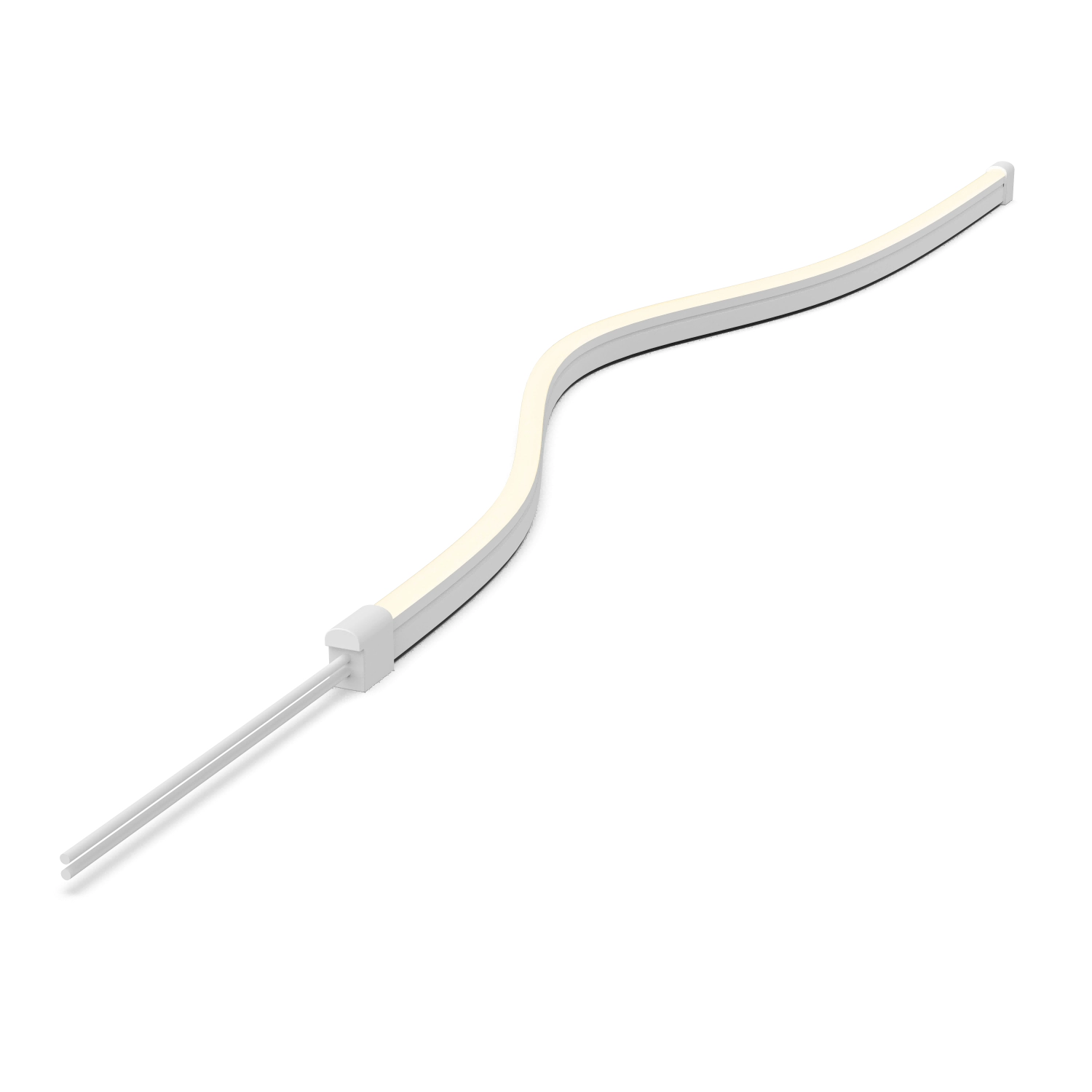

Top bending and 3 surface lighting product
Lumileds 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 12 cm
lighting engine for special linear luminaries
Shelf lighting, Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | PV2412T |
|---|---|
| Supply voltage range | 24.0±1.0 VDC |
| Drive circuit in PCB | IC Constant current |
| Supply Current range (per meter) | Typ.1000mA for White/Blue/Green products Typ. 630mA for Yellow and Red products |
| Power range (per meter) | Typ.24W for White/Blue/Green products Typ. 15.5W for Yellow and Red products |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 10 meters |
| Max. length for two ends power-in | 15 meters |
| Cutting unit length | 100mm for White/Blue/Green products 83.33mm for Yellow and Red products |
| Part No. | Colorimetric Parameters | Product Flux | ||||
|---|---|---|---|---|---|---|
| Color | Value | CRI | CCT Range | Typ.lm/mtr | LED Binning | |
| PV2412B | White | 6500K | Ra. 80 | 6150~6850 | 1530 | Single Bin 3-Steps |
| White | 5000K | Ra. 80 | 4750~5250 | 1530 | Single Bin 3-Steps | |
| White | 4000K | Ra. 80 | 3830~4170 | 1530 | Single Bin 3-Steps | |
| White | 3000K | Ra. 80 | 2850~3150 | 1450 | Single Bin 3-Steps | |
| White | 2700K | Ra. 80 | 2600~2800 | 1450 | Single Bin 3-Steps | |
| Red | 622.5nm | N.A | N.A | 364 | N.A | |
| Green | 467.5nm | N.A | N.A | 250 | N.A | |
| Blue | 525nm | N.A | N.A | 690 | N.A | |
| Yellow | 590nm | N.A | N.A | 349 | N.A | |

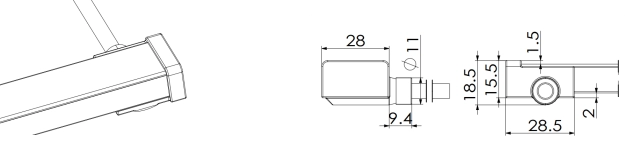

Bottom feeder
End cap

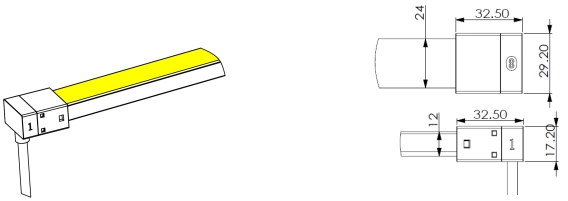

Side feeder
Bottom feeder

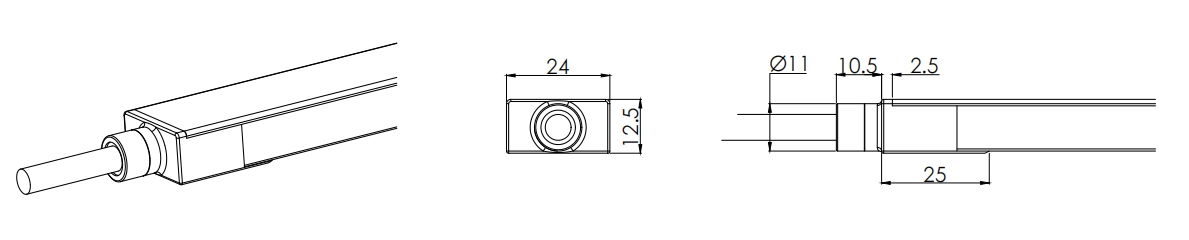

End feeder
End cap
Bottom feeder
End feeder
End cap
