Top bending and Top lighting
High efficacy 2835 or 2016 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 10 cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:

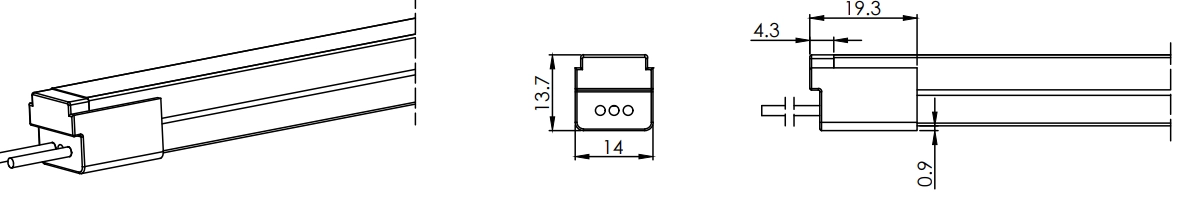

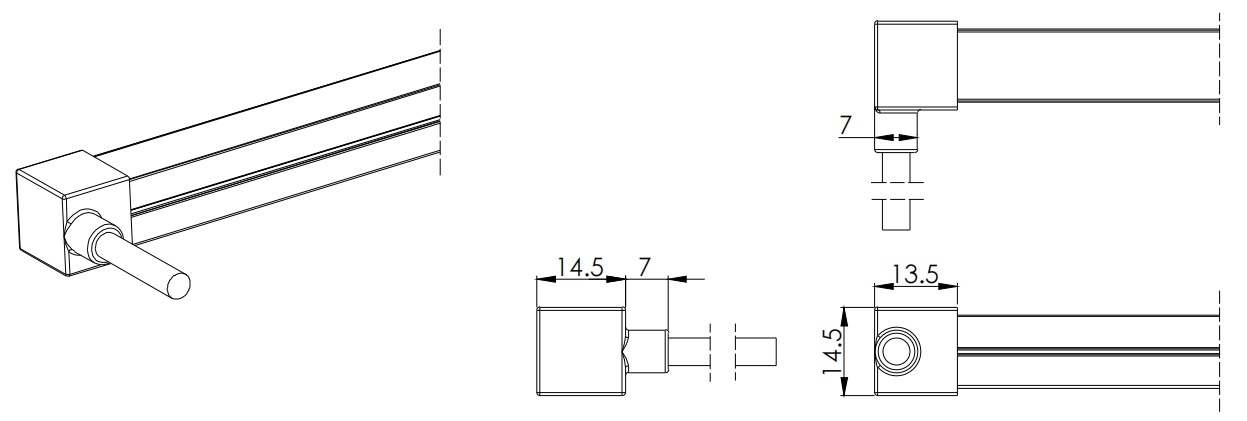

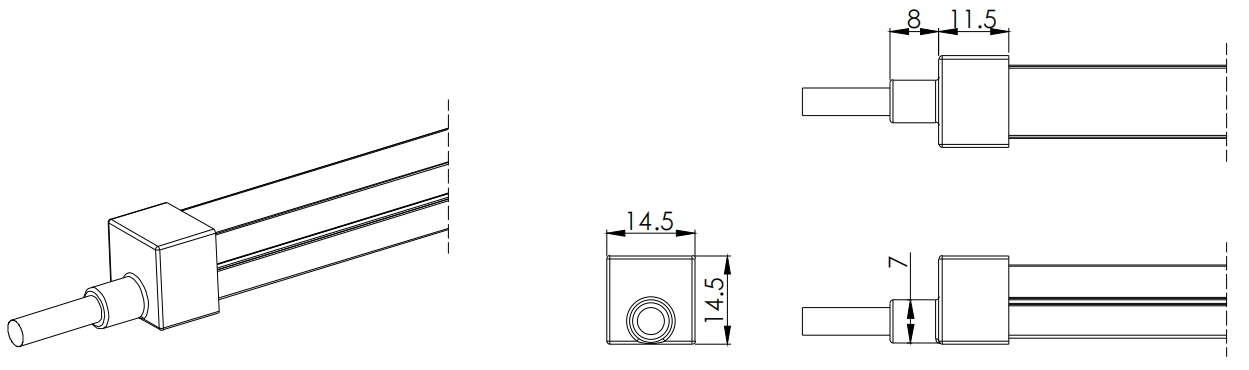

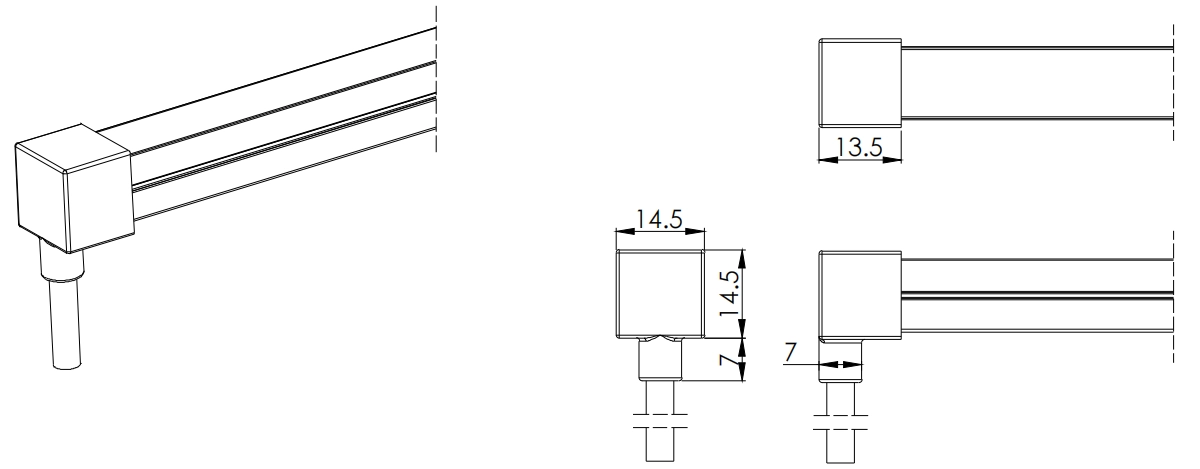

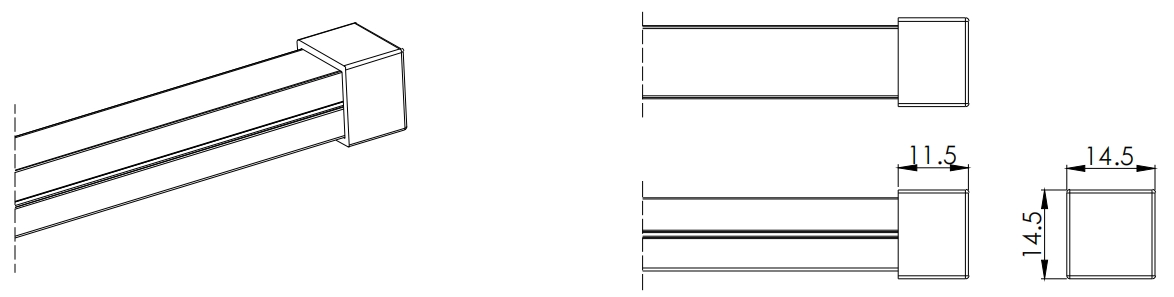

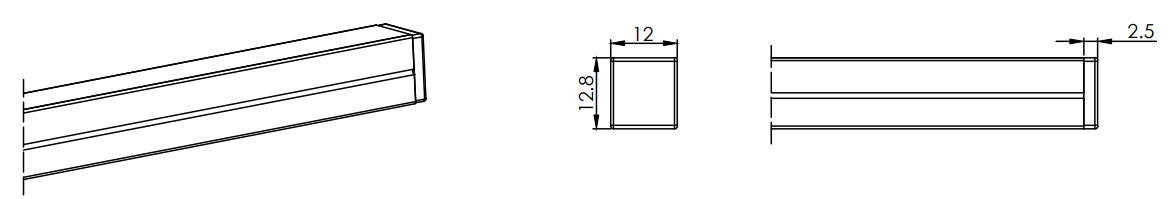

1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | Single color | TW |
|---|---|---|
| Supply voltage range | 24.0±1.0 | 24.0±1.0 |
| Typ. Power per meter(W) | 12 | 12 |
| Power range per meter(W) | 10.8~13.2 | 10.8~13.2 |
| Max. length for single end power-in | 5 | 5 |
| Max. length for two ends power-in | 10 | 10 |
| LED qty per meter | 120 | 120 |
| LED type | 2835 | 2835 |
| Cutting unit length | 50 | 50 |
| Part No. | Colorimetric Parameters | Product Flux | ||||
|---|---|---|---|---|---|---|
| Color | Value | Value range | CRI | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |
| Single color | White | 6500K | 6000~7000K | >80 | 683 | 57 |
| White | 5000K | 4800~5300K | >80 | 683 | 57 | |
| White | 4000K | 3800~4150K | >80 | 683 | 57 | |
| White | 3000K | 2950~3150K | >80 | 650 | 54 | |
| White | 2700K | 2650~2850K | >80 | 618 | 51 | |
| White | 6500K | 6000~7000K | >90 | 593 | 49 | |
| White | 5000K | 4800~5300K | >90 | 593 | 49 | |
| White | 4000K | 3800~4150K | >90 | 593 | 49 | |
| White | 3000K | 2950~3150K | >90 | 565 | 47 | |
| White | 2700K | 2650~2850K | >90 | 537 | 45 | |
| TW | White | 6500K | 6000~7000K | >80 | 595 | 50 |
| White | 2700K | 2650~2850K | >80 | 510 | 43 | |
