Top bending and Top lighting
Enhanced SMT LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 6 cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

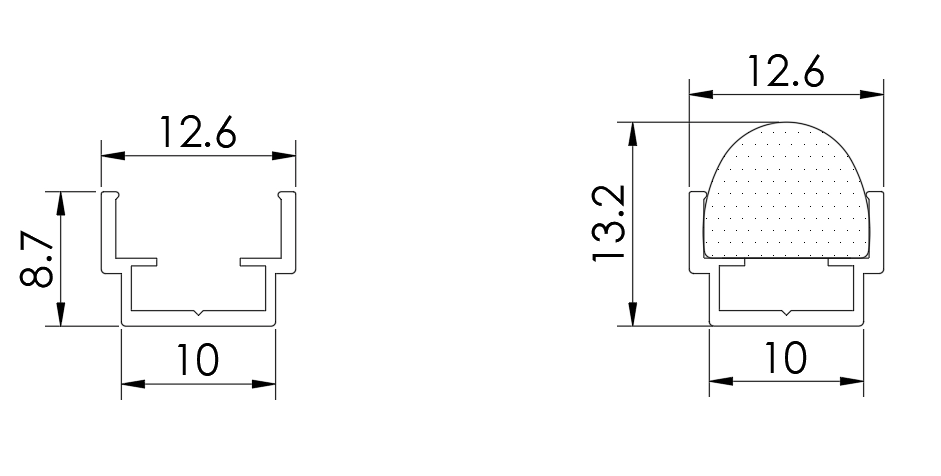

Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | PV1109A |
|---|---|
| Supply voltage range | 24.0±1.0 VDC |
| Supply Current range (per meter) | Typ.400mA |
| Power range (per meter) | Typ. 9.6W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters |
| Max. length for two ends power-in | 10 meters |
| LED qty pet meter | 210 pcs |
| Cutting unit length | 33.3mm |
| Part No. | Colorimetric Parameters | Product Flux | ||
|---|---|---|---|---|
| Color | Value | CRI | Typ. Lm/mtr | |
| PV1109A | White | 6500K | Ra.80 | 1190 |
| White | 5000K | Ra.80 | 1190 | |
| White | 4000K | Ra.80 | 1190 | |
| White | 3000K | Ra.80 | 1150 | |
| White | 2700K | Ra.80 | 1110 | |
| White | 6500K | Ra.90 | 1030 | |
| White | 5000K | Ra.90 | 1030 | |
| White | 4000K | Ra.90 | 1030 | |
| White | 3000K | Ra.90 | 980 | |
| White | 2700K | Ra.90 | 930 | |
End feeder
