Side bending and Top lighting
Lumileds 2835LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 3cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

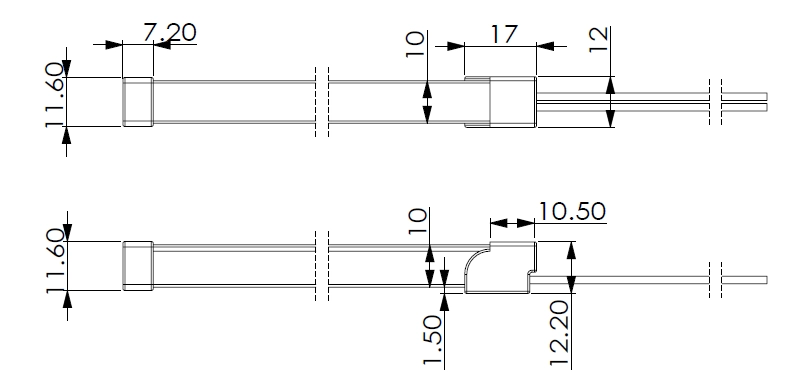

Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NH1118S3 |
|---|---|
| Supply voltage range | 12.0±1.0 VDC |
| Supply Current range (per meter) | Typ.400mA |
| Power range (per meter) | Typ.9.6W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters |
| Max. length for two ends power-in | 10 meters |
| Cutting unit length(mm) | 50cm |
| Part No. | Colorimetric Parameters | Product Flux | |||
|---|---|---|---|---|---|
| Color | Value | CRI | CCT Range | Typ.Lm/mtr | |
| PV1010S6 | White | 6500K | Ra.80 | 6150~6850K | 530 lm/m |
| White | 5000K | Ra.80 | 4750~5250K | 530 lm/m | |
| White | 4000K | Ra.80 | 3830~4170K | 530 lm/m | |
| White | 3000K | Ra.80 | 2850~3150K | 500 lm/m | |
| White | 2700K | Ra.80 | 2600~2800K | 480 lm/m | |
Side feeder
Bottom feeder
End feeder
End cap
