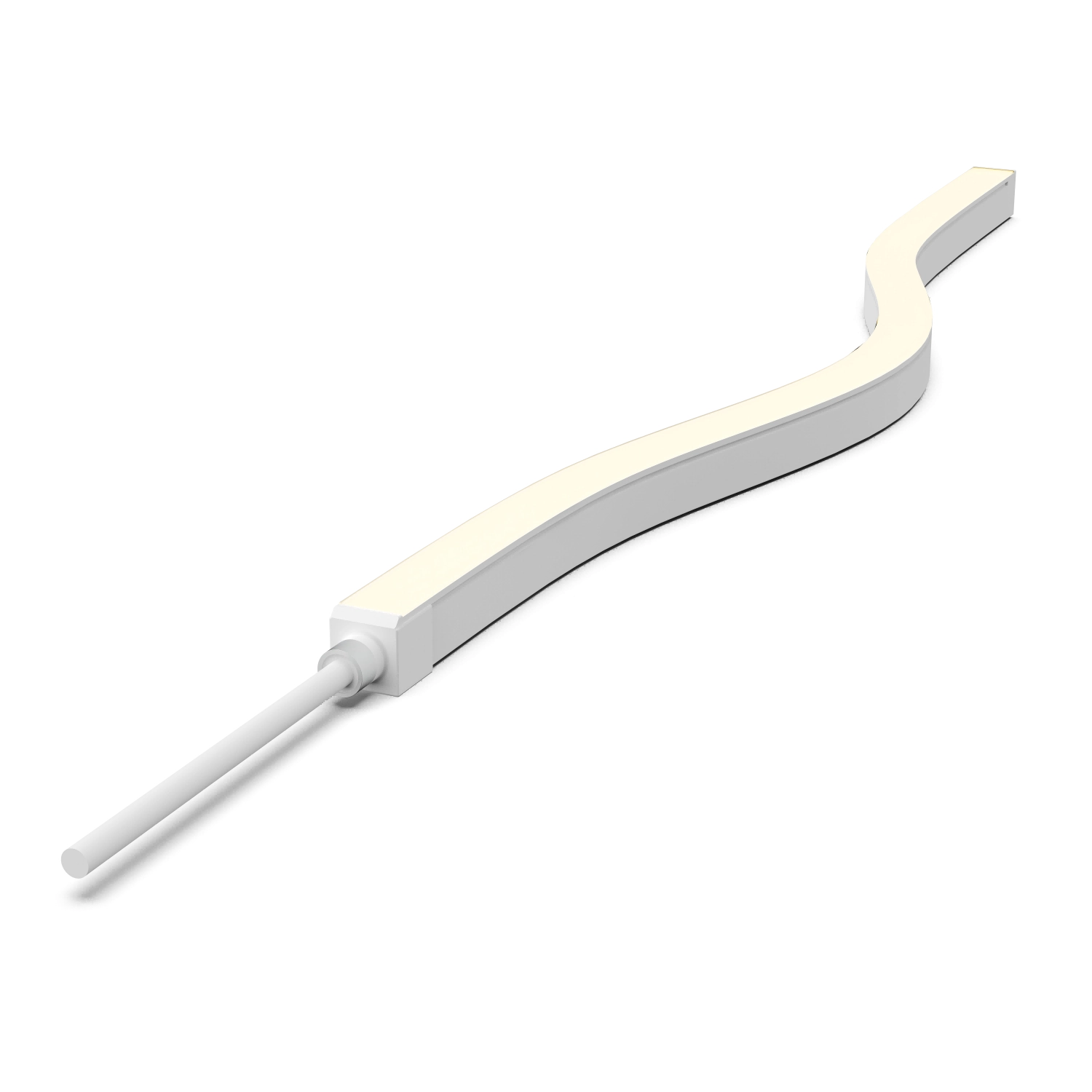

Side bending and Top lighting
Lumileds 2835LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 3cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NH1617S-CV | NH1617S-CC |
|---|---|---|
| Supply voltage range | 24.0±1.0 VDC | 24.0±1.0 VDC |
| Supply Current range (per meter) | Typ.500mA | Typ.500mA |
| Power range (per meter) | Typ.12W | Typ.12W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters | 5 meters |
| Max. length for two ends power-in | 10 meters | 10 meters |
| Cutting unit length(mm) | 10cm | 10cm |
| Part No. | Colorimetric Parameters | Product Flux | ||
|---|---|---|---|---|
| Color | Value | Typ. Lumen | CRI | |
| NH1617S | White | 6500K | 550 lm/m | 80 |
| White | 5000K | 550 lm/m | 80 | |
| White | 4000K | 550 lm/m | 80 | |
| White | 3000K | 550 lm/m | 80 | |
| White | 2700K | 550 lm/m | 80 | |
| Red | 622.5nm | 155 lm/m | N.A | |
| Green | 525nm | 350 lm/m | N.A | |
| Blue | 467.5nm | 62 lm/m | N.A | |
| Yellow | 590nm | 145 lm/m | N.A | |
End feeder
Side feeder

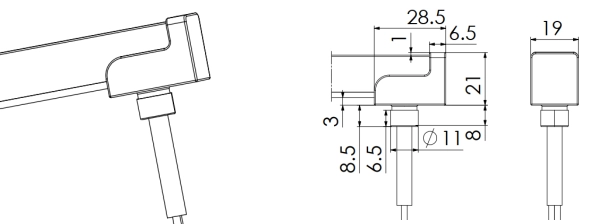

Bottom feeder
End cap
End feeder
End cap

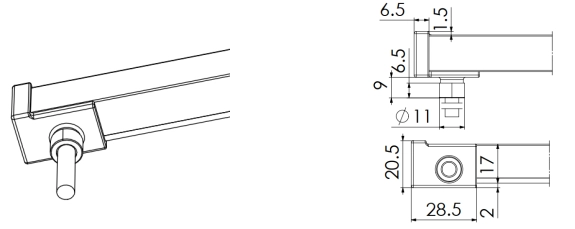

Left feeder
