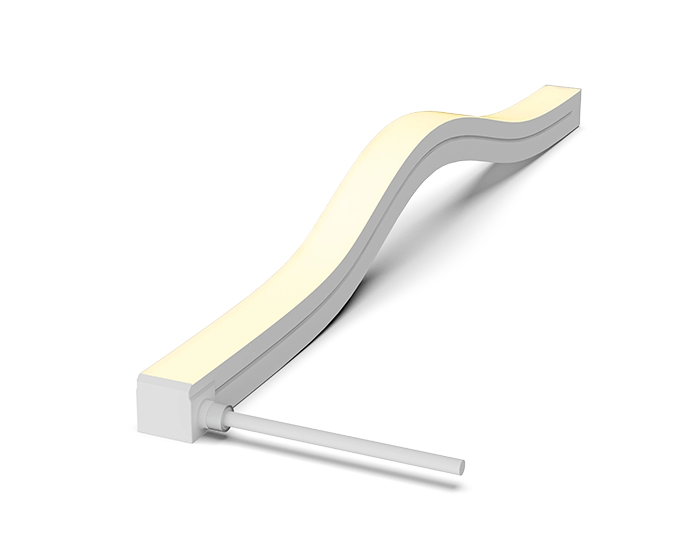

Top bending and top lighting product
Lumileds 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 12 cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

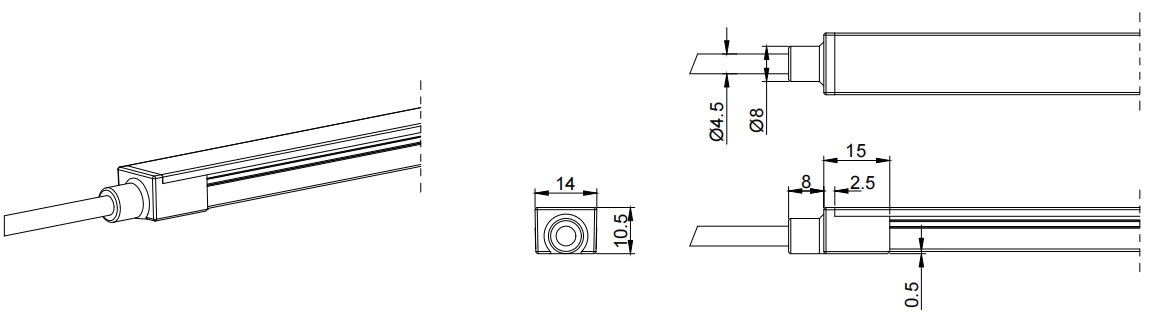

Notes:
1.Unit: mm
2.Weight: 170g/m
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| ESD protection | Contact 4KV, Air 8KV |
| IP rating | IP67 |
| Item | PV1410A |
|---|---|
| Supply voltage range | 24.0±1.0 VDC |
| Supply Current range (per meter) | Typ.400mA |
| Power range (per meter) | Typ. 9.6W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters |
| Max. length for two ends power-in | 10 meters |
| LED Qty per mt | 120 |
| Cutting unit length | 50mm |
| Part No. | Colorimetric Parameters | Product Flux | |||
|---|---|---|---|---|---|
| Color | Value | CRI | CCT Range | Typ. Lm/mtr | |
| PV1410A | White | 6500K | Ra. 80 | 6150~6850 | 680lm |
| White | 5000K | Ra. 80 | 4750~5250 | 680lm | |
| White | 4000K | Ra. 80 | 3830~4170 | 680lm | |
| White | 3000K | Ra. 80 | 2850~3150 | 630lm | |
| White | 2700K | Ra. 80 | 2600~2800 | 630lm | |
| Red | 622.5nm | N.A | N.A | 220lm | |
| Green | 525nm | N.A | N.A | 400lm | |
| Blue | 467.5nm | N.A | N.A | 120lm | |
| Yellow | 590nm | N.A | N.A | 190lm | |

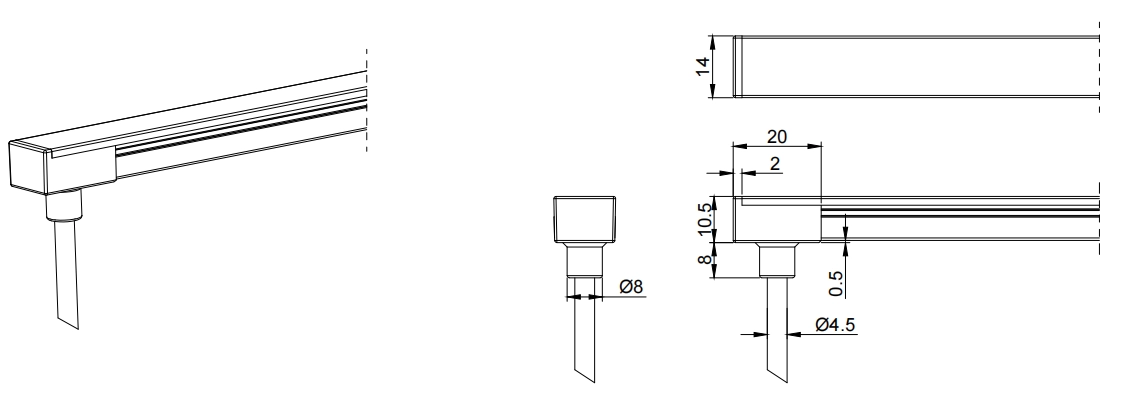

End feeder

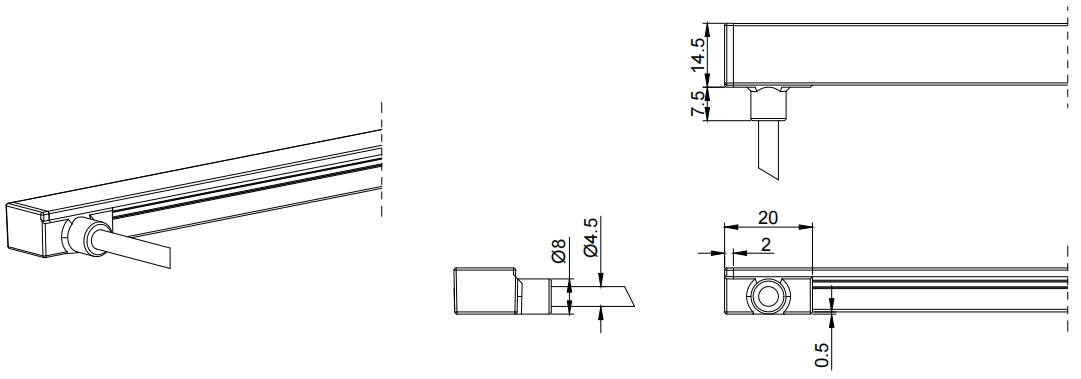

Side feeder

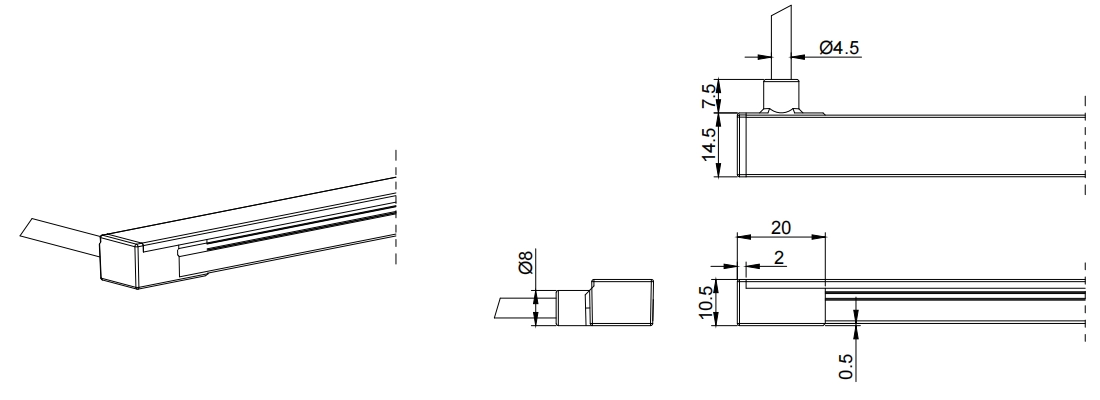

Bottom feeder

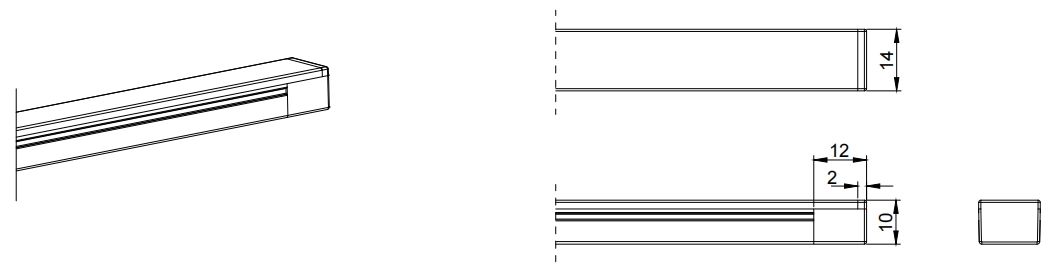

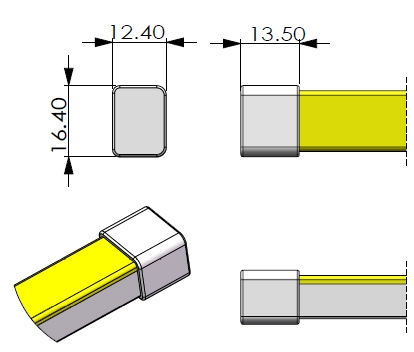

End cap

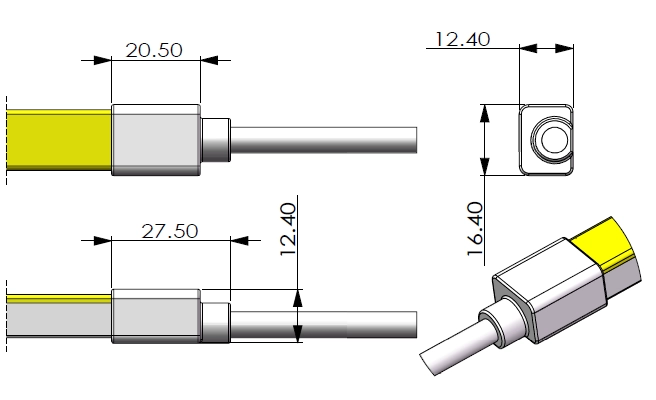

End feeder
End cap
End feeder

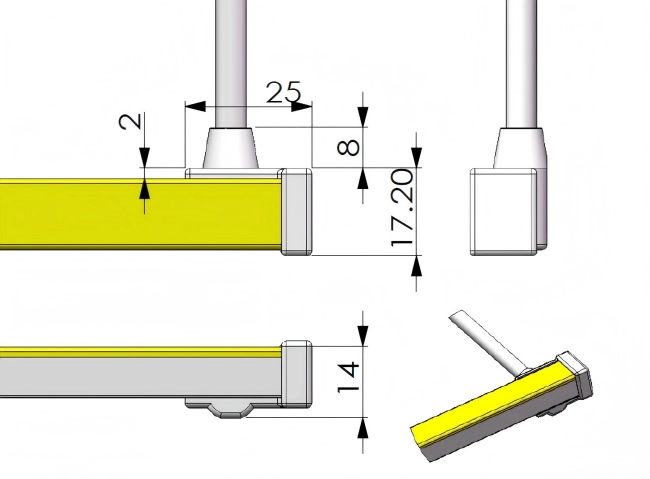

Left feeder
Right feeder

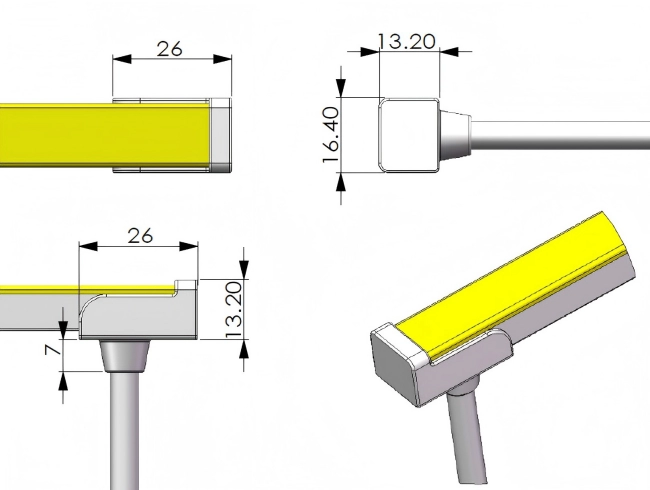

Bottom feeder
End cap
