Free bending and Twist-able
High efficacy 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
High efficacy typ. 100lm/W
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 10cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:

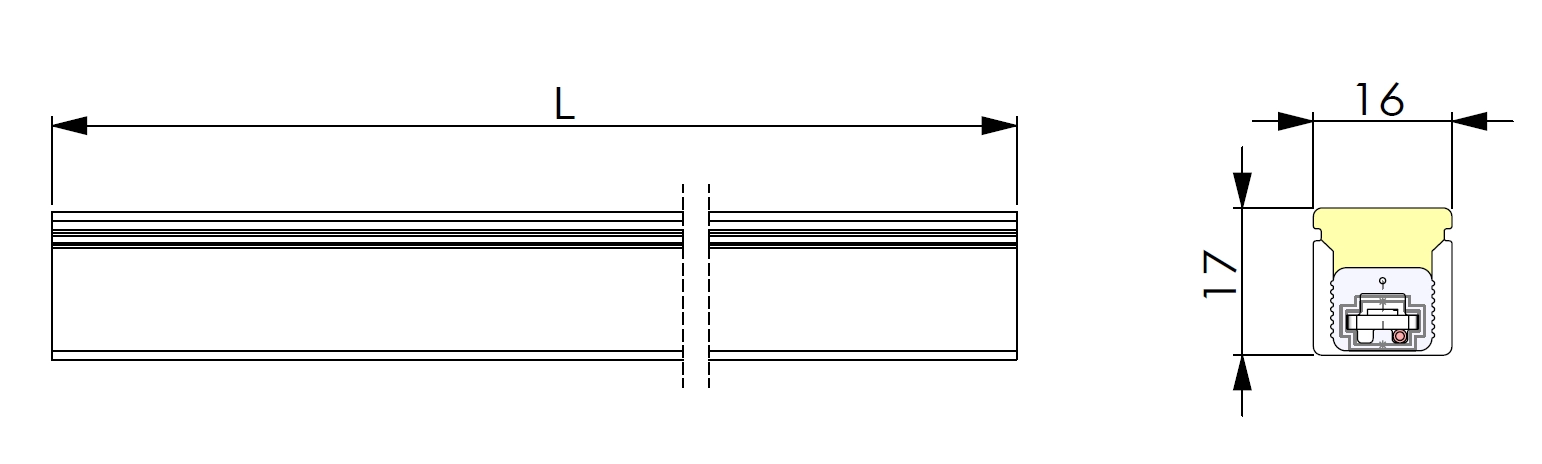

1.Unit: mm
2.Weight: 300g/m
| Ambient temperature range (TA on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (TC) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | FB1616 HE |
|---|---|
| Supply voltage range (Vdc) | 24.0±1.0 |
| Typ. Power per meter (W) | 12 |
| Power range per meter (W) | 10.8-13.2 |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in (m) | 10 |
| Max. length for two ends power-in (m) | 15 |
| LED qty per meter (pcs) | 140 |
| Cutting unit length (mm) | 50 |
| Part No. | Colorimetric Parameters | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |||
|---|---|---|---|---|---|---|
| Color | Value | Value range | CRI | |||
| FB1616 HE | White | 6500K | 6000~7000K | >80 | 1200 | 100 |
| White | 5000K | 4800~5300K | >80 | 1200 | 100 | |
| White | 4000K | 3800~4150K | >80 | 1200 | 100 | |
| White | 3000K | 2950~3150K | >80 | 1150 | 96 | |
| White | 2700K | 2650~2850K | >80 | 1090 | 91 | |
| White | 6500K | 6000~7000K | >90 | 1020 | 85 | |
| White | 5000K | 4800~5300K | >90 | 1020 | 85 | |
| White | 4000K | 3800~4150K | >90 | 1020 | 85 | |
| White | 3000K | 2950~3150K | >90 | 978 | 81 | |
| White | 2700K | 2650~2850K | >90 | 927 | 77 | |
Side feeder
Bottom feeder

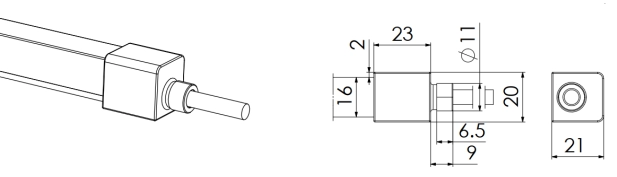

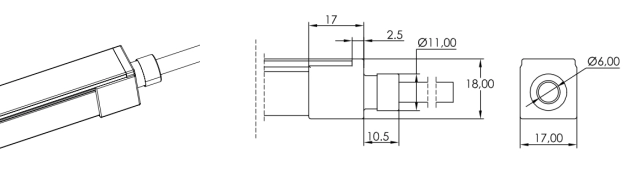

End feeder
End cap
Side feeder
Bottom feeder
Side feeder
