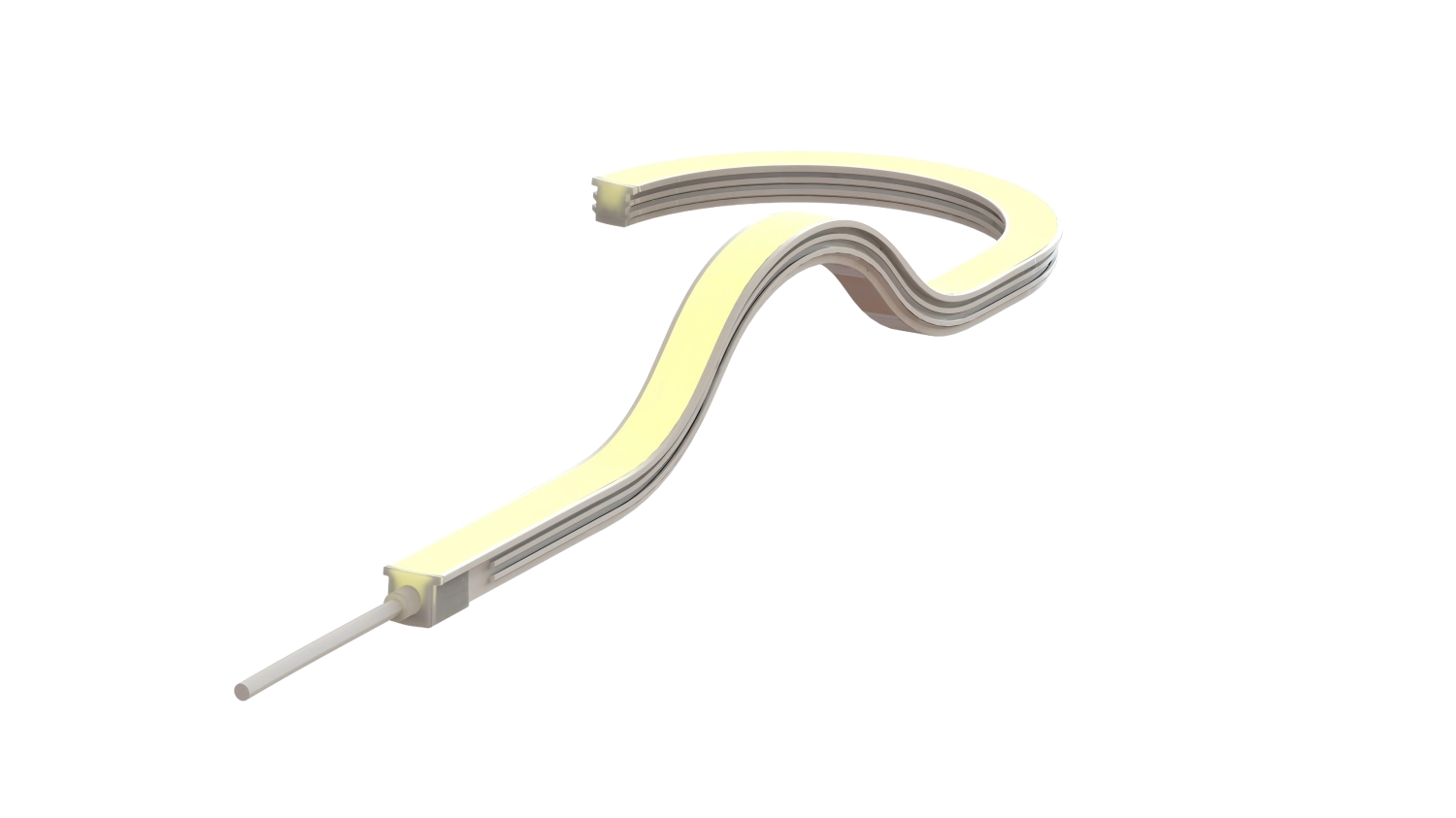

Free bending and top lighting product
Enhanced LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0

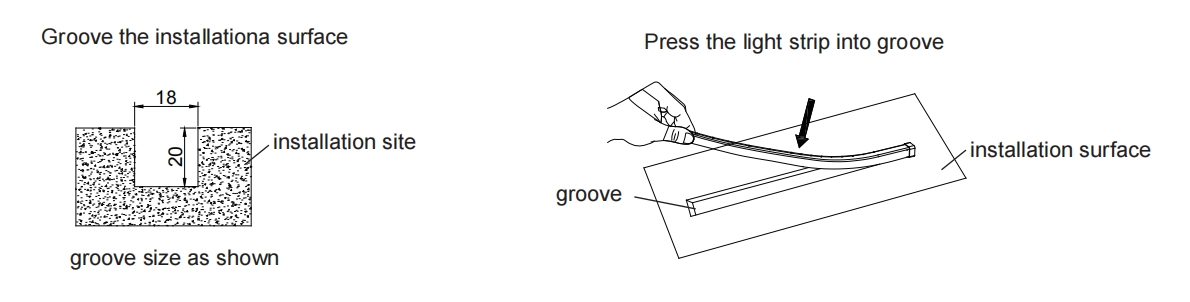

Easy installation, no need accessories
Min. bending radius 15 cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| ESD protection | Contact 4KV, Air 8KV |
| Item | Single color | TW | RGB | DMX RGB | RGBW | DMX RGBW |
|---|---|---|---|---|---|---|
| Supply voltage range (Vdc) | 24.0±1.0 | 24.0±1.0 | 24.0±1.0 | 24.0±1.0 | 24.0±1.0 | 24.0±1.0 |
| Typ. Power per meter (W) | 12 | 12 | 12 | 18 | 13.8 | 18 |
| Power range per meter(W) | 10.8~13.2 | 10.8~13.2 | 10.8~13.2 | 16.2~19.8 | 12.4~15.2 | 16.2~19.8 |
| Max. length for single end power-in(m) | 10 | 10 | 5 | 5 | 5 | 5 |
| Max. length for two ends power-in (m) | 15 | 15 | 10 | 10 | 10 | 10 |
| LED qty per meter (pcs) | 120 | 105+105 | 96 | 96 | 96 | 96 |
| Cutting unit length (mm) | 50 | 28.5 | 62.5 | 62.5 | 62.5 | 62.5 |
| Pixel per meter | N.A | N.A | N.A | 16 | N.A | 16 |
| IC Type | N.A | N.A | N.A | SM 18522 | N.A | SM 18522 |
| Part No. | Colorimetric Parameters CRI | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |||
|---|---|---|---|---|---|---|
| Color | Value | Value range | CRI | |||
| Single color | White | 6500K | 6000~7000K | >80 | 530 | 44 |
| White | 5000K | 4800~5300K | >80 | 530 | 44 | |
| White | 4000K | 3800~4150K | >80 | 530 | 44 | |
| White | 3000K | 2950~3150K | >80 | 500 | 42 | |
| White | 2700K | 2650~2850K | >80 | 480 | 40 | |
Yellow | 1600K | 1530~1650K | / | 575 | 48 | |
Red | 622.5nm | 620~630nm | / | 235 | 20 | |
Green | 525nm | 520~530nm | / | 415 | 35 | |
Blue | 467.5nm | 465~475nm | / | 141 | 12 | |
| TW | White | 6500K | 6000~7000K | >80 | 530 | 44 |
| White | 2700K | 2650~2850K | >80 | 480 | 40 | |
| RGB | Red | 622.5nm | 620~630nm | / | 58 | 15 |
| Green | 525nm | 520~530nm | / | 158 | 40 | |
| Blue | 467.5nm | 465~475nm | / | 35 | 9 | |
| All on | / | / | / | 251 | 21 | |
| DMX RGB | Red | 622.5nm | 620~630nm | / | 66.7 | 9 |
| Green | 525nm | 520~530nm | / | 181.7 | 24 | |
| Blue | 467.5nm | 465~475nm | / | 40.02 | 5 | |
| All on | / | / | / | 288.42 | 16 | |
| RGBW | Red | 622.5nm | 620~630nm | / | 50.025 | 15 |
| Green | 525nm | 520~530nm | / | 136.275 | 40 | |
| Blue | 467.5nm | 465~475nm | / | 30.015 | 9 | |
| White | 3000K | 3000K | >80 | 155.25 | 45 | |
| All on | / | / | / | 371.565 | 27 | |
| DMX RGBW | Red | 622.5nm | 620~630nm | / | 50.025 | 8 |
| Green | 525nm | 520~530nm | / | 136.275 | 21 | |
| Blue | 467.5nm | 465~475nm | / | 30.015 | 5 | |
| White | 3000K | 3000K | >80 | 155.25 | 24 | |
| All on | / | / | / | 371.565 | 21 | |

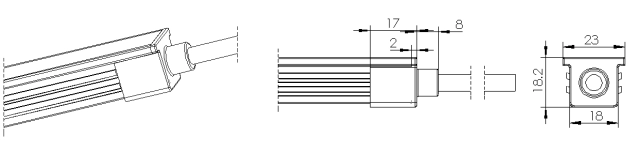

End feeder

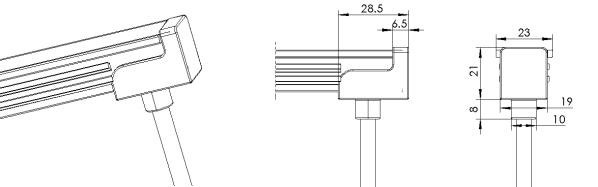

Bottom feeder
