Top bending and Top lighting
Enhanced 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 20cm
Lighting engine for linear luminaries

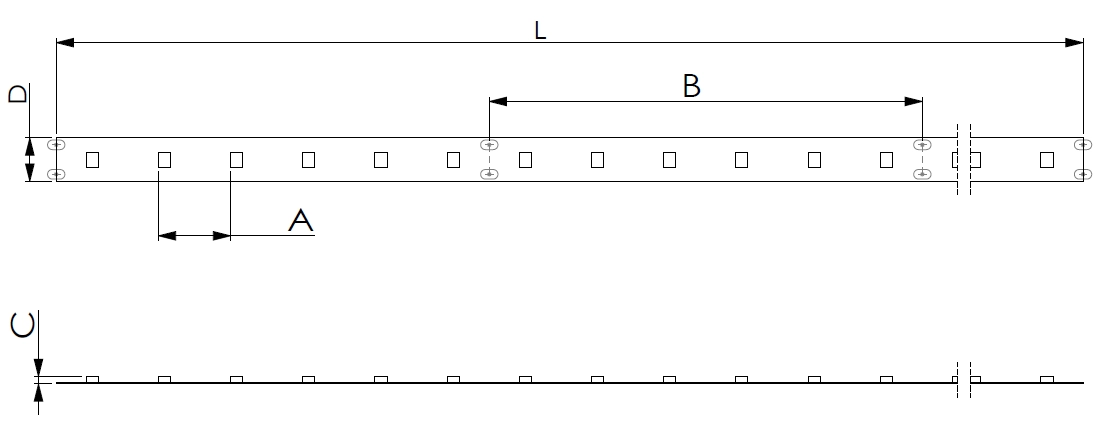

Item | A | B | C | D |
TL1080 | 12.5 | 100 | 1.0(no tape) | 10 |
Notes:
1.Unit: mm
| Ambient temperature range (TA on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (TC) | -40℃ ~ +70℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| ESD protection | Contact 4KV, Air 8KV |
| Item | TL1080 HE-3.6W |
|---|---|
| Supply voltage range (Vdc) | 24.0 ± 1.0 |
| Typ. Power per meter (W) | 3.6 |
| Power range per meter (W) | 3.2~4 |
| Max. length for single end power-in (m) | 5 |
| Max. length for two ends power-in (m) | 10 |
| LED qty per meter (pcs) | 80 |
| Cutting unit length (mm) | 100 |
| Part No. | Colorimetric Parameters | CRI | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | ||
|---|---|---|---|---|---|---|
| Color | Value | Value range | ||||
| TL1080 HE-3.6W | White | 6500K | 6000~7000K | >80 | 651 | 181 |
| White | 5000K | 4800~5300K | >80 | 651 | 181 | |
| White | 4000K | 3800~4150K | >80 | 651 | 181 | |
| White | 3000K | 2950~3150K | >80 | 620 | 172 | |
| White | 2700K | 2650~2850K | >80 | 589 | 164 | |
| White | 6500K | 6000~7000K | >90 | 566 | 157 | |
| White | 5000K | 4800~5300K | >90 | 566 | 157 | |
| White | 4000K | 3800~4150K | >90 | 566 | 157 | |
| White | 3000K | 2950~3150K | >90 | 539 | 150 | |
| White | 2700K | 2650~2850K | >90 | 512 | 142 | |
