Free bending and Twist-able
Enhanced 2835 LED or 5050 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 30cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

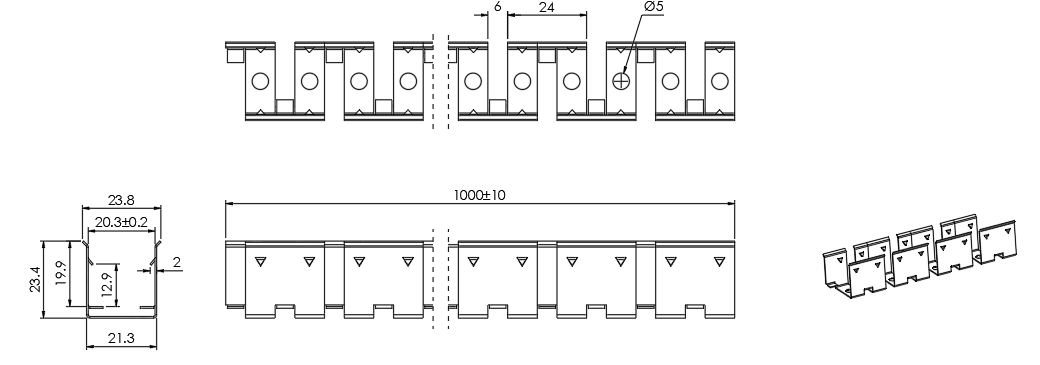

Notes:
1.Unit: mm
2.Weight: 400g/m
| Ambient temperature range (TA on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (TC) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| ESD protection | Contact 4KV, Air 8KV |
| Item | FB2020 HE |
|---|---|
| Supply voltage range (Vdc) | 24.0±1.0 VDC |
| Typ. Power per meter (W) | 12 |
| Power range per meter (W) | 10.8-13.2 |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in (m) | 5 |
| Max. length for two ends power-in (m) | 10 |
| LED qty per meter (pcs) | 140 |
| Cutting unit length (mm) | 50 |
| Part No. | Colorimetric Parameters | CRI | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | ||
|---|---|---|---|---|---|---|
| Color | Value | Value range | ||||
| FB2020 HE | White | 6500K | 6000~7000K | >80 | 1197 | 100 |
| White | 5000K | 4800~5300K | >80 | 1197 | 100 | |
| White | 4000K | 3800~4150K | >80 | 1197 | 100 | |
| White | 3000K | 2950~3150K | >80 | 1140 | 95 | |
| White | 2700K | 2650~2850K | >80 | 1083 | 90 | |
| White | 6500K | 6000~7000K | >90 | 1041 | 87 | |
| White | 5000K | 4800~5300K | >90 | 1041 | 87 | |
| White | 4000K | 3800~4150K | >90 | 1041 | 87 | |
| White | 3000K | 2950~3150K | >90 | 991 | 83 | |
| White | 2700K | 2650~2850K | >90 | 942 | 78 | |

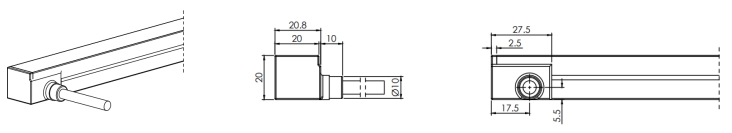

End feed
Bottom feed
Side feed
