Free bending and Twist-able
High efficacy 2835 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
High efficacy up to 100lm/W
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. top bending radius 20cm
Min. side bending radius 40cm
Neon tube light source
Freezer and cooler lighting
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
| Ambient temperature range (TA on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (TC) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | FB2424 HE |
|---|---|
| Supply voltage range (Vdc) | 24.0±1.0 VDC |
| Typ. Power per meter (W) | Typ.24W |
| Power range per meter (W) | 21.6~26.4W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in (m) | 5 meters |
| Max. length for two ends power-in (m) | 10 meters |
| LED qty per meter (pcs) | 140 |
| LED qty per pitch | 7 |
| Cutting unit length (mm) | 50mm |
| Part No. | Colorimetric Parameters | CRI | Min Flux (lm/m) | Typ. Flux (lm/m) | Min Efficacy (lm/W) | Typ. Efficacy (lm/W) | ||
|---|---|---|---|---|---|---|---|---|
| Color | Value | Value range | ||||||
| FB2424 HE | White | 6500K | 6000~7000K | >80 | 2160 | 2400 | 90 | 100 |
| White | 4000K | 3800~4150K | >80 | 2160 | 2400 | 90 | 100 | |
| White | 3000K | 2950~3150K | >80 | 2052 | 2280 | 86 | 95 | |
| White | 2700K | 2650~2850K | >80 | 1949 | 2166 | 81 | 90 | |
| White | 6500K | 6000~7000K | >90 | 1836 | 2040 | 77 | 85 | |
| White | 4000K | 3800~4150K | >90 | 1836 | 2040 | 77 | 85 | |
| White | 3000K | 2950~3150K | >90 | 1744 | 1938 | 73 | 81 | |
| White | 2700K | 2650~2850K | >90 | 1657 | 1841 | 69 | 77 | |
Side feeder

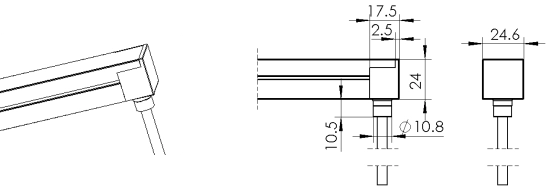

Bottom feed

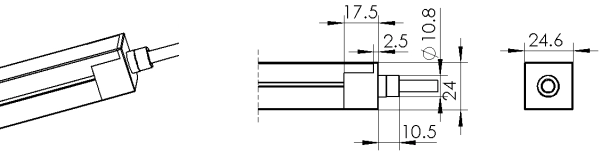

Side feed
