Top bending and Top lighting
Enhance 5050 LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0

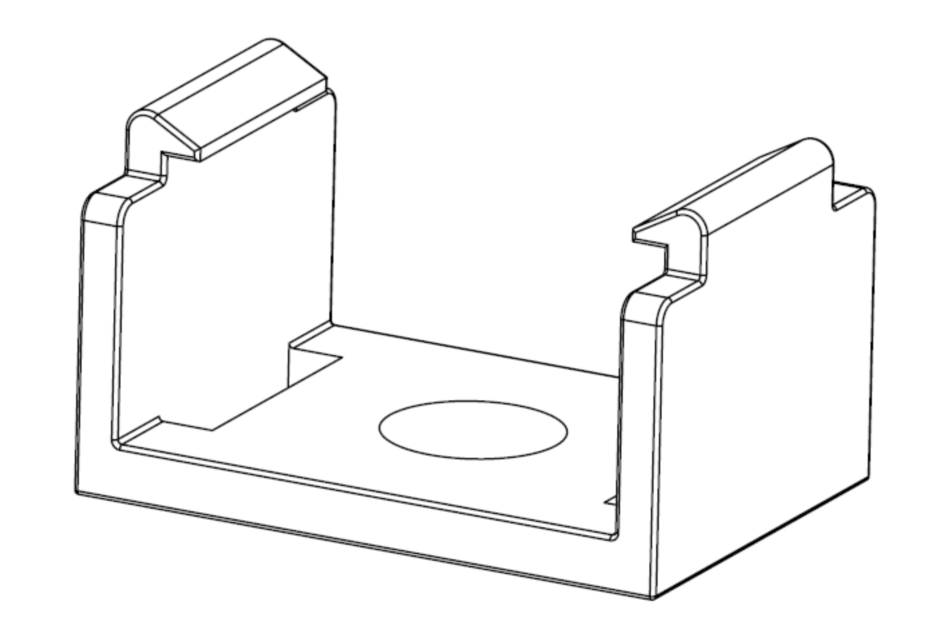

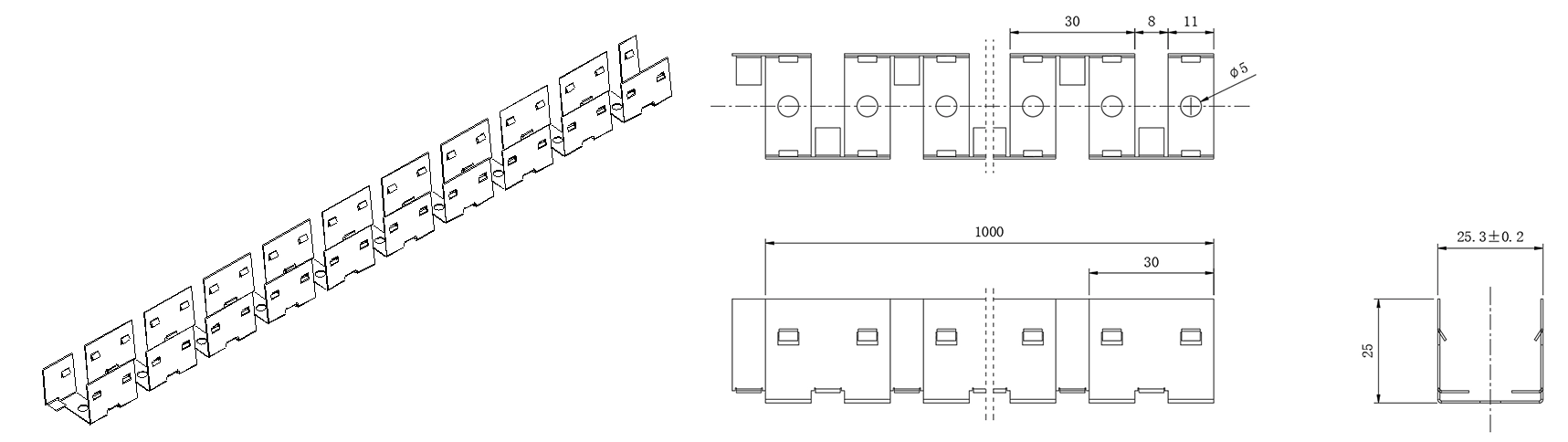

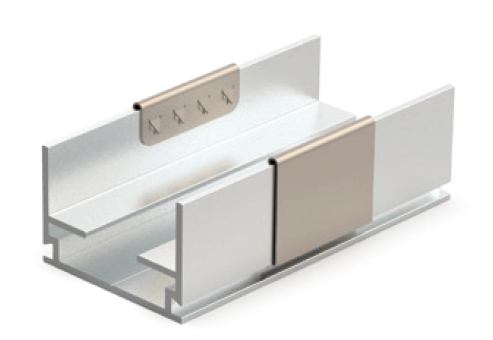

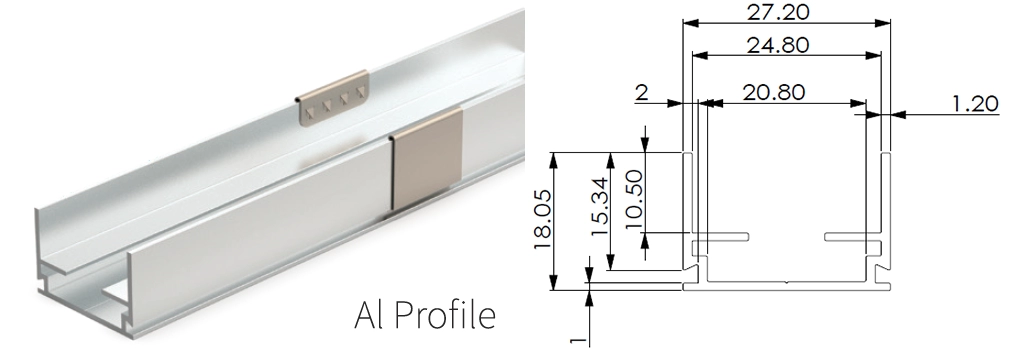

Easy installation and re-connect accessories
Min. bending radius 20cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting
Notes:
1.Unit: mm
2.Strip L = 10meters for 24V in standard configuration
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | DMX RGBW-30W |
|---|---|
| Supply voltage range | 24.0±1.0 VDC |
| Supply Current range (per meter) | Max. 1250mA |
| Power range (per meter) | Max. 12W（RGB）+18W(White) |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters |
| Max. length for two ends power-in | 10 meters |
| Cutting unit length | 100mm |
| Pixels per meter | 10 |
| LED Qty per mtr | 70+70 pcs |
| IC Type | SM18522 |

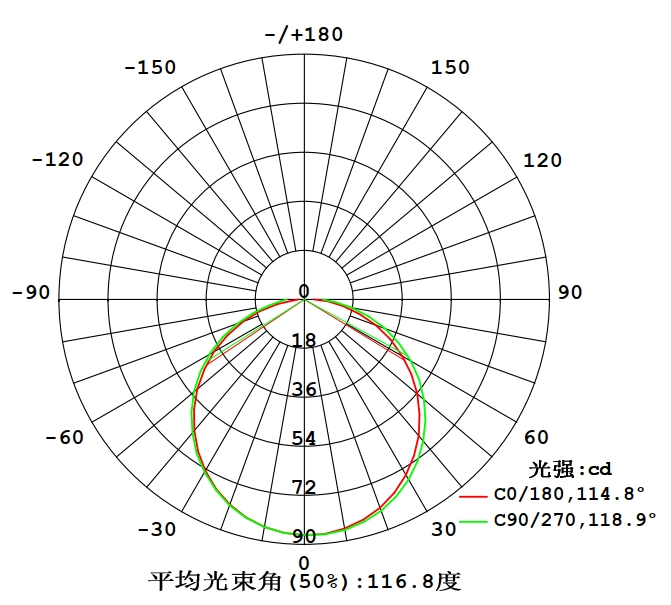

| Part No. | Colorimetric Parameters | Max flux per meter (lm) | ||
|---|---|---|---|---|
| Color | Value | Single color | All on | |
| DMX RGBW-30W | Red | 622.5nm | 105 | 2020 |
| Green | 525nm | 225 | ||
| Blue | 467.5nm | 68 | ||
| White | 3000K@Ra80 | 1625 | ||

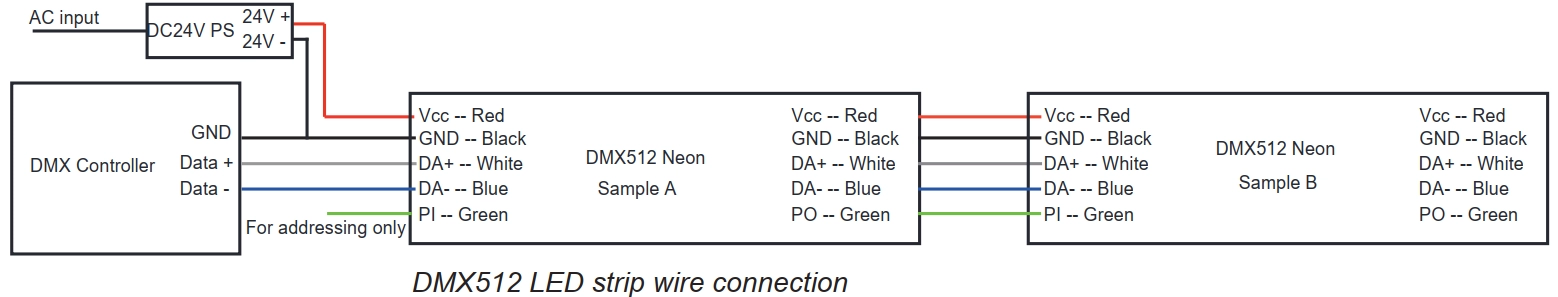

Side feeder
Bottom feeder
End feeder
