Side bending and Top lighting
Lumileds 2835LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP67 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 3cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

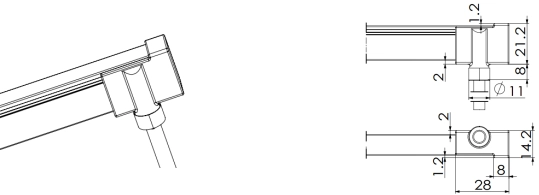

Notes:
1.Unit: mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +65℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NH1118S3 | NH1118S6 |
|---|---|---|
| Supply voltage range | 12.0±1.0 VDC | 24.0±1.0 VDC |
| Supply Current range (per meter) | Typ.1000mA | Typ.500mA |
| Power range (per meter) | Typ.12W | Typ.12W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 5 meters | 10 meters |
| Max. length for two ends power-in | 10 meters | 15 meters |
| Cutting unit length(mm) | 50cm for W/R/G/B/Y products | 100cm for W/R/G/B/Y products |
| Part No. | Colorimetric Parameters | ||
|---|---|---|---|
| Color | Value | Typ. Lumen | |
| NH1118S | White | 6500K | 420 lm/m |
| White | 5500K | 420 lm/m | |
| White | 4300K | 420 lm/m | |
| White | 3000K | 390 lm/m | |
| White | 2700K | 390 lm/m | |
| Red | 621.3nm | 132 lm/m | |
| Green | 529.5nm | 350 lm/m | |
| Blue | 469nm | 75 lm/m | |
| Yellow | TBD | TBD | |
Side feeder-Left
Side feeder-Right
Bottom feeder
End feeder
End cap
Side feeder
Bottom feeder
End feeder
