NV1617T-IP68 Reliable LED flexible neon for underwater application

Top bending and top lighting product,Enhance 5050 LED inside,Dual-color silicone extrusion,UV and yellowish resistant,IP68 and salt-mist proof,L70B50 > 50,000hrs,UL 94 HB,Easy installation and re-connect accessories,Min. bending radius 10 cm,Pass IEC60598-2-18 corrosion test.

Feature

Top bending and top lighting product

Enhance 5050 LED inside

Dual-color silicone extrusion

UV and yellowish resistant

IP68 and salt-mist proof

L70B50 > 50,000hrs

UL 94 HB

Easy installation and re-connect accessories

Min. bending radius 10 cm

Pass IEC60598-2-18 corrosion test.

Application

Swimming pool lighting

Seashore application

Ground application

Building and sign outline lighting

Ships, boats and trucks outline lighting

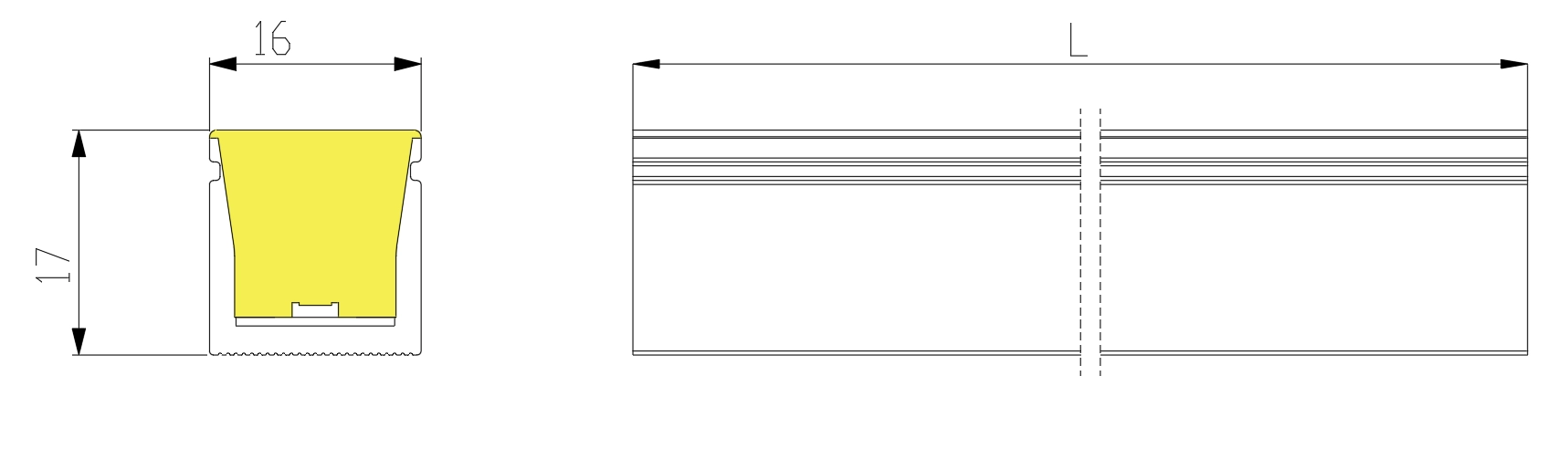

Dimensions and Weight

Notes:

1.Unit: mm

Environmental and Application Conditions

Ambient temperature range (TA on free air)	-40℃ ~ +55℃
Operating (case) temperature range (TC)	-40℃ ~ +65℃
Storage temperature range	-40℃ ~ +85℃
IP rating	IP68

Electrical parameters

Item	Single color	RGB	DMX RGB	RGBW	DMX RGBW
Supply voltage range	24.0 ± 1.0 VDC	24.0 ± 1.0 VDC	24.0 ± 1.0 VDC	24.0 ± 1.0 VDC	24.0 ± 1.0 VDC
Supply Current range (per meter)	Typ. 500mA	Typ. 500mA	Typ. 708mA	Typ. 575mA	Typ. 912mA
Power range (per meter)	Typ. 12W	Typ. 12W	Typ. 17W	Typ. 13.8W	Typ. 21.8W
ESD protection	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV
Max. length for single end power-in	10 meters	10 meters	5 meters	10 meters	5 meters
Max. length for two ends power-in	15 meters	15 meters	10 meters	15 meters	10 meters
LED qty per meter	80	72	72	72	72
Cutting unit length	25mm	83.3mm	83.3mm	83.3mm	83.3mm
Pixel per meter	/	/	12	/	12
IC Type	/	/	SM18522	/	SM18522

Optical parameters

Part No.	Colorimetric Parameters		Product Flux	CRI
Part No.	Color	Value	Typ. Lumen(lm/m)	CRI
Single color	White	6500K	545	90
	White	4000K	545	90
	White	3000K	520	90
	White	2700K	495	90
	Red	622.5nm	200	N.A
	Green	525nm	350	N.A
	Blue	467.5nm	120	N.A
RGB	Red	622.5nm	57	N.A
	Green	525nm	125	N.A
	Blue	467.5nm	22	N.A
DMX RGB	Red	622.5nm	70	N.A
	Green	525nm	153	N.A
	Blue	467.5nm	27	N.A
RGBW	Red	622.5nm	49	N.A
	Green	525nm	108	N.A
	Blue	467.5nm	20	N.A
	White	4000K	176	80
DMX RGBW	Red	622.5nm	70	N.A
	Green	525nm	153	N.A
	Blue	467.5nm	28	N.A
	White	4000K	250	80

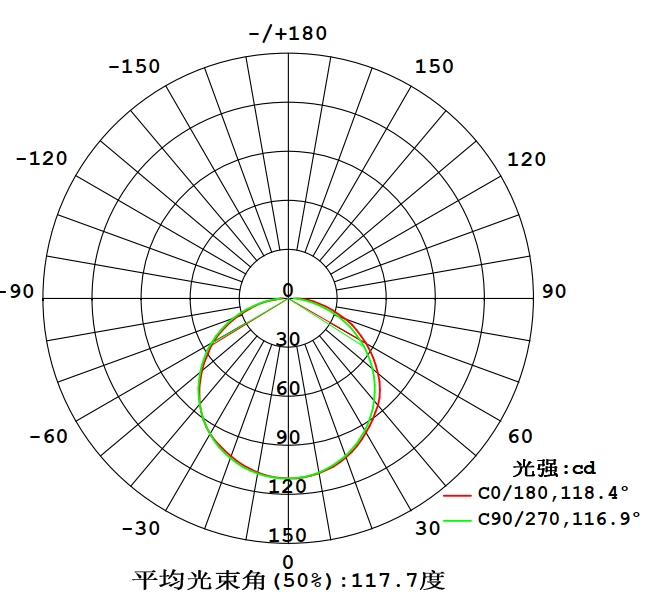

Optional Beam angles:

Connectors

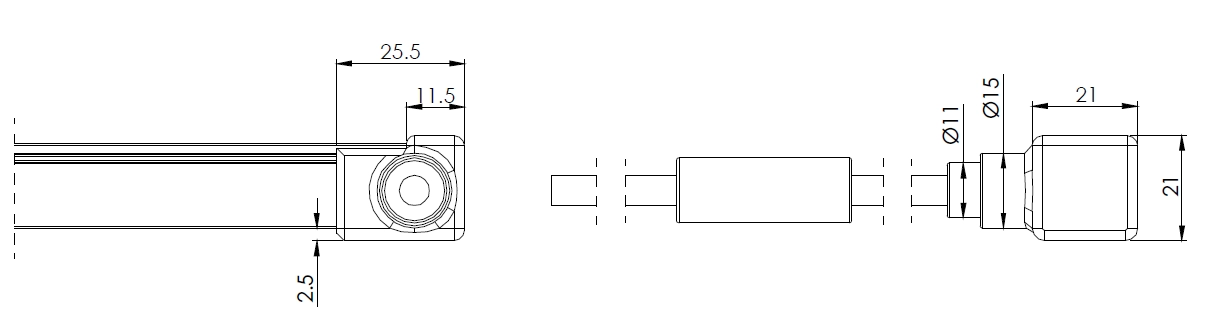

IP68 power feed and end caps by injection

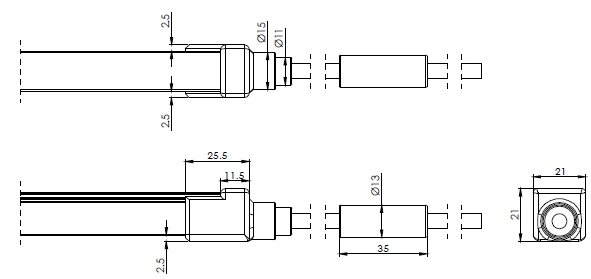

Side feed

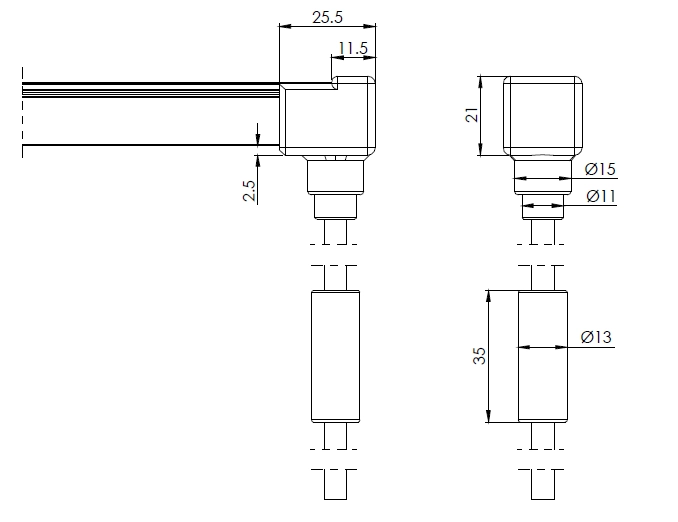

Bottom feed

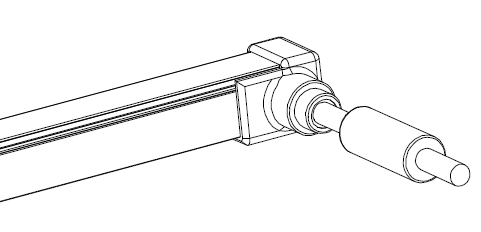

End feed

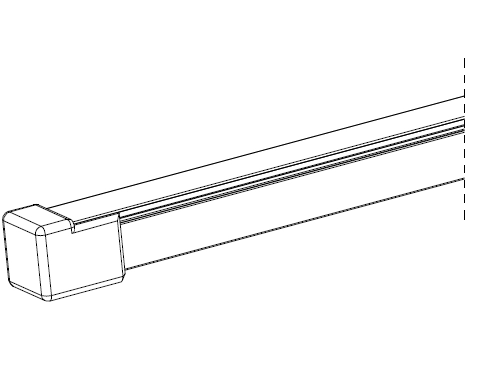

End cap

Installation accessories

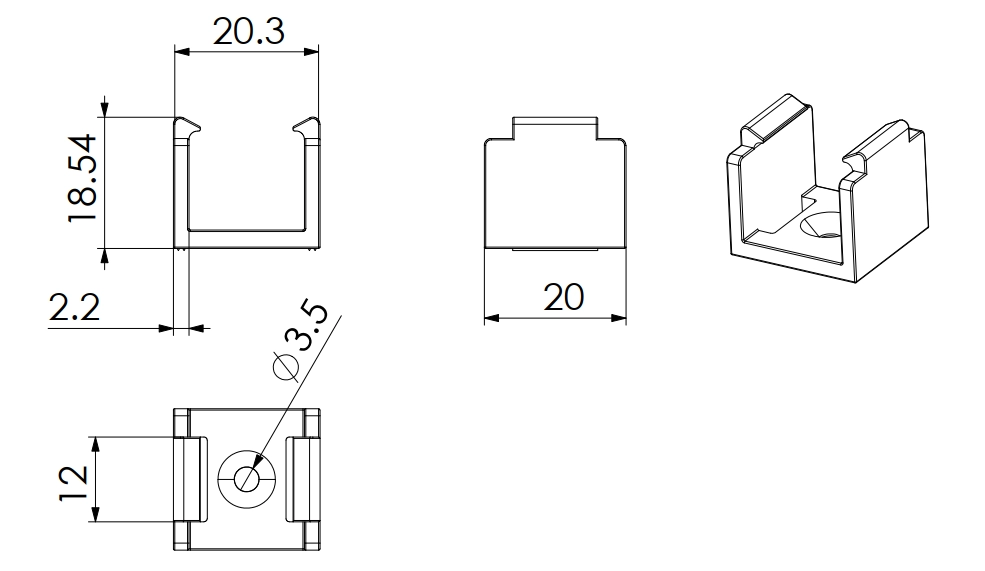

Type 1, PC clips

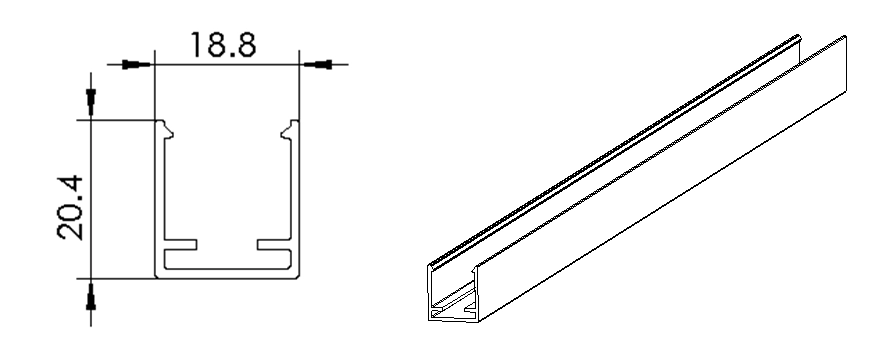

Type 2, PC Profile

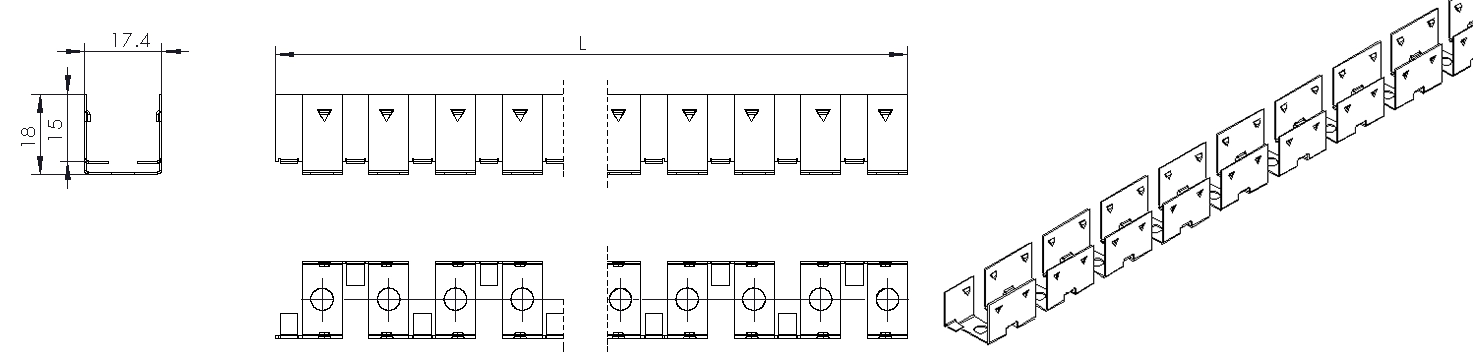

Type 3, SUS316 Stainless steel installation chain for outdoor application

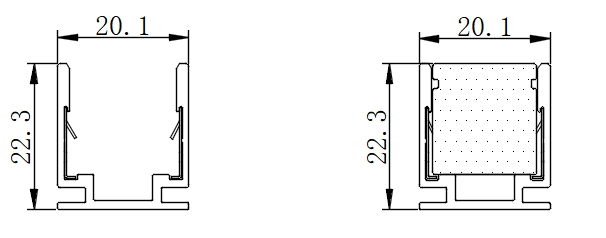

Type 4, AL profile

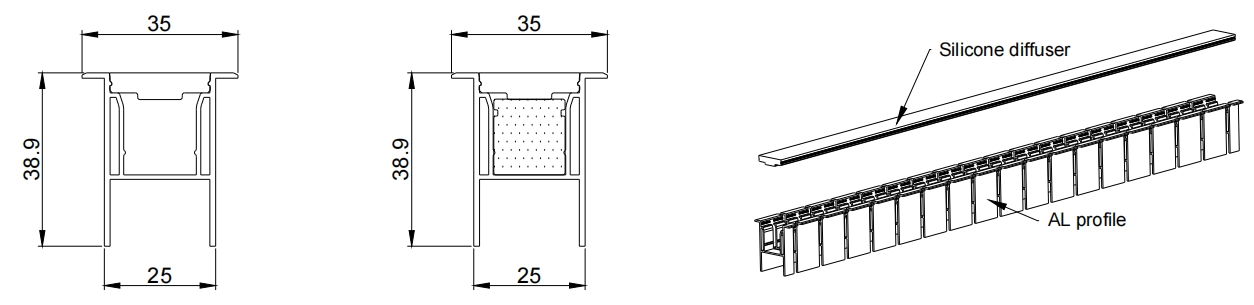

Type 5, AL profile + silicone diffuser for in-ground application

Wire connection

Single color cable: Red for DC24V+, Black for DC24V-

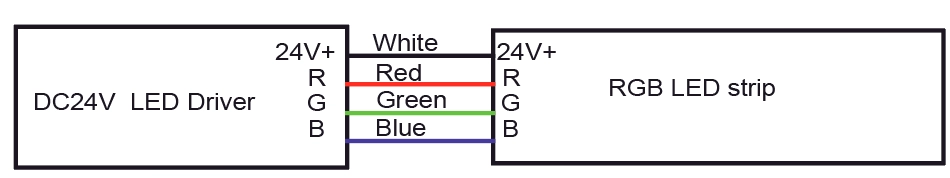

RGB cable: White for DC24V+, Red for R, Blue for B, Green for G

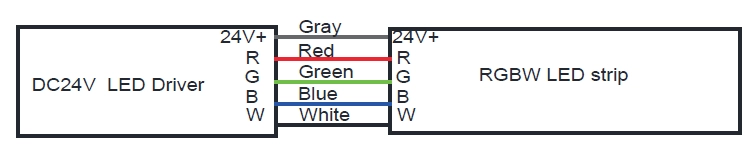

RGBW cable: Gray for DC24V+, Red for R, Blue for B, Green for G, White for W

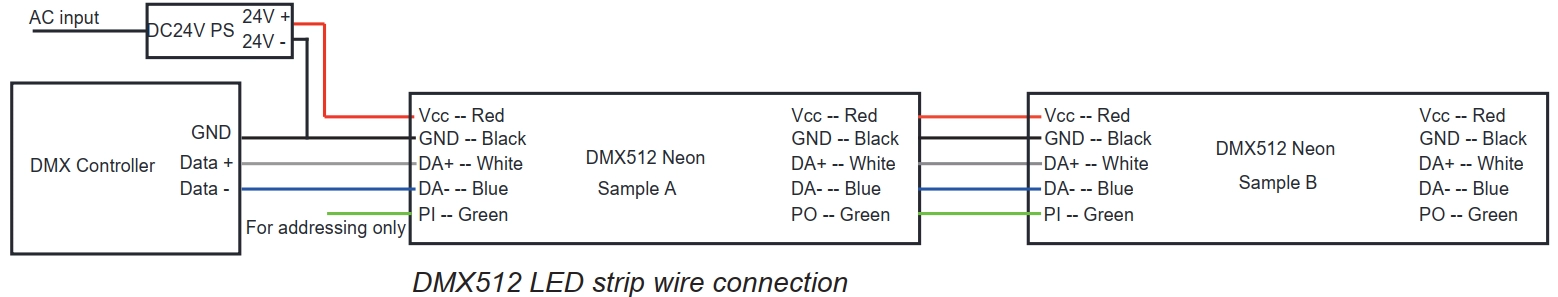

DMX cable: Red for Vcc, Blue for DA-, White for DA+, Green for PI, Black for GND
