Feature

Vertical bend-able

Enhance 5050LEDs Inside

Extruded high-performance silicone housing

UV and yellowish resistant

IP68 and salt-mist proof

L70B50 > 50,000hrs

UL 94 HB

Pass IEC60598-2-18 corrosion test.

Application

Swimming pool lighting

Seashore application

Ground application

Building and sign outline lighting

Ships, boats and trucks outline lighting

Dimensions and Weight

Notes:

1.Unit: mm

2.Weight:195g/m

Environmental and Application Conditions

Ambient temperature range (Ta on free air)	-40~+55℃
Operating (case) temperature range (Tc)	-40~+65℃
Storage temperature range	-40~+85℃
IP rating	IP68
ESD protection	Contact 4KV, Air 8KV

Electrical parameters

Item	Single color	RGB	RGBW
Supply voltage range (Vdc)	24.0 ± 1.0	24.0 ± 1.0	24.0 ± 1.0
Typ. Power per meter (W)	12	12	13.8
Power range per meter (W)	10.8~13.2	10.8~13.2	12.4~15.2
ESD protection	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV	Contact 4KV, Air 8KV
Max. length for single end power-in (m)	10	10	10
Max. length for two ends power-in (m)	15	15	15
LED qty per meter (pcs)	60	60	60
Cutting unit length (mm)	16.67	100	100

Optical parameters (ta=25℃)

Part No.	Colorimetric Parameters			CRI	Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
Part No.	Color	Value	Value range	CRI	Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
Single color	White	6500K	6000~7000K	>80	893	74
	White	5000K	4800~5300K	>80	893	74
	White	4000K	3800~4150K	>80	893	74
	White	3000K	2950~3150K	>80	850	71
	White	2700K	2650~2850K	>80	808	67
	White	6500K	6000~7000K	>90	776	65
	White	5000K	4800~5300K	>90	776	65
	White	4000K	3800~4150K	>90	776	65
	White	3000K	2950~3150K	>90	739	62
	White	2700K	2650~2850K	>90	702	59
RGB	Red	622.5nm	620~630nm	/	97	24
	Green	525nm	520~530nm	/	213	53
	Blue	467.5nm	465~475nm	/	37	9
	All on	/	/	/	347	29
RGBW	Red	622.5nm	620~630nm	/	83	24
	Green	525nm	520~530nm	/	184	53
	Blue	467.5nm	465~475nm	/	34	10
	White	3000K	2950~3150K	>80	299	87
	All on	/	/	/	600	43

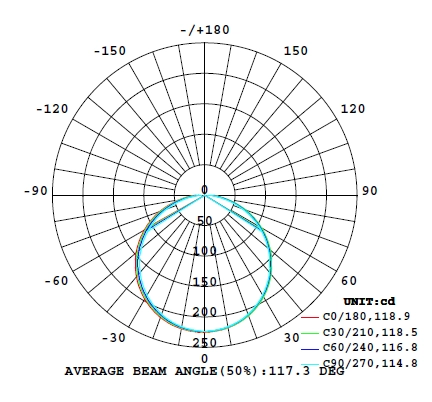

Optional Beam angles:

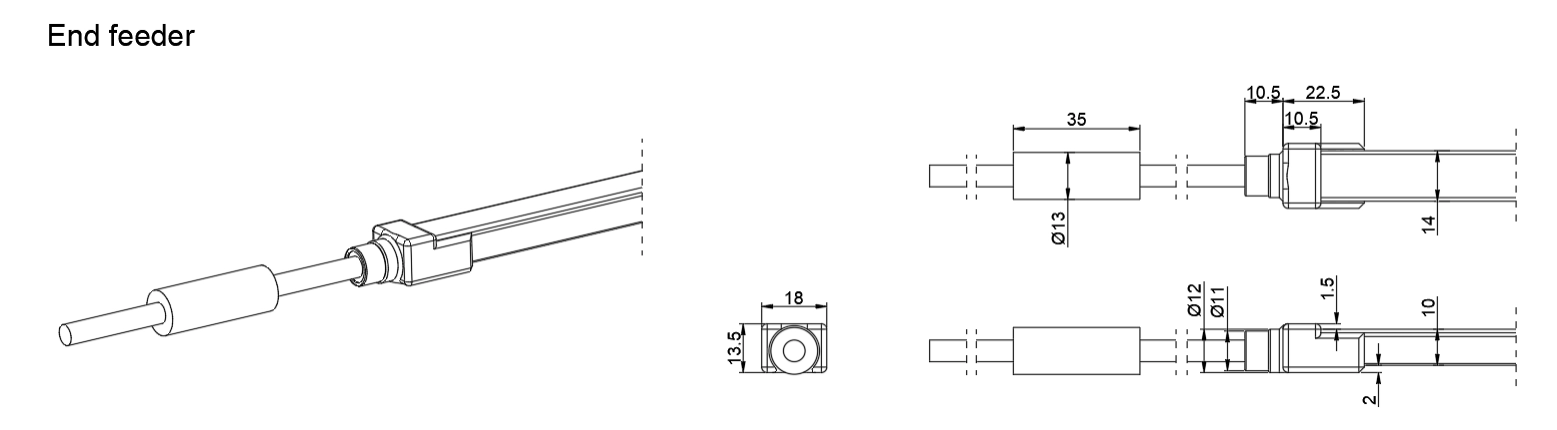

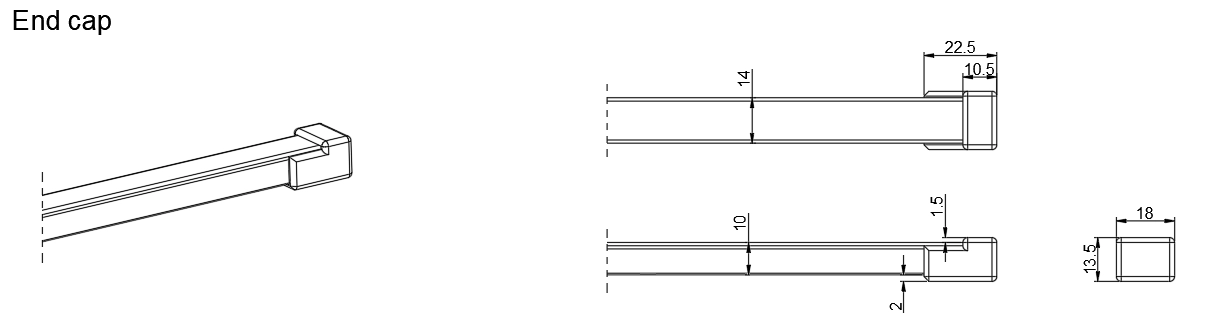

Connectors

Recessed mount

Installation accessories

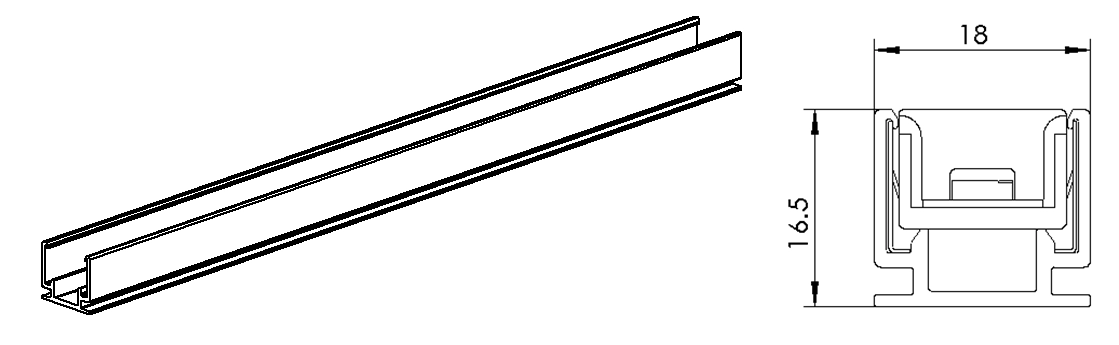

Type1, AL profile for outdoor application (1meter per pcs, can be cut to any length needed)

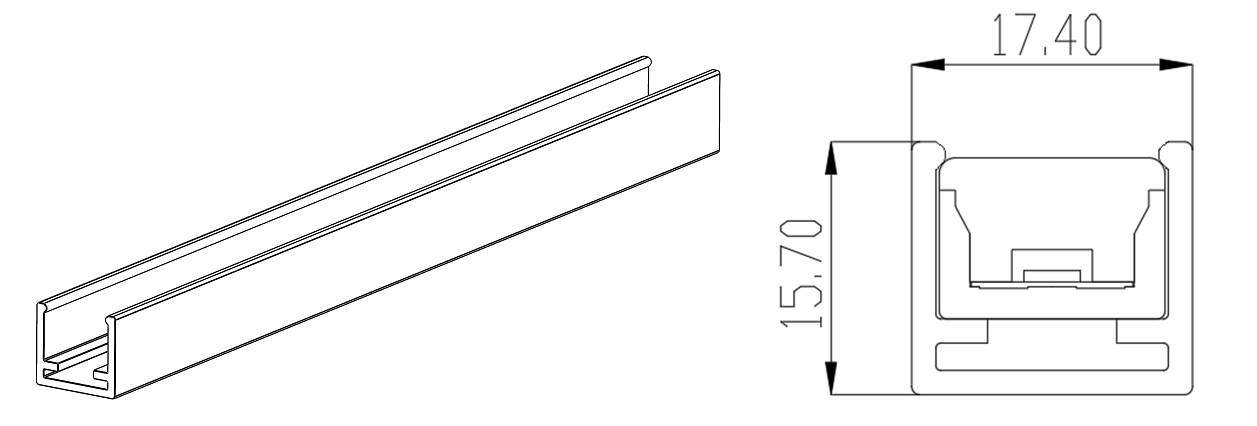

Type 2 PC profile

Wire connection

Single color cable: Red for DC24V+, Black for DC24V-

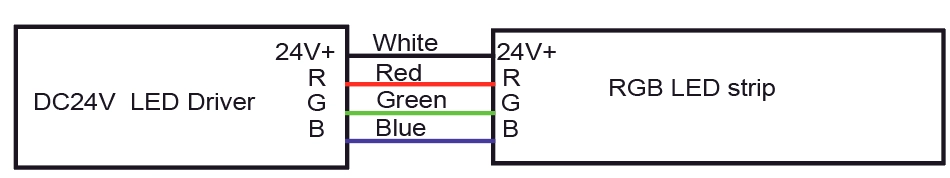

RGB cable: White for DC24V+, Red for R, Blue for B, Green for G

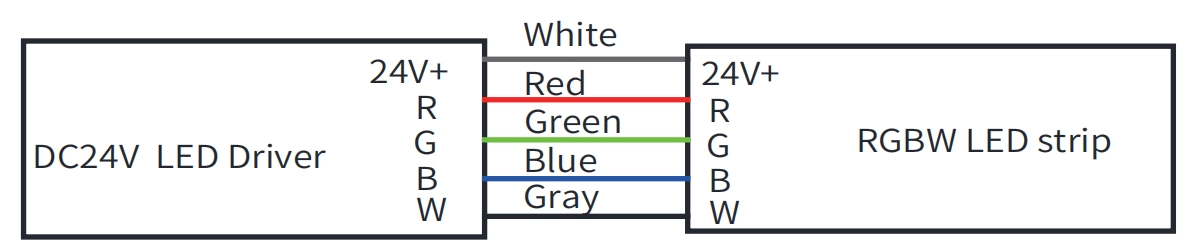

RGBW cable: Gray for DC24V+, Red for R, Blue for B, Green for G, White for W
