NF1418S The flexible LED linear

Side bend AL Chain+ silicone diffuser,Uniformity lighting surface,Side bending,Easy installation,IP65 and salt-mist proof,L70B50 > 50,000hrs,UL 94 V-0,Easy installation and re-connect accessories,Min. bending radius 15 cm

Feature

Side bend AL Chain+ silicone diffuser

Uniformity lighting surface

Side bending

Easy installation

IP65 and salt-mist proof

L70B50 > 50,000hrs

UL 94 V-0

Easy installation and re-connect accessories

Min. bending radius 15 cm

Application

Indoor linear illumination

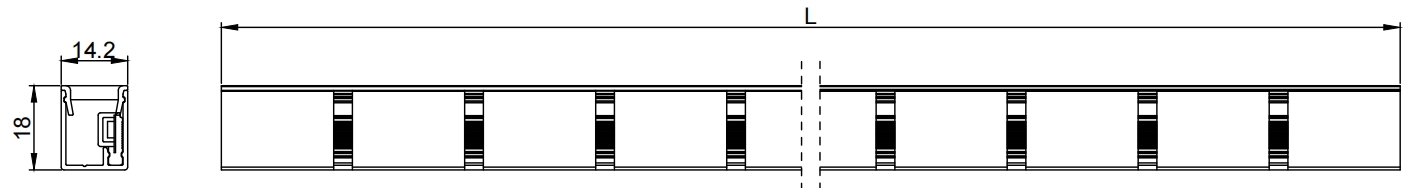

Dimensions and Weight

Notes:

1.Unit: mm

2.Weight: 230g/m

Environmental and Application Conditions

Ambient temperature range (Ta on free air)	-40℃ ~ +55℃
Operating (case) temperature range (Tc)	-40℃ ~ +65℃
Storage temperature range	-40℃ ~ +85℃
IP rating	IP65
ESD protection	Contact 4KV, Air 8KV

Electrical parameters

Item	Single color	TW
Supply voltage range (Vdc)	24.0 ± 1.0	24.0 ± 1.0
Typ. Power per meter (W)	10	10
Power range per meter(W)	9~11	9~11
Max. length for single end power-in(m)	10	10
Max. length for two ends power-in (m)	15	15
LED qty per meter (pcs)	120	216
Cutting unit length (mm)	50	55.5

Optical parameters

Part No.	Colorimetric Parameters				Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
	Color	Value	Value range	CRI	Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
Single color	White	6500K	6000~7000K	>80	389	39
	White	5000K	4800~5300K	>80	389	39
	White	4000K	3800~4150K	>80	389	39
	White	3000K	2950~3150K	>80	370	37
	White	2700K	2650~2850K	>80	352	35
	White	6500K	6000~7000K	>90	330	33
	White	5000K	4800~5300K	>90	330	33
	White	4000K	3800~4150K	>90	330	33
	White	3000K	2950~3150K	>90	315	31
	White	2700K	2650~2850K	>90	299	30
	Red	622.5nm	620~630nm	/	120	12
	Green	525nm	520~530nm	/	270	27
	Blue	467.5nm	465~475nm	/	68	7
TW	White	6500K	6000~7000K	>80	410	41
TW	White	2700K	2650~2850K	>80	371	37

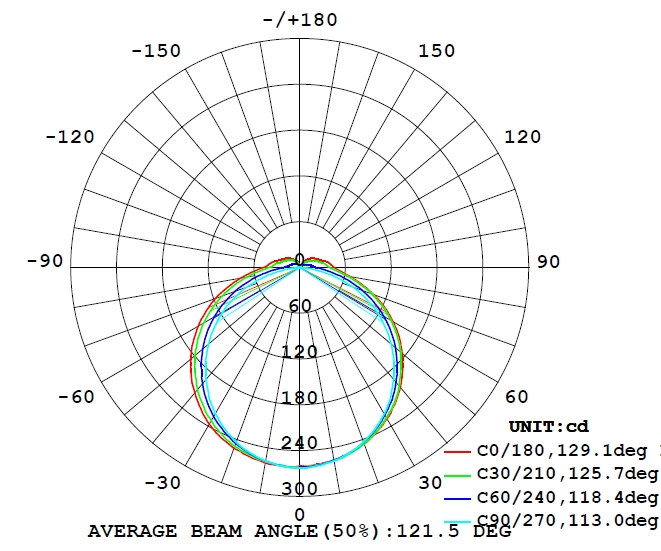

Optional Beam angles:

Installation guide

Recessed mount

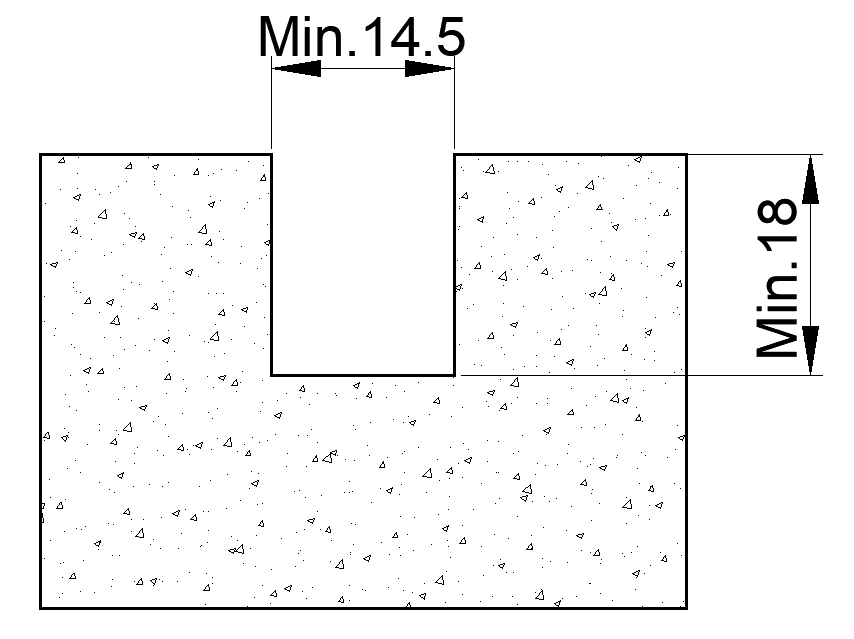

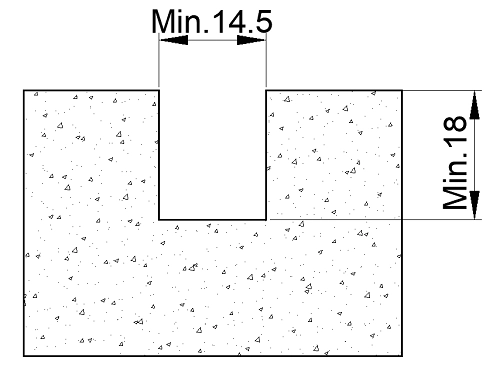

Grooving on the installation surface

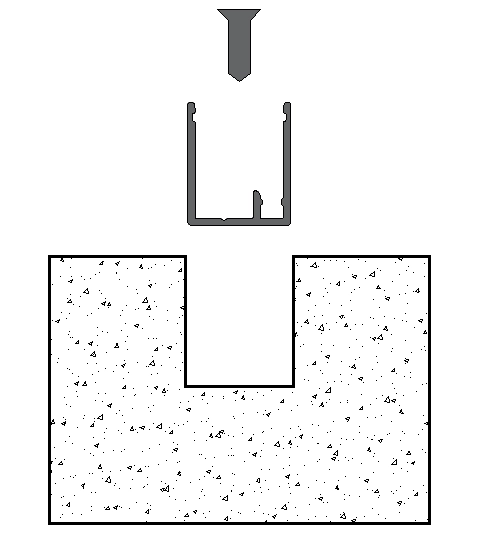

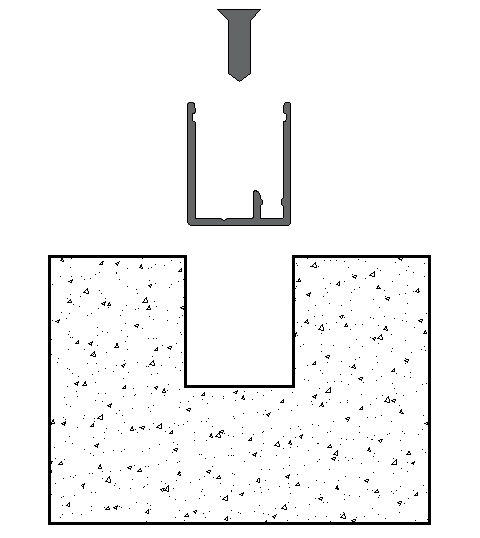

Fix the AL profile into the groove with 3.5mm screws

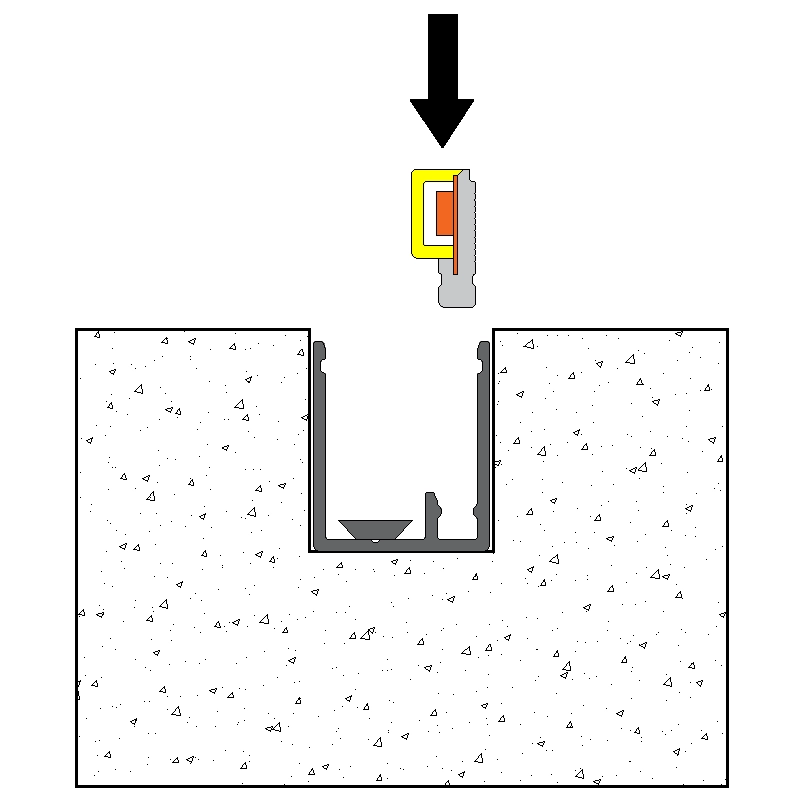

Press the LED strip into the AL profile

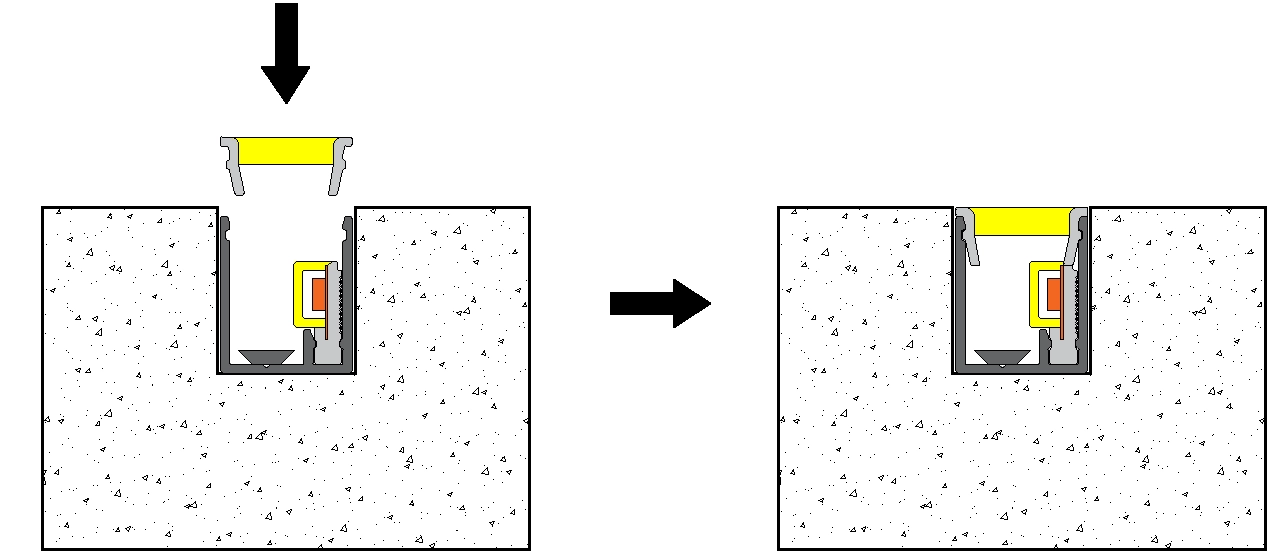

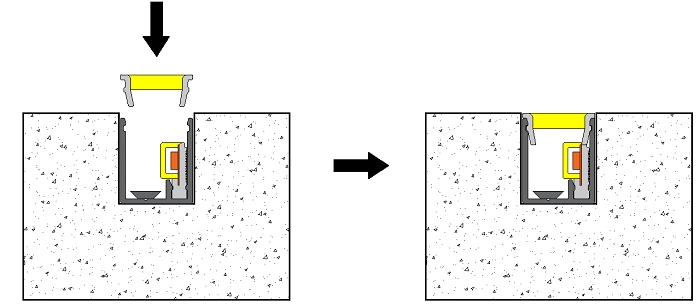

Press the silicone diffuser into the AL profile

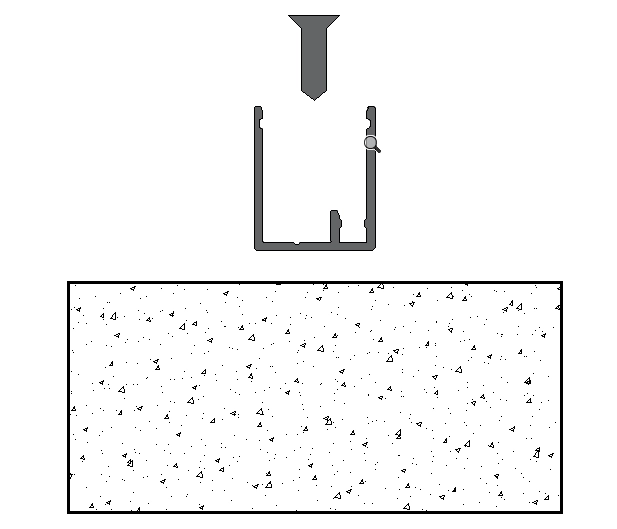

Surface mount

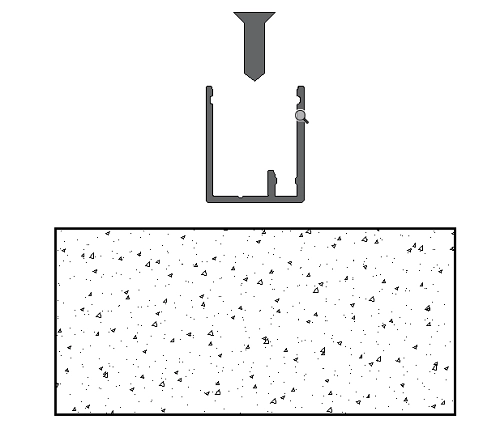

Fix the AL profile into the installation
surface with 3.5mm screws

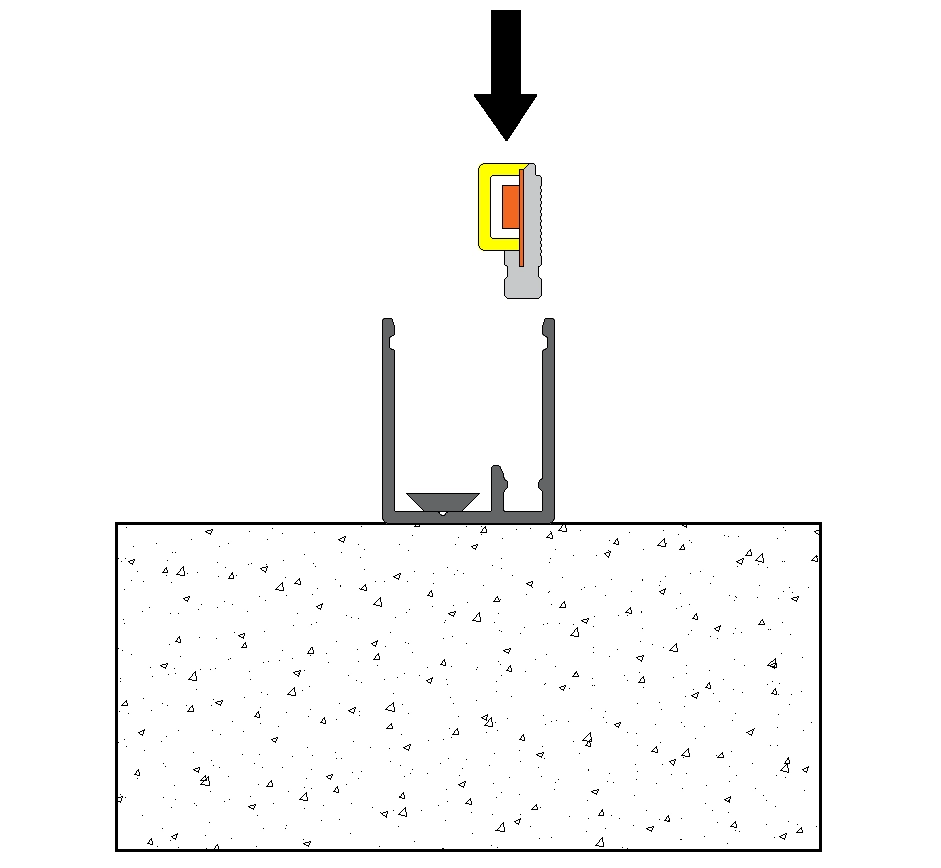

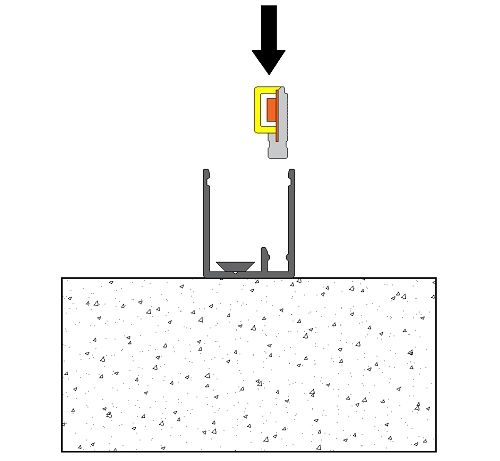

Press the LED strip into AL profile

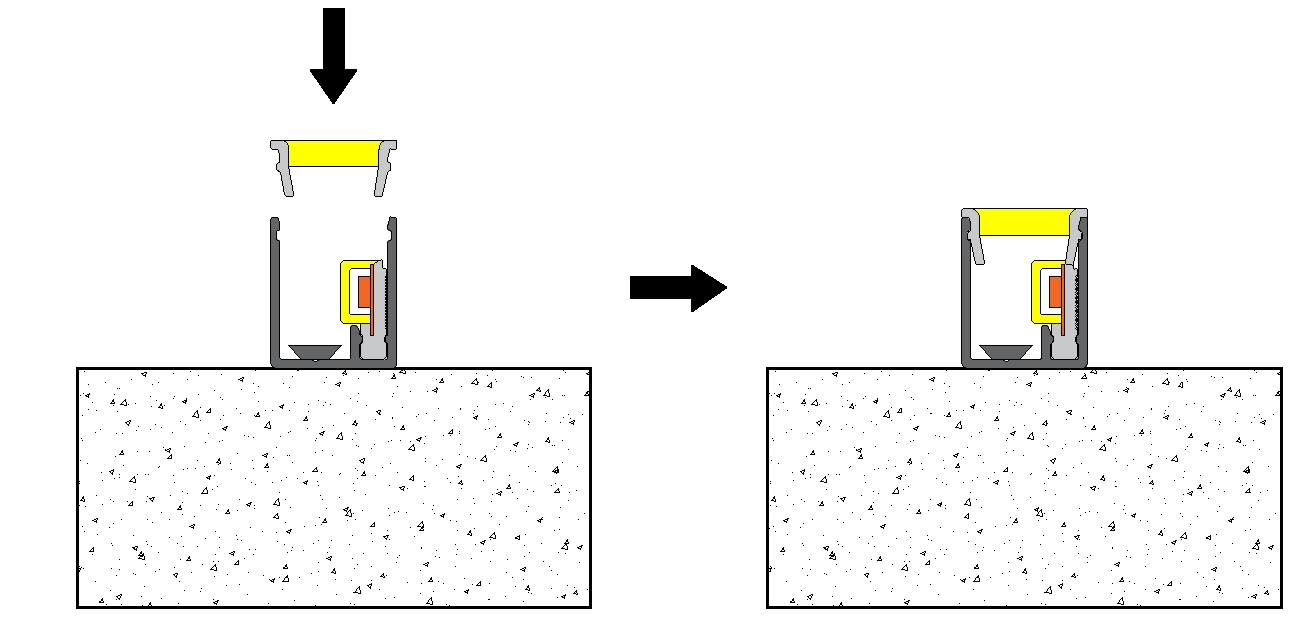

Press the silicone diffuser into AL profile

Wire connection

Single color wire information

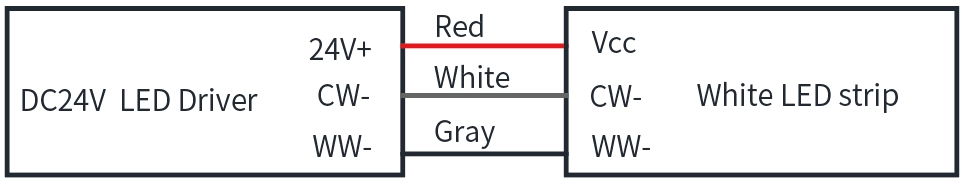

TW wire information
