Free bend AL Chain+ silicone diffuser
Uniformity lighting surface
Flexible bending
Easy installation
IP65 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 15 cm
Indoor linear illumination

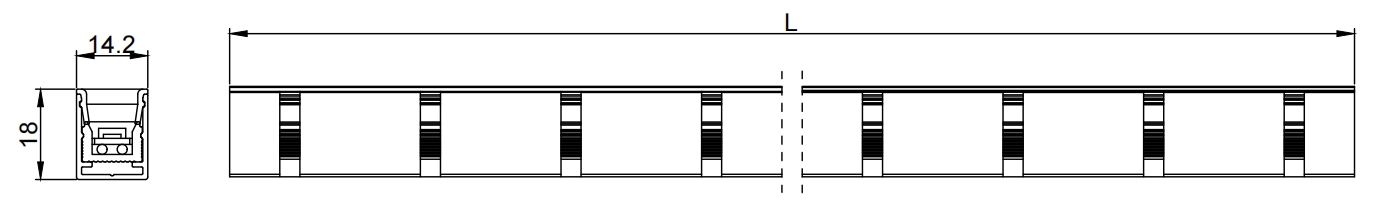

Notes:
1.Unit: mm
2.Weight: 300g/m
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP65 |
| ESD protection | Contact 4KV, Air 8KV |
| Item | Single color | TW |
| Supply voltage range (Vdc) | 24.0 ± 1.0 | 24.0 ± 1.0 |
| Typ. Power per meter (W) | 10 | 10 |
| Power range per meter(W) | 9~11 | 9~11 |
| Max. length for single end power-in(m) | 10 | 10 |
| Max. length for two ends power-in (m) | 15 | 15 |
| LED qty per meter (pcs) | 120 | 105+105 |
| Cutting unit length (mm) | 50 | 28.6 |
| Part No. | Colorimetric Parameters | Typ. Flux (lm/m) | Typ. Efficacy (lm/W) | |||
| Color | Value | Value range | CRI | |||
| Single color | White | 6500K | 6000~7000K | >80 | 683 | 68 |
| White | 5000K | 4800~5300K | >80 | 683 | 68 | |
| White | 4000K | 3800~4150K | >80 | 683 | 68 | |
| White | 3000K | 2950~3150K | >80 | 650 | 65 | |
| White | 2700K | 2650~2850K | >80 | 618 | 62 | |
| White | 6500K | 6000~7000K | >90 | 580 | 58 | |
| White | 5000K | 4800~5300K | >90 | 580 | 58 | |
| White | 4000K | 3800~4150K | >90 | 580 | 58 | |
| White | 3000K | 2950~3150K | >90 | 553 | 55 | |
| White | 2700K | 2650~2850K | >90 | 525 | 52 | |
| Red | 622.5nm | 620~630nm | / | 100 | 10 | |
| Green | 525nm | 520~530nm | / | 230 | 23 | |
| Blue | 467.5nm | 465~475nm | / | 56 | 6 | |
| TW | White | 6500K | 6000~7000K | >80 | 660 | 66 |
| White | 2700K | 2650~2850K | >80 | 590 | 59 | |

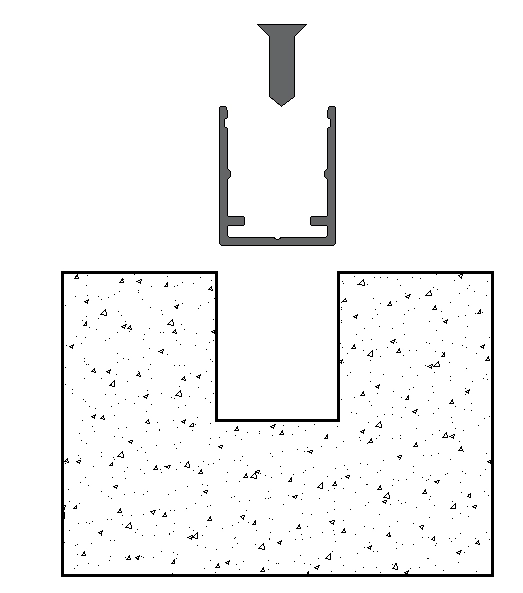

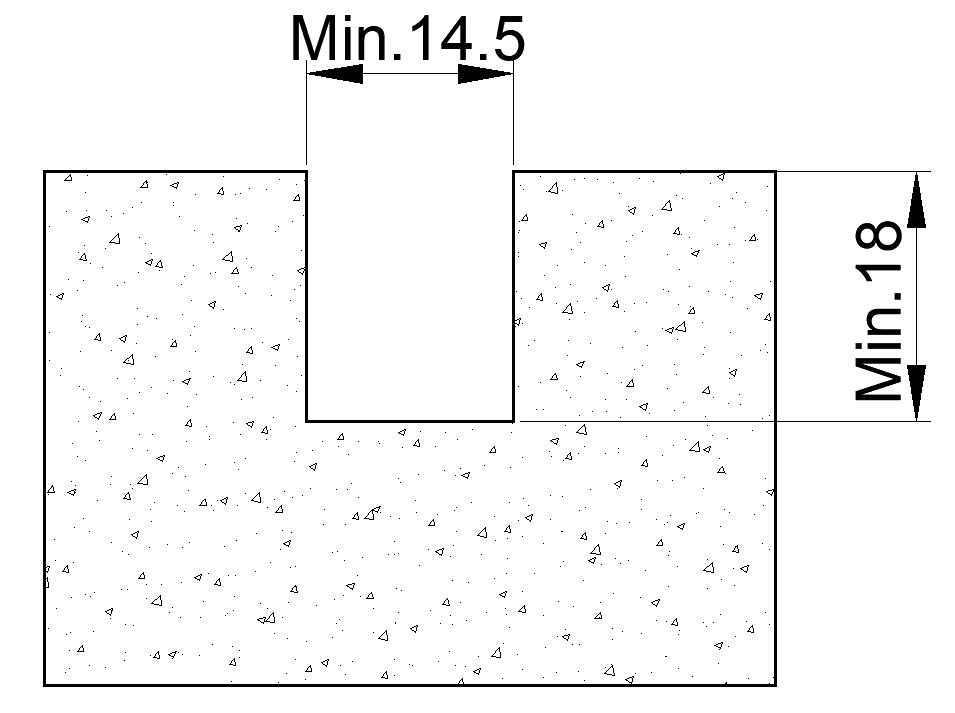

Grooving on the installation surface
Fix the AL profile into the groove with 3.5mm screws

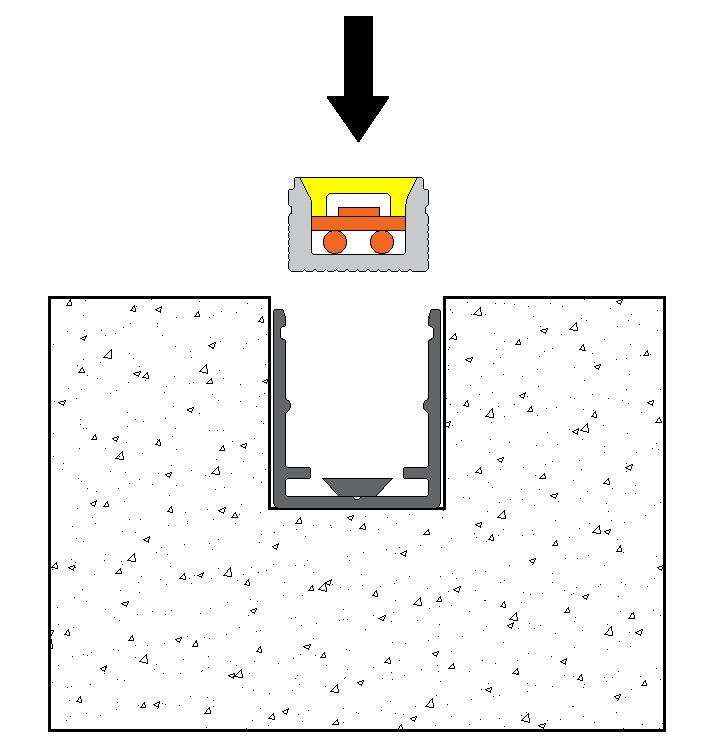

Press the LED strip into the AL profile

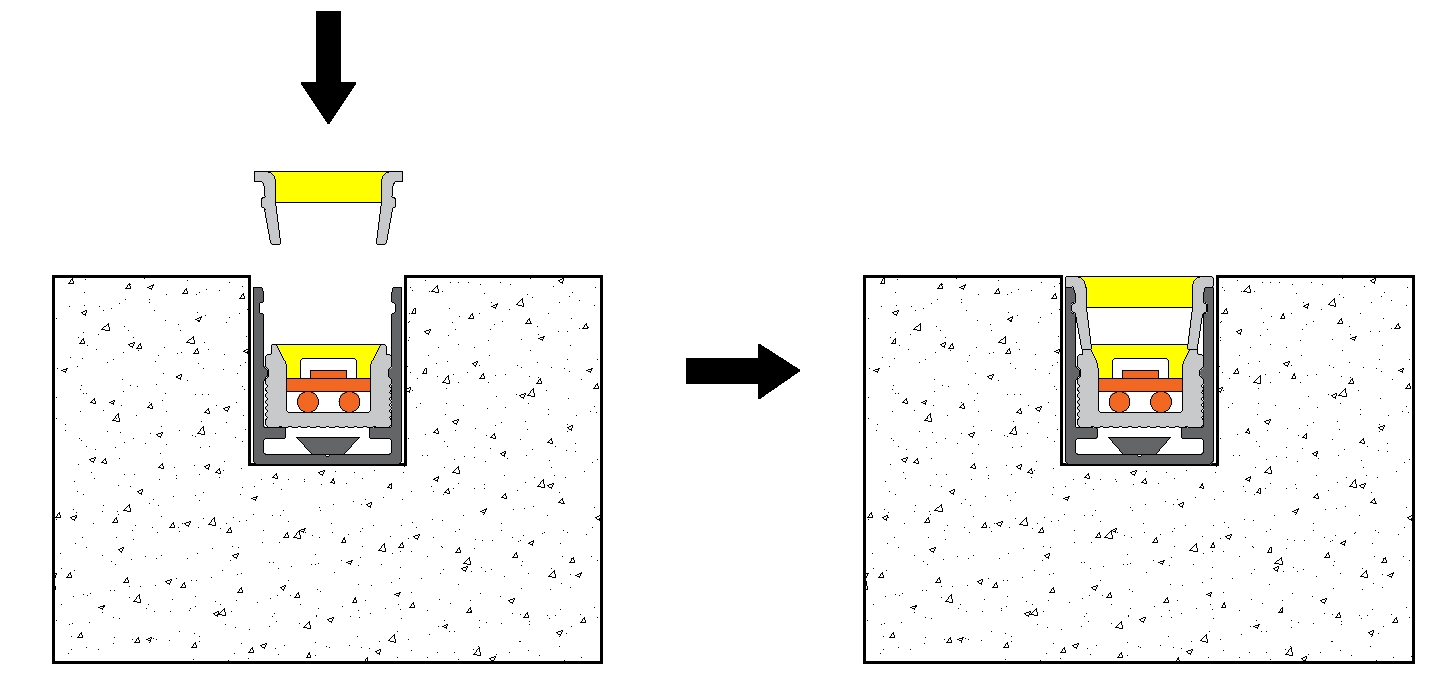

Press the silicone diffuser into the AL profile

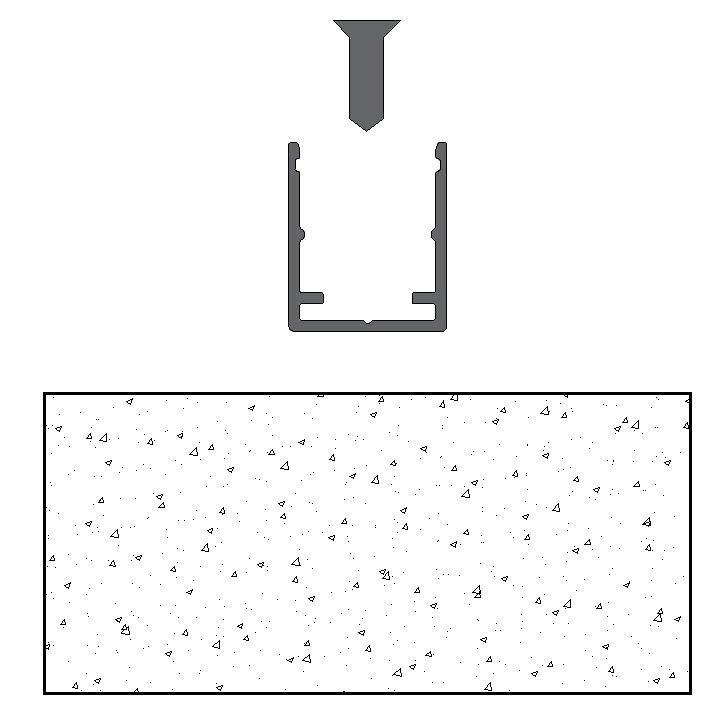

Fix the AL profile into the installation
surface with 3.5mm screws

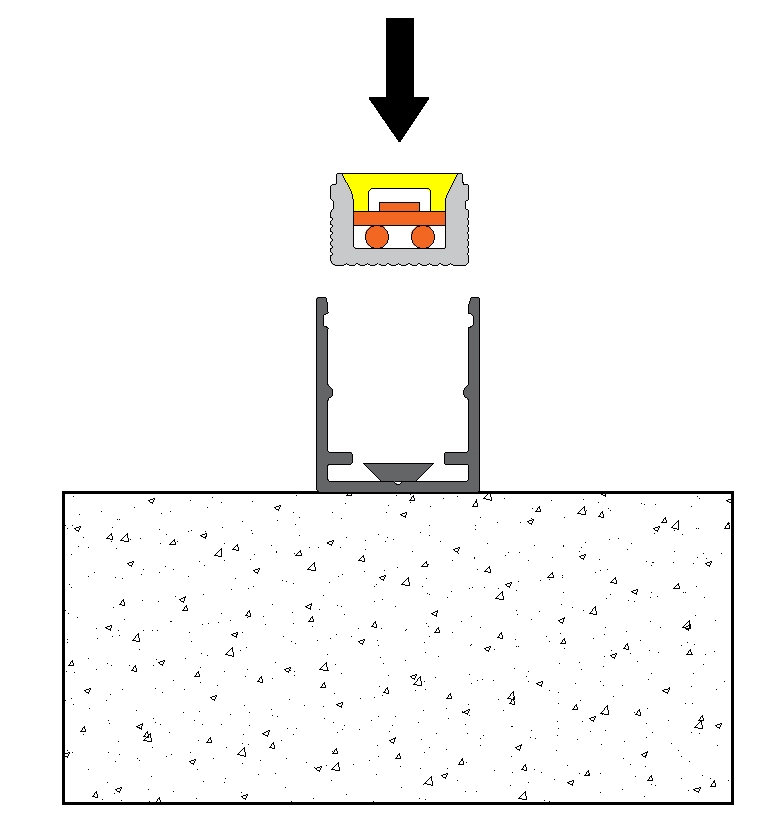

Press the LED strip into AL profile

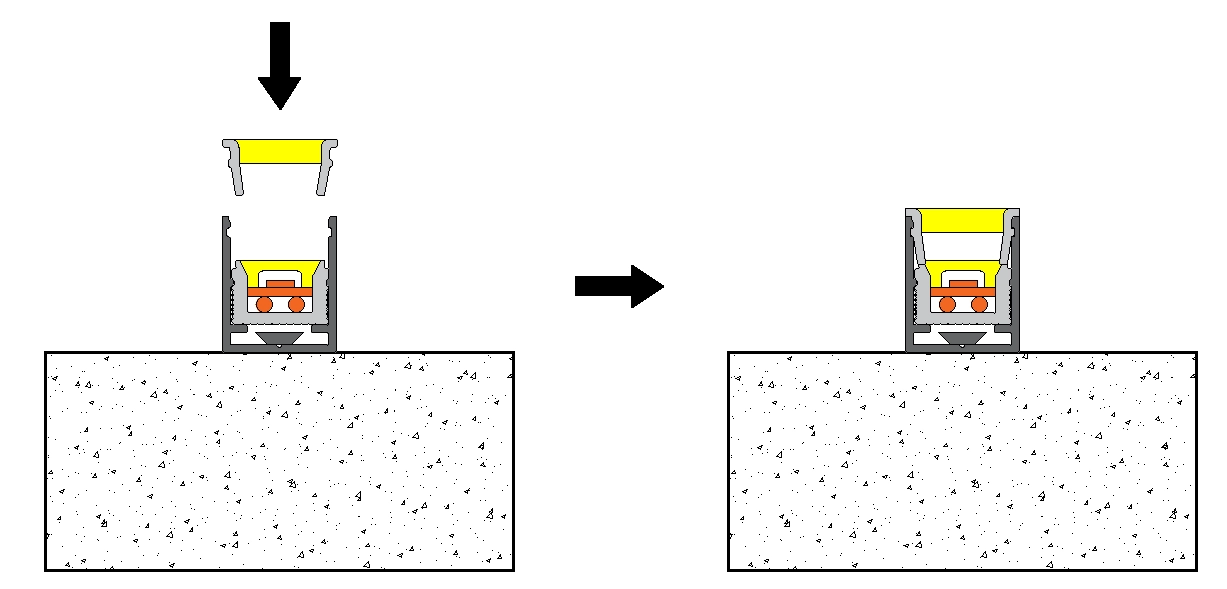

Press the silicone diffuser into AL profile
