Side bending and Top lighting
Enhanced SMT LED inside
Dual-color silicone extrusion
UV and yellowish resistant
IP65 and salt-mist proof
L70B50 > 50,000hrs
UL 94 V-0
Easy installation and re-connect accessories
Min. bending radius 3cm
Neon tube light source
Building and sign outline lighting
General and cove lighting
Ships, boats and trucks outline lighting
Bathroom, spa room lighting

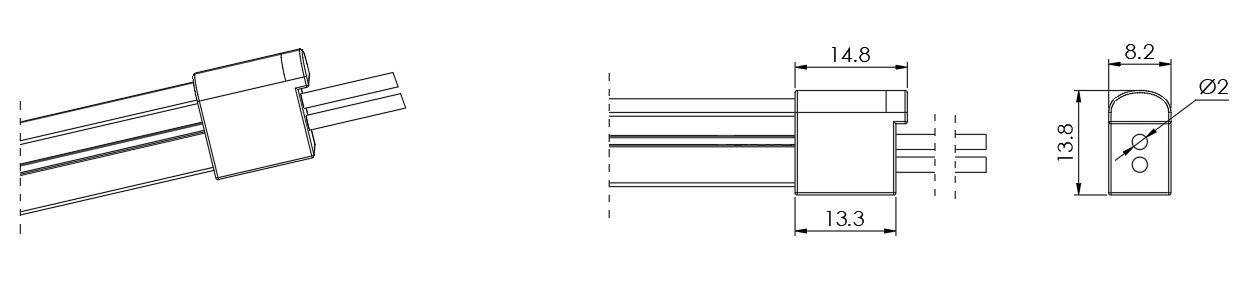

Notes:
1.Unit: mm
2.Strip L = 5meters for 12V in standard configuration
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP67 |
| Item | NH0611S |
|---|---|
| Supply voltage range | 24.0±1.0 VDC |
| Supply Current range (per meter) | Typ.800mA |
| Power range (per meter) | Typ.9.6W |
| ESD protection | Contact 4KV, Air 8KV |
| Max. length for single end power-in | 3 meters |
| Max. length for two ends power-in | 5 meters |
| Cutting unit length | 8.33mm for white/red/yellow 6.25mm for green/blue |
| Part No. | Colorimetric Parameters | Product Flux | ||
|---|---|---|---|---|
| Color | Value | Typ.Lumen | CRI | |
| DMX RGBW-30W | White | 6500K | 580 lm/m | Ra 80 |
| White | 4000K | 580 lm/m | Ra 80 | |
| White | 3000K | 520 lm/m | Ra 80 | |
| White | 2700K | 520 lm/m | Ra 80 | |
| Red lighting and red jacket | 631nm | 27 lm/m | N.A | |
| Green lighting and red jacket | 525nm | 37 lm/m | N.A | |
| Blue lighting and red jacket | 463nm | 13 lm/m | N.A | |
| Yellow lighting and red jacket | 591nm | TBD | N.A | |

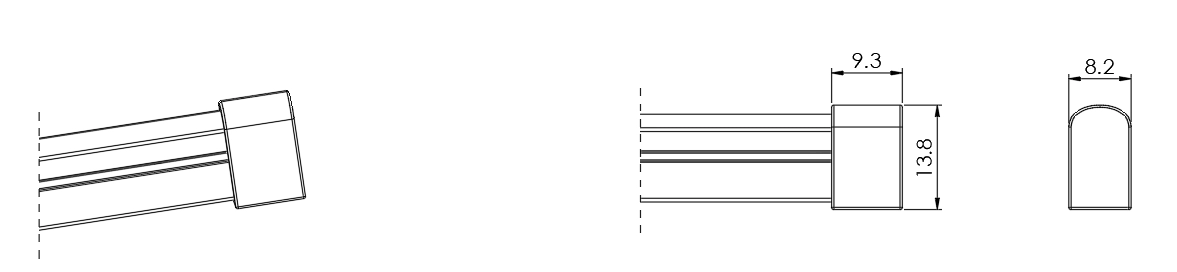

End cap
