Side bending and Top lighting

Enhanced 2835 LED inside

Dual-color silicone extrusion

UV and yellowish resistant

IP67 and salt-mist proof

Max. 50 meters length for single power-in

L70B50 > 50,000hrs

UL 94 V-0

Easy installation and re-connect accessories

Min. bending radius 20cm

Neon tube light source

Freezer and cooler lighting

Building and sign outline lighting

General and cove lighting

Ships, boats and trucks outline lighting

Bathroom, spa room lighting

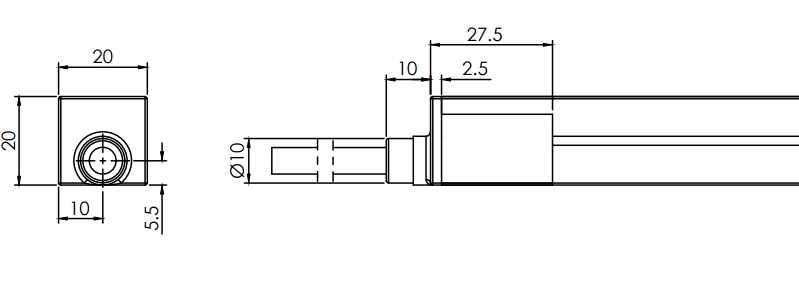

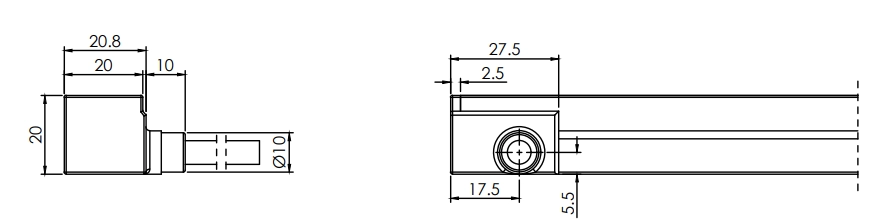

Notes:

1.Unit: mm

2.Weight: 450g/m

Ambient temperature range (Ta on free air)	-40℃ ~ +55℃
Operating (case) temperature range (Tc)	-40℃ ~ +65℃
Storage temperature range	-40℃ ~ +85℃
IP rating	IP67
ESD protection	Contact 4KV, Air 8KV

Item	NH2020S-EL-12W	NH2020S-EL-9W	NH2020S-EL-6W	NH2020S-EL-4W
Supply voltage range (Vdc)	48.0±1.0	48.0±1.0	48.0±1.0	48.0±1.0
Typ. Power per meter (W)	12	9	6	4
Power range per meter (W)	10.8~13.2	8.1~9.9	5.4~6.6	3.6~4.4
Max. length for single end power-in (m)	34	40	50	50
LED qty per meter (pcs)	130	130	130	130
Cutting unit length (mm)	100	100	100	100

*The given data are typical values test at 25℃, measurement tolerance +/-10%.

Part No.	Colorimetric Parameters				Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
Part No.	Color	Value	Value range	CRI	Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
NH2020S-EL-12W	White	6500K	6000~7000K	>80	719	60
	White	5000K	4800~5300K	>80	719	60
	White	4000K	3800~4150K	>80	719	60
	White	3000K	2950~3150K	>80	685	57
	White	2700K	2650~2850K	>80	651	54
	White	6500K	6000~7000K	>90	625	52
	White	5000K	4800~5300K	>90	625	52
	White	4000K	3800~4150K	>90	625	52
	White	3000K	2950~3150K	>90	596	50
	White	2700K	2650~2850K	>90	566	47
NH2020S-EL-9W	White	6500K	6000~7000K	>80	551	61
	White	5000K	4800~5300K	>80	551	61
	White	4000K	3800~4150K	>80	551	61
	White	3000K	2950~3150K	>80	525	58
	White	2700K	2650~2850K	>80	499	55
	White	6500K	6000~7000K	>90	479	53
	White	5000K	4800~5300K	>90	479	53
	White	4000K	3800~4150K	>90	479	53
	White	3000K	2950~3150K	>90	457	51
	White	2700K	2650~2850K	>90	434	48
NH2020S-EL-6W	White	6500K	6000~7000K	>80	368	61
	White	5000K	4800~5300K	>80	368	61
	White	4000K	3800~4150K	>80	368	61
	White	3000K	2950~3150K	>80	350	58
	White	2700K	2650~2850K	>80	333	55
	White	6500K	6000~7000K	>90	320	53
	White	5000K	4800~5300K	>90	320	53
	White	4000K	3800~4150K	>90	320	53
NH2020S-EL-4W	White	3000K	2950~3150K	>90	304	51
	White	2700K	2650~2850K	>90	289	48
	White	6500K	6000~7000K	>80	252	63
	White	5000K	4800~5300K	>80	252	63
	White	4000K	3800~4150K	>80	252	63
	White	3000K	2950~3150K	>80	240	60
	White	2700K	2650~2850K	>80	228	57
	White	6500K	6000~7000K	>90	219	55
	White	5000K	4800~5300K	>90	219	55
	White	4000K	3800~4150K	>90	219	55
