NV2020T EL The Extra-long LED flexible neon solution

Top bending and Top lighting,Enhanced 2835 LED inside,Dual-color silicone extrusion ,UV and yellowish resistant,IP67 and salt-mist proof,Max. 50 meters length for single power-in,L70B50 > 50,000hrs,UL 94 V-0,Easy installation and re-connect accessories,Min. bending radius 20cm

Feature

Top bending and Top lighting

Enhanced 2835 LED inside

Dual-color silicone extrusion

UV and yellowish resistant

IP67 and salt-mist proof

Max. 50 meters length for single power-in

L70B50 > 50,000hrs

UL 94 V-0

Easy installation and re-connect accessories

Min. bending radius 20cm

Application

High-rise Building & Large Bridge Lighting Project

Long distance linear lighting or cove lighting

Ships, boats and trucks outline lighting

Bathroom, spa room lighting

Dimensions and Weight

Notes:

1.Unit: mm

Environmental and Application Conditions

Ambient temperature range (TA on free air)	-40℃ ~ +55℃
Operating (case) temperature range (TC)	-40℃ ~ +65℃
Storage temperature range	-40℃ ~ +85℃
IP rating	IP67
ESD protection	Contact 4KV, Air 8KV

Electrical parameters

Item	NV2020T-EL-12W	NV2020T-EL-9W	NV2020T-EL-6W	NV2020T-EL-4W
Supply voltage range (Vdc)	48.0 ± 1.0	48.0 ± 1.0	48.0 ± 1.0	48.0 ± 1.0
Typ. Power per meter (W)	12	9	6	4
Power range per meter (W)	10.8~13.2	8.1~9.9	5.4~6.6	3.6~4.4
Max. length for single end power-in (m)	34	40	50	50
LED qty per meter (pcs)	130	130	130	130
Cutting unit length (mm)	100	100	100	100

Optical parameters

Part No.	Colorimetric Parameters				Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
Part No.	Color	Value	Value range	CRI	Typ. Flux (lm/m)	Typ. Efficacy (lm/W)
NV2020T-EL-12W	White	6500K	6000~7000K	>80	819	68
	White	5000K	4800~5300K	>80	819	68
	White	4000K	3800~4150K	>80	819	68
	White	3000K	2950~3150K	>80	780	65
	White	2700K	2650~2850K	>80	741	62
	White	6500K	6000~7000K	>90	712	59
	White	5000K	4800~5300K	>90	712	59
	White	4000K	3800~4150K	>90	712	59
	White	3000K	2950~3150K	>90	678	57
	White	2700K	2650~2850K	>90	644	54
NV2020T-EL-9W	White	6500K	6000~7000K	>80	625	69
	White	5000K	4800~5300K	>80	625	69
	White	4000K	3800~4150K	>80	625	69
	White	3000K	2950~3150K	>80	595	66
	White	2700K	2650~2850K	>80	565	63
	White	6500K	6000~7000K	>90	543	60
	White	5000K	4800~5300K	>90	543	60
	White	4000K	3800~4150K	>90	543	60
	White	3000K	2950~3150K	>90	517	57
	White	2700K	2650~2850K	>90	492	55
NV2020T-EL-6W	White	6500K	6000~7000K	>80	415	69
	White	5000K	4800~5300K	>80	415	69
	White	4000K	3800~4150K	>80	415	69
	White	3000K	2950~3150K	>80	395	66
	White	2700K	2650~2850K	>80	375	63
	White	6500K	6000~7000K	>90	361	60
	White	5000K	4800~5300K	>90	361	60
	White	4000K	3800~4150K	>90	361	60
NV2020T-EL-4W	White	4000K	3800~4150K	>90	361	60
	White	3000K	2950~3150K	>90	343	57
	White	2700K	2650~2850K	>90	326	54
	White	6500K	6000~7000K	>80	278	70
	White	5000K	4800~5300K	>80	278	70
	White	4000K	3800~4150K	>80	278	70
	White	3000K	2950~3150K	>80	265	66
	White	2700K	2650~2850K	>80	252	63
	White	6500K	6000~7000K	>90	242	60
	White	5000K	4800~5300K	>90	242	60

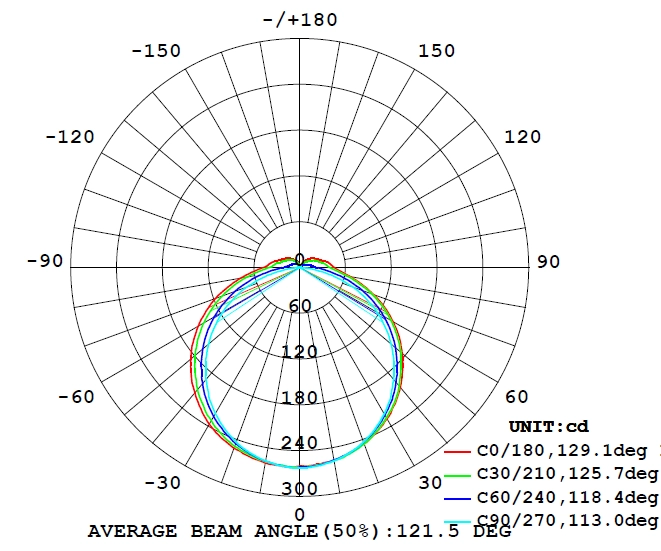

Optional Beam angles:

Connectors

IP67 power feed and end cap by injection

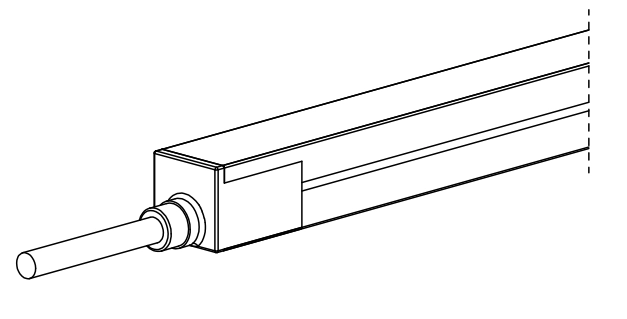

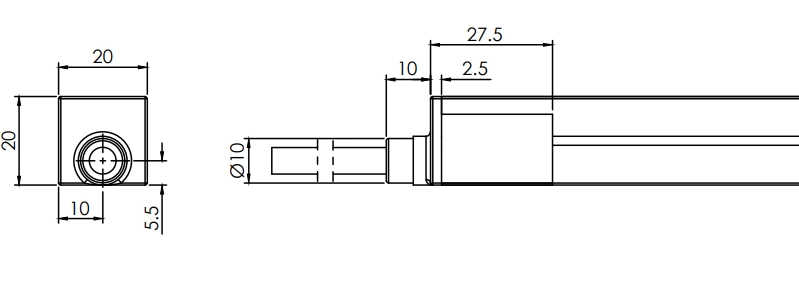

End feed

Bottom feed

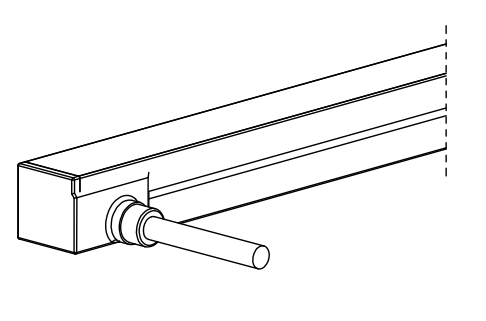

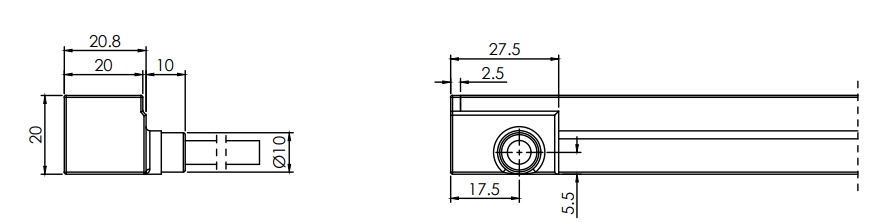

Side feed

Installation accessories

Type 1, AL Clip for for outdoor application (AL 50mm/pcs with 2 clips)

Type 2, 1meter AL EC profile for for outdoor application

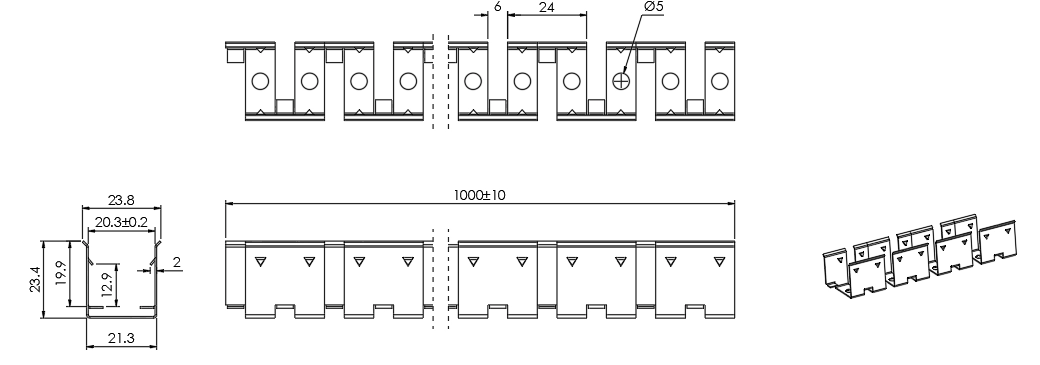

Type 3, Stainless steel chain
