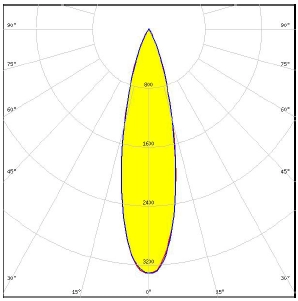

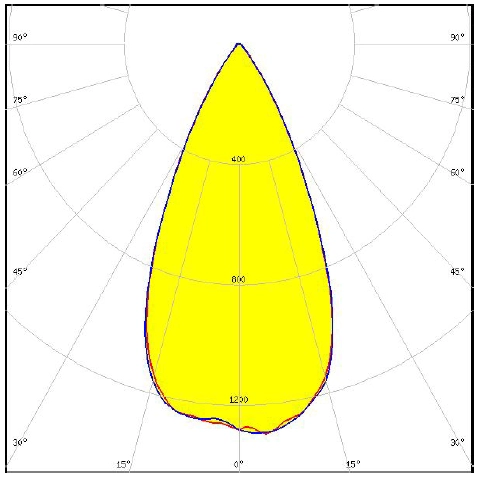

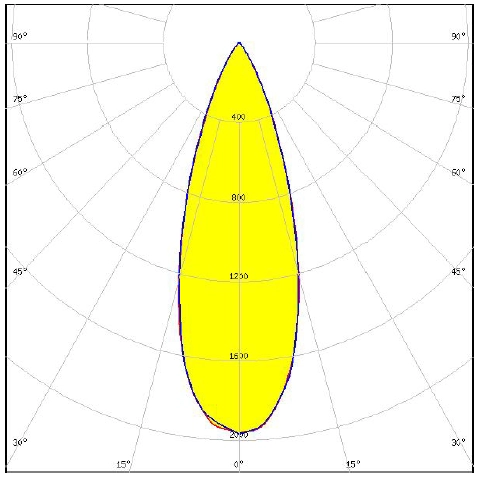

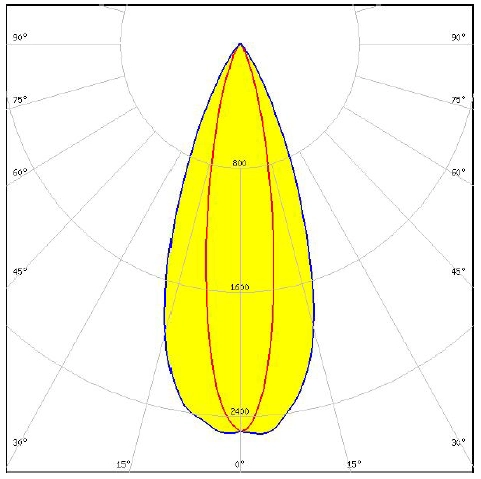

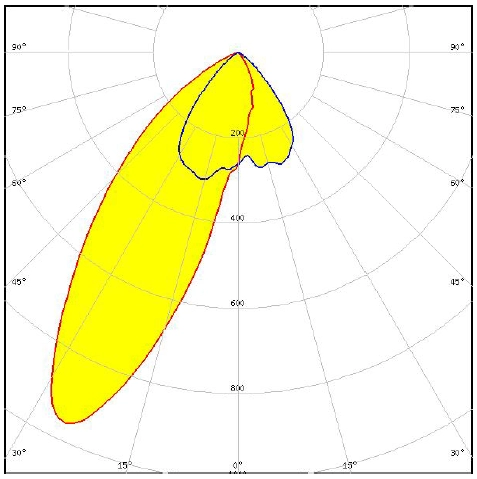

Optics by LEDiL DALINE-10 lens
AL housing for better heat dissipation
Enhance 2016 or CSP LED inside

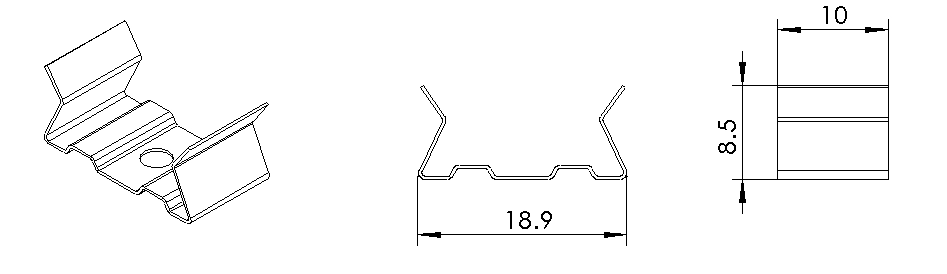

Steel clips for installation
Standard length 285mm/pcs
Max.10W/pcs, 77lm/W @4000K Ra90
Cabinet/shelf lighting
Indoor wall washer
Cove light, handrails etc
Miniature light systems
Premium architectural lighting
Wooden ceilings and acoustic
Notes:
1.Unit: mm
2.L=285mm or 565mm or 845mm or 1125mm
| Ambient temperature range (Ta on free air) | -40℃ ~ +55℃ |
| Operating (case) temperature range (Tc) | -40℃ ~ +65℃ |
| Storage temperature range | -40℃ ~ +85℃ |
| IP rating | IP20 |
| Item | PV1516L-DALINE 10 CV | PV1516L-DALINE 10 CC |
| Driver model | Constant voltage | Constant current |
| Supply voltage range | 24.0 ± 1.0 VDC | 30~38 VDC |
| Supply Current range | Typ. 416mA | 300mA |
| Power range | Typ. 10W | Typ. 10W |
| ESD protection | Contact 4KV, Air 8KV | Contact 4KV, Air 8KV |
| LED Qty | 24 LEDs/m | 24 LEDs/m |
| Part No. | Colorimetric Parameters | Typ. Lumen (lm) | CRI | |
|---|---|---|---|---|
| Color | Value | |||
| PV1516L-DALINE 10 CV | White | 6500K | 550 | 90 |
| White | 4000K | 550 | 90 | |
| White | 3000K | 520 | 90 | |
| White | 2700K | 495 | 90 | |
| PV1516L-DALINE 10 CC | White | 6500K | 770 | 90 |
| White | 4000K | 770 | 90 | |
| White | 3000K | 730 | 90 | |
| White | 2700K | 695 | 90 | |
